Used White Liquor Filtration System. Consisting of an Andritz LimeWhite Model WLF3709 Rotary, pressurized precoat disc

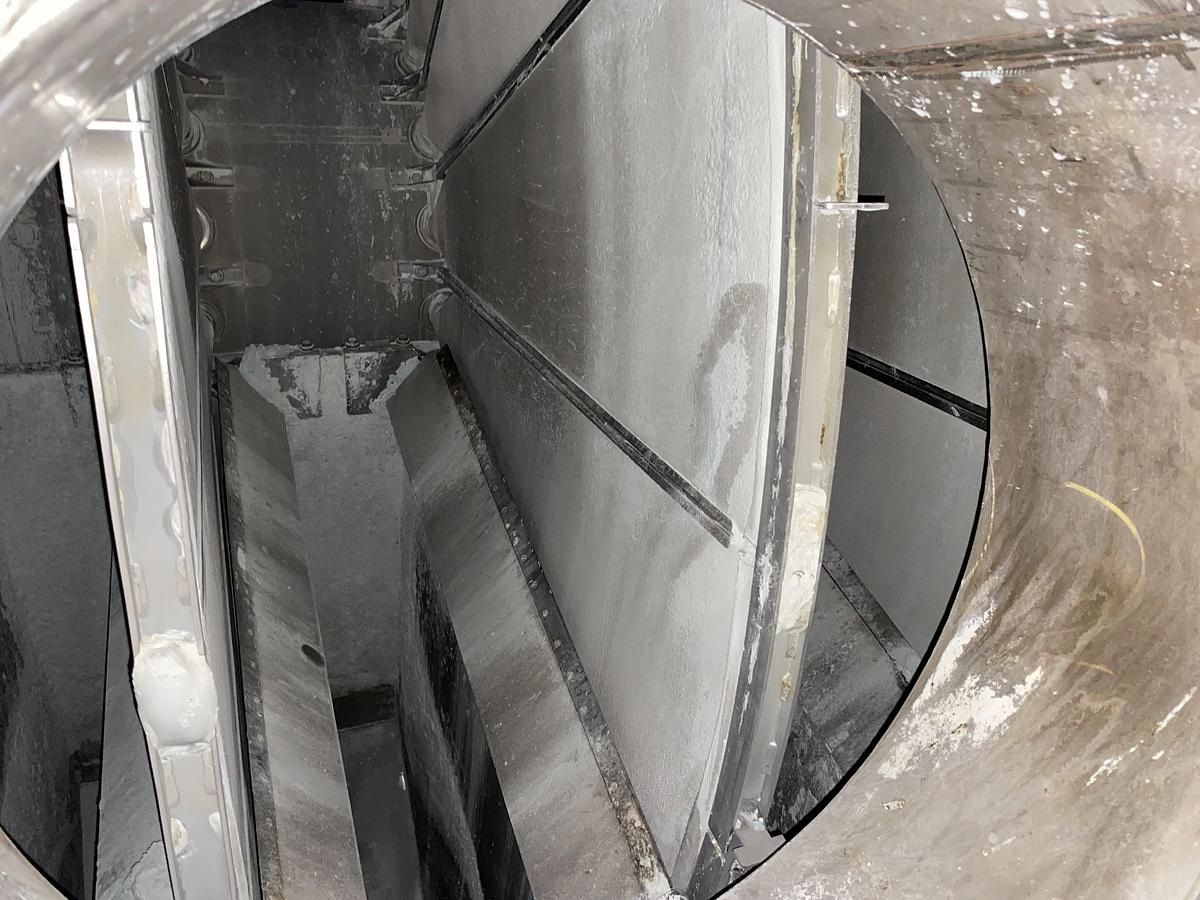

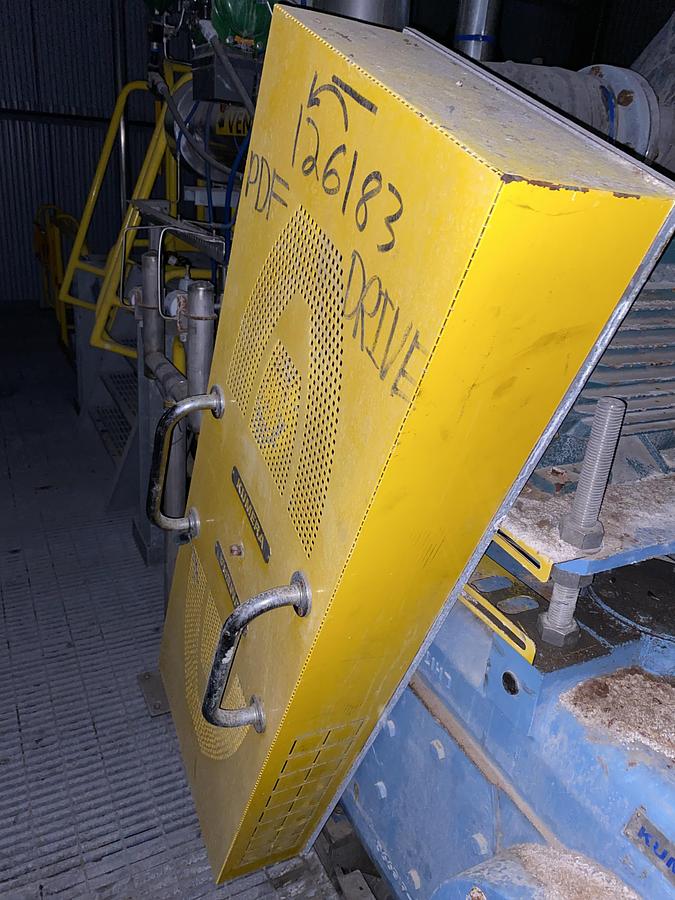

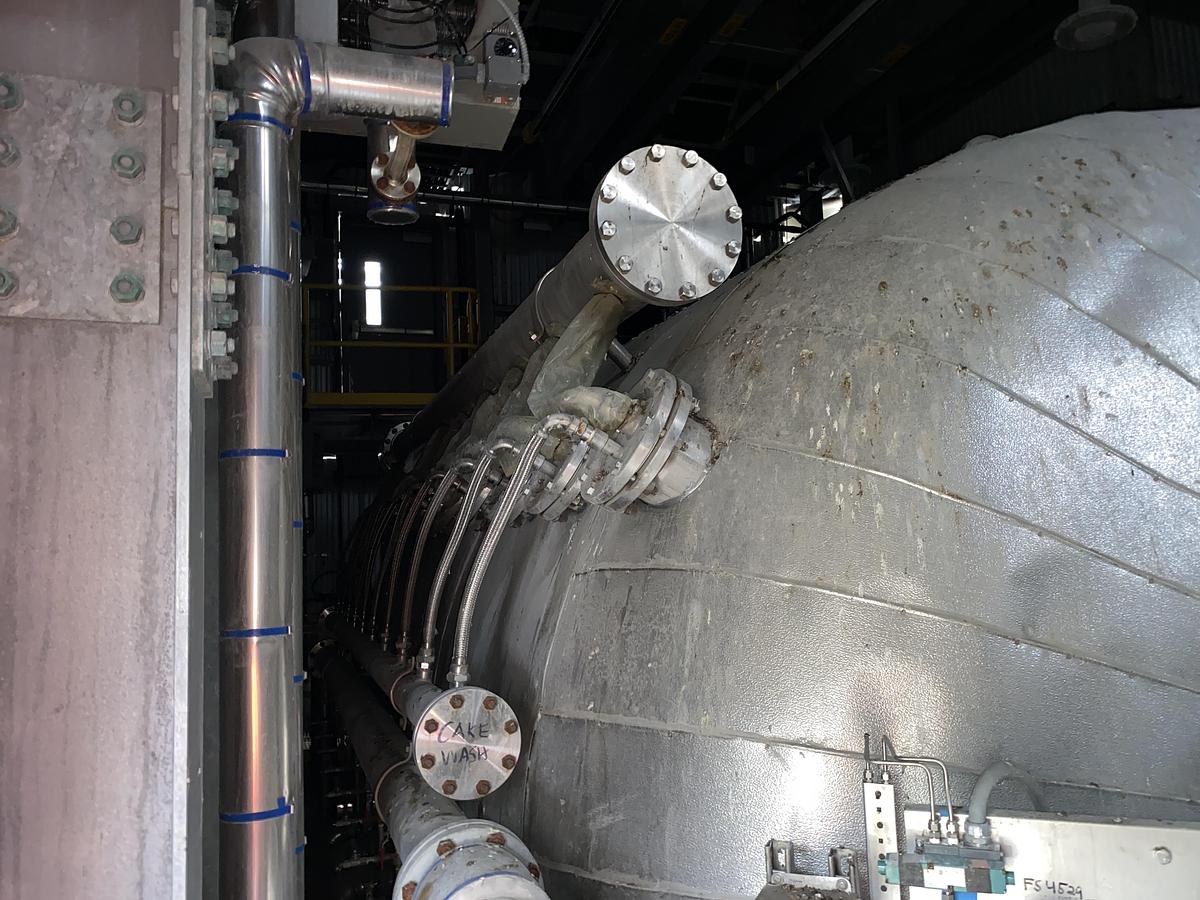

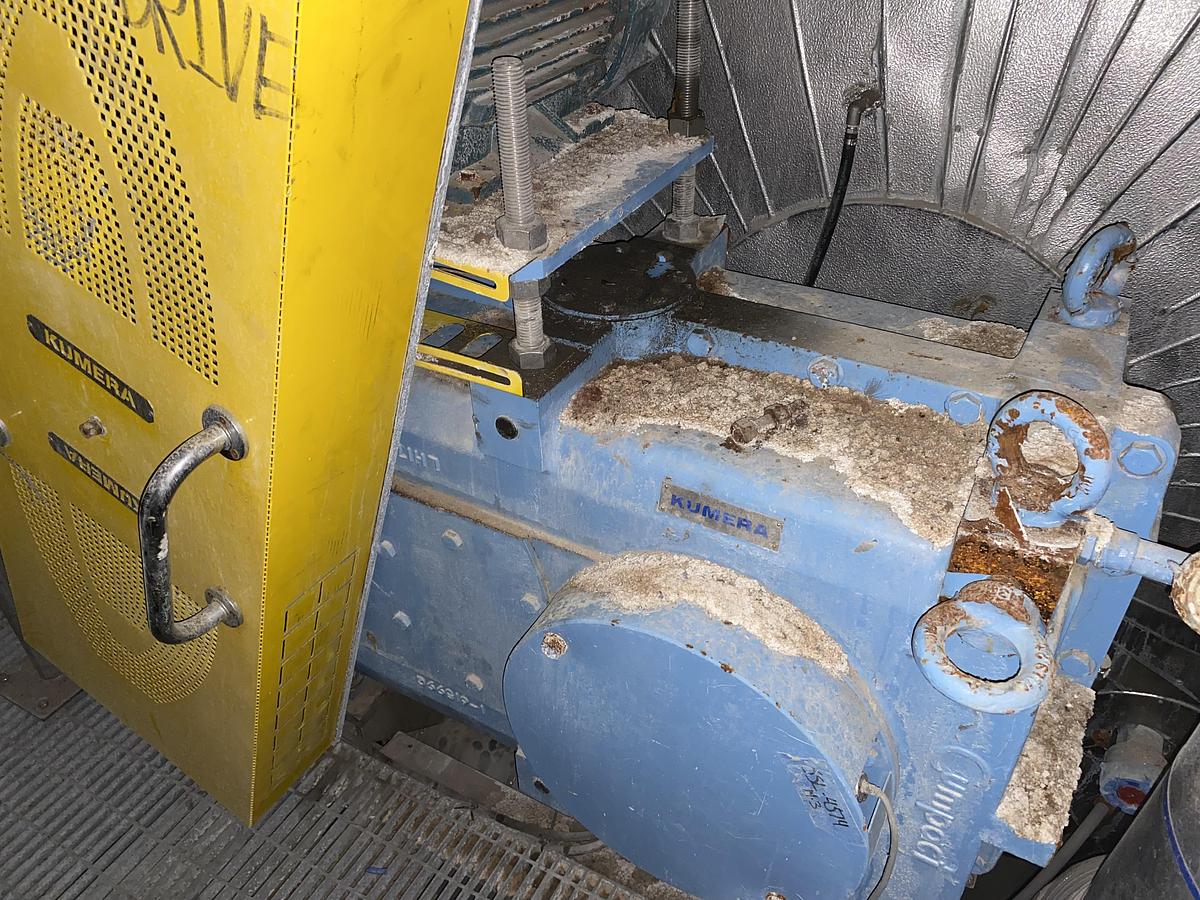

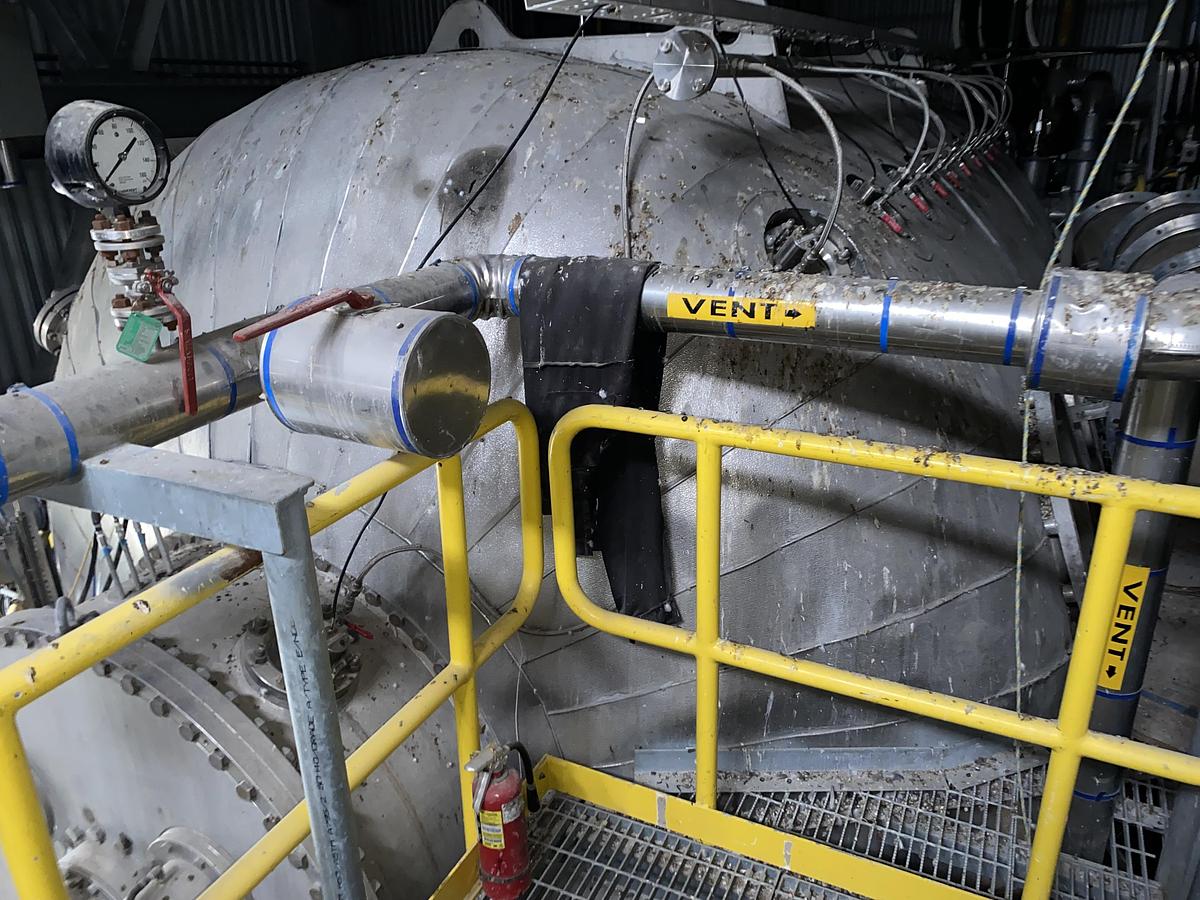

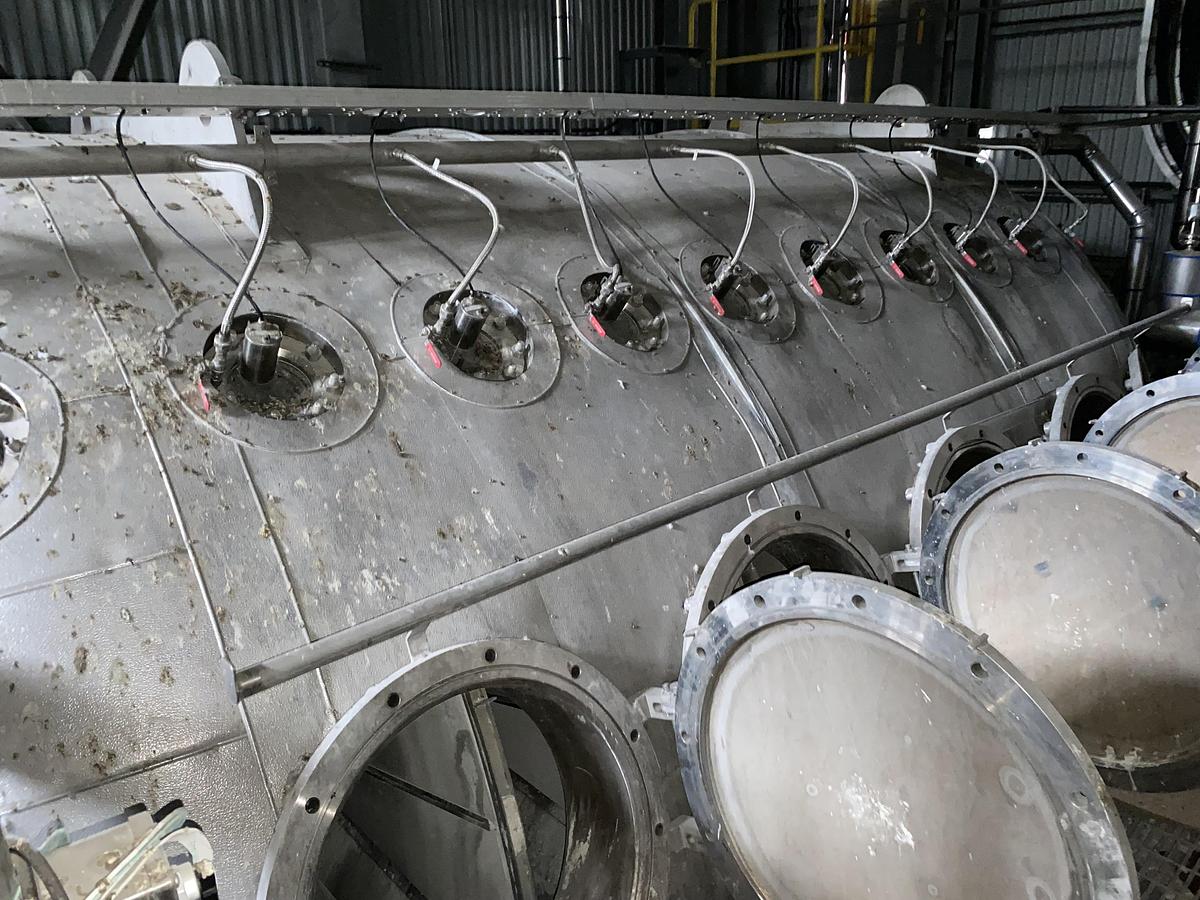

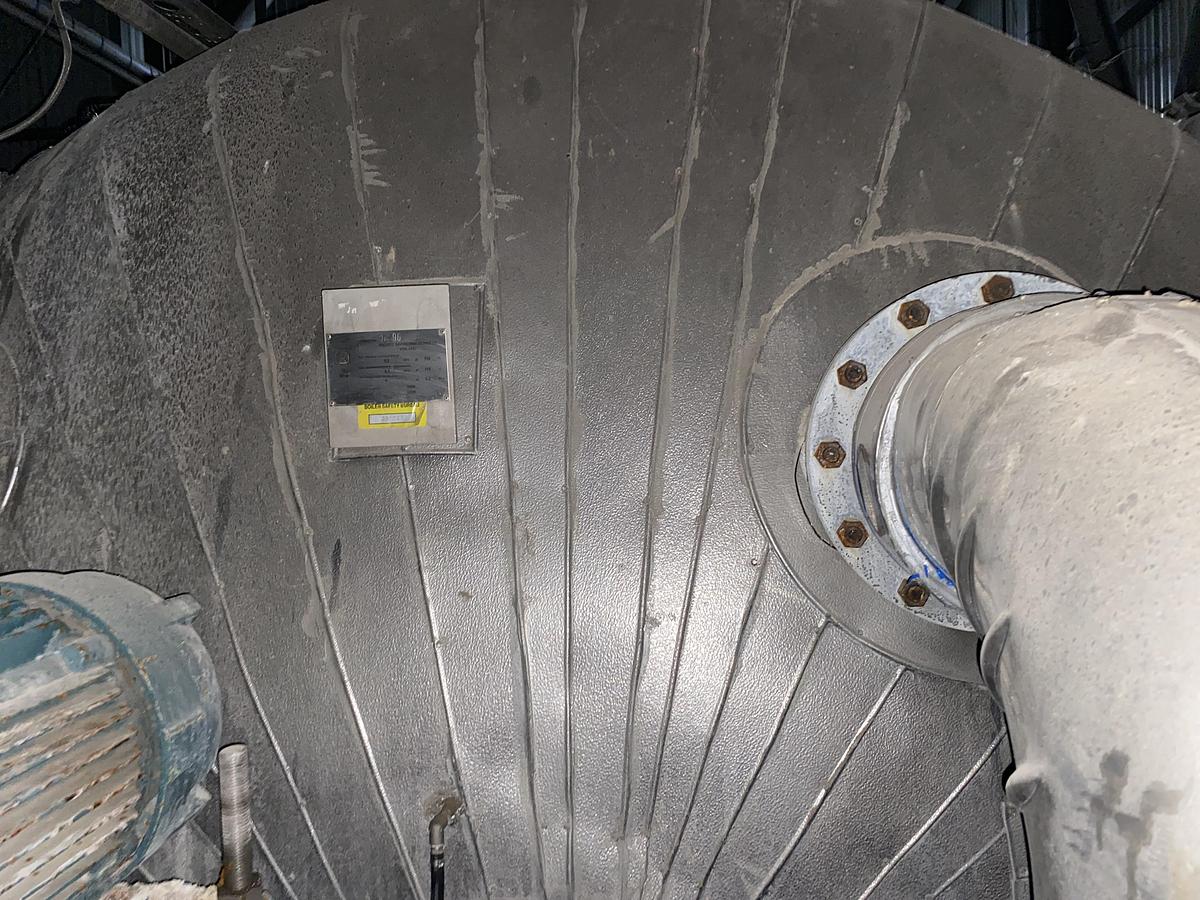

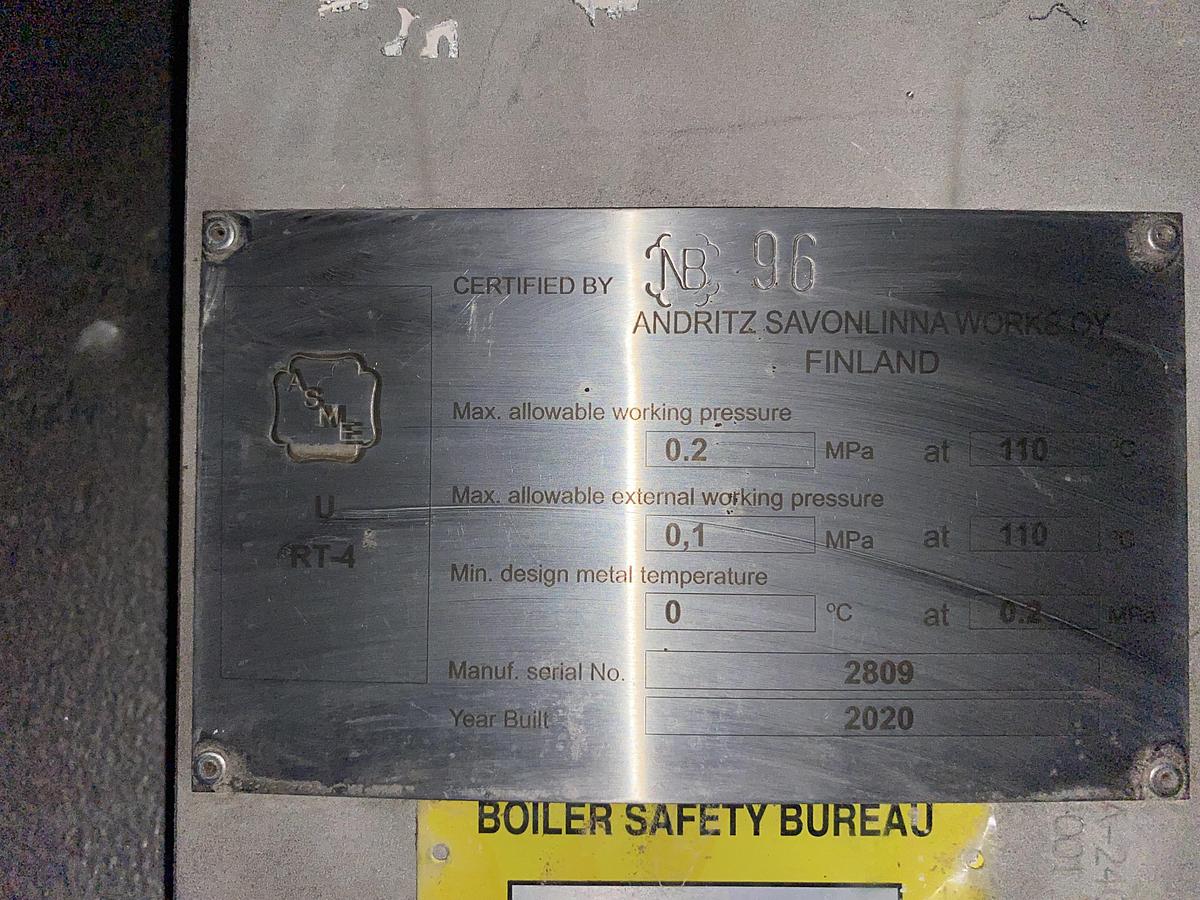

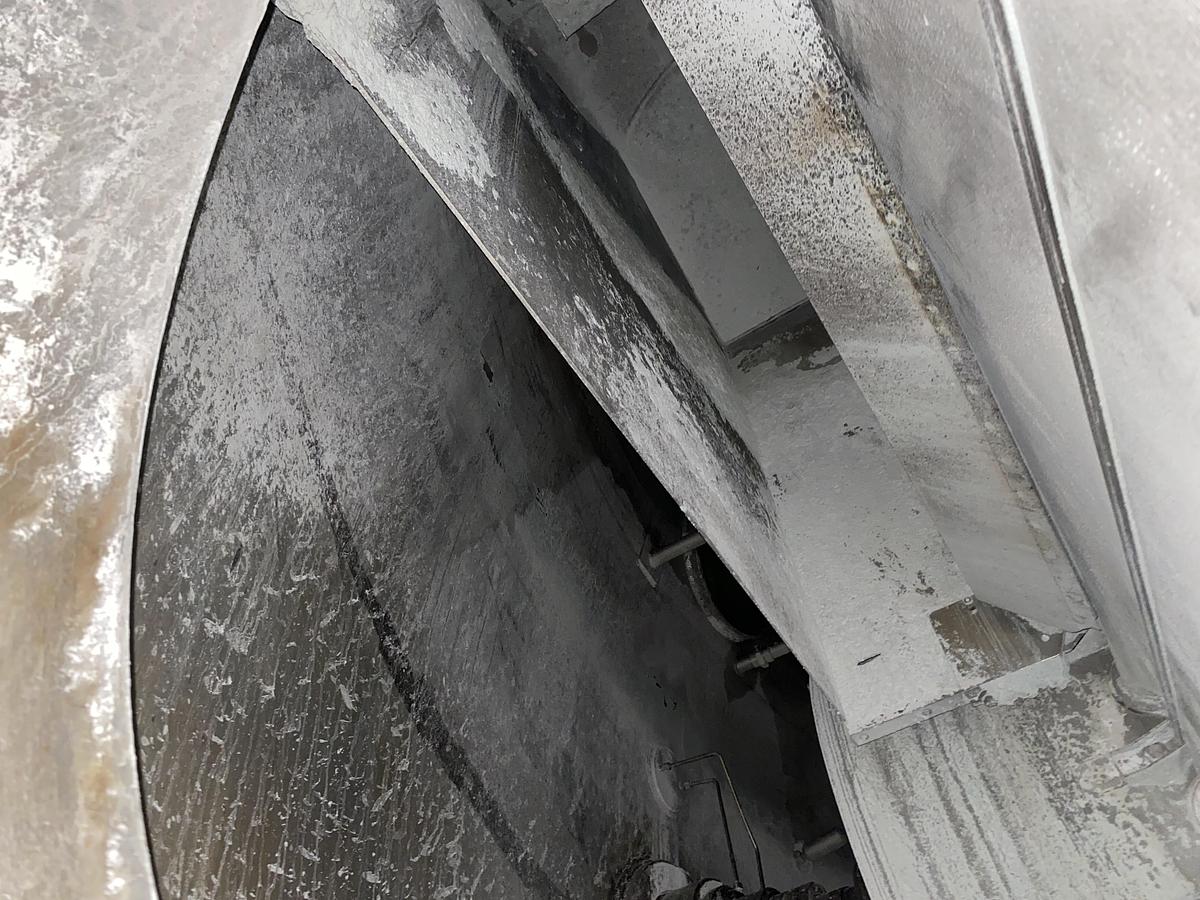

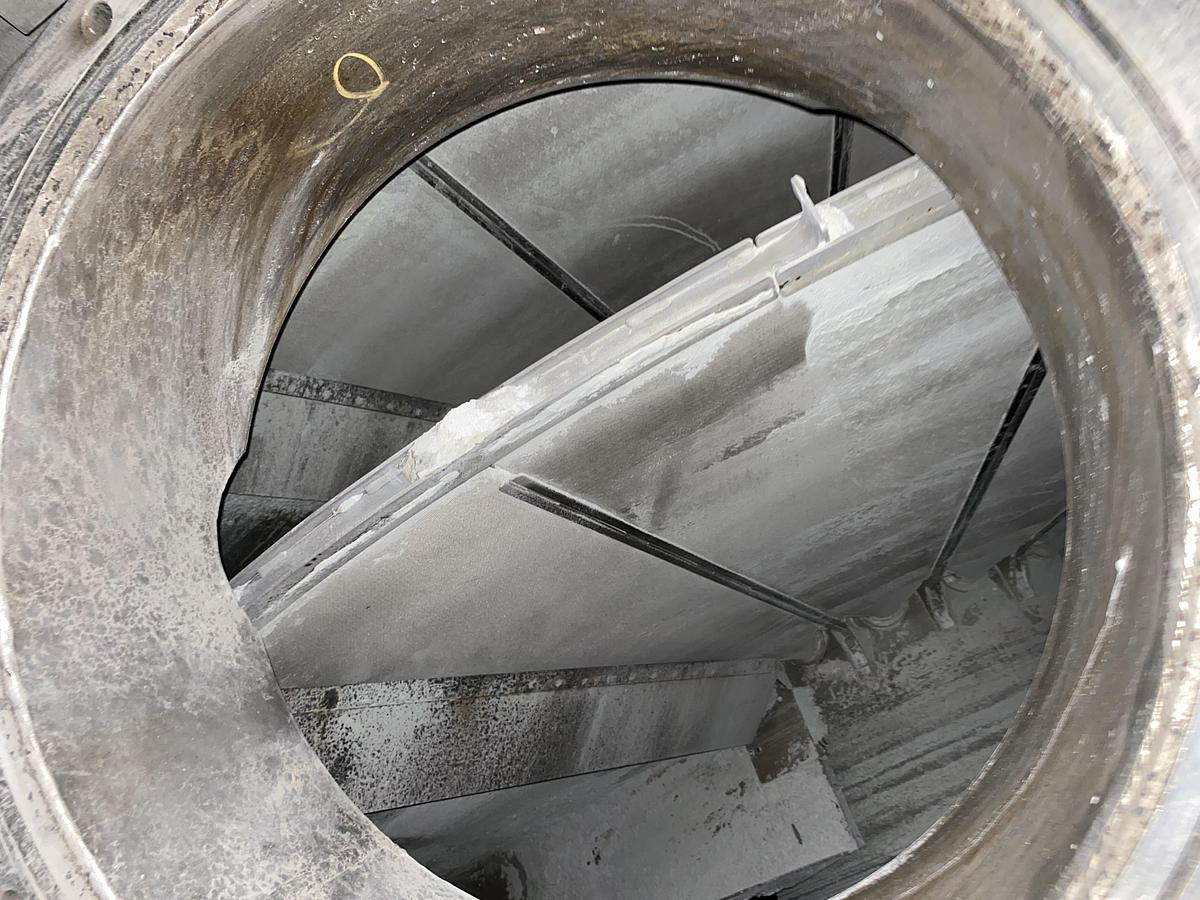

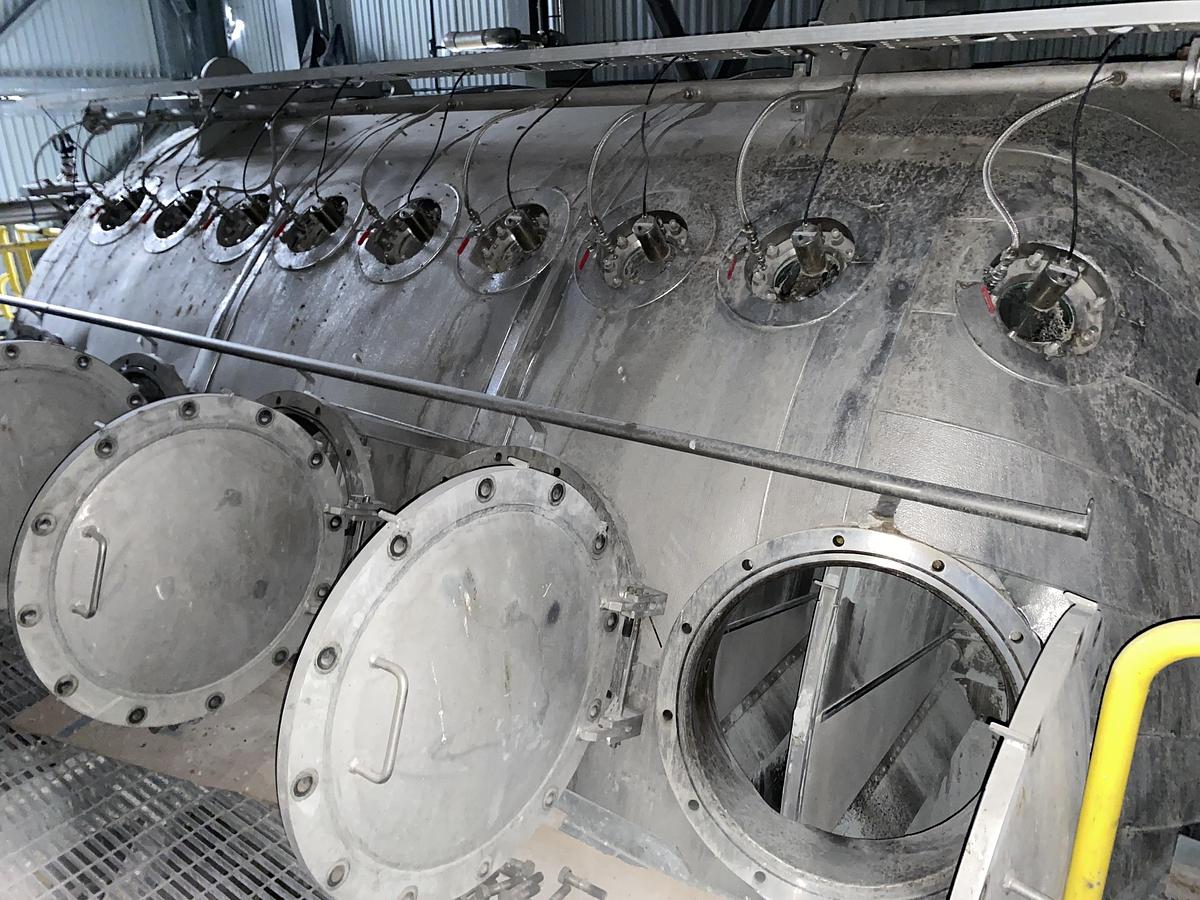

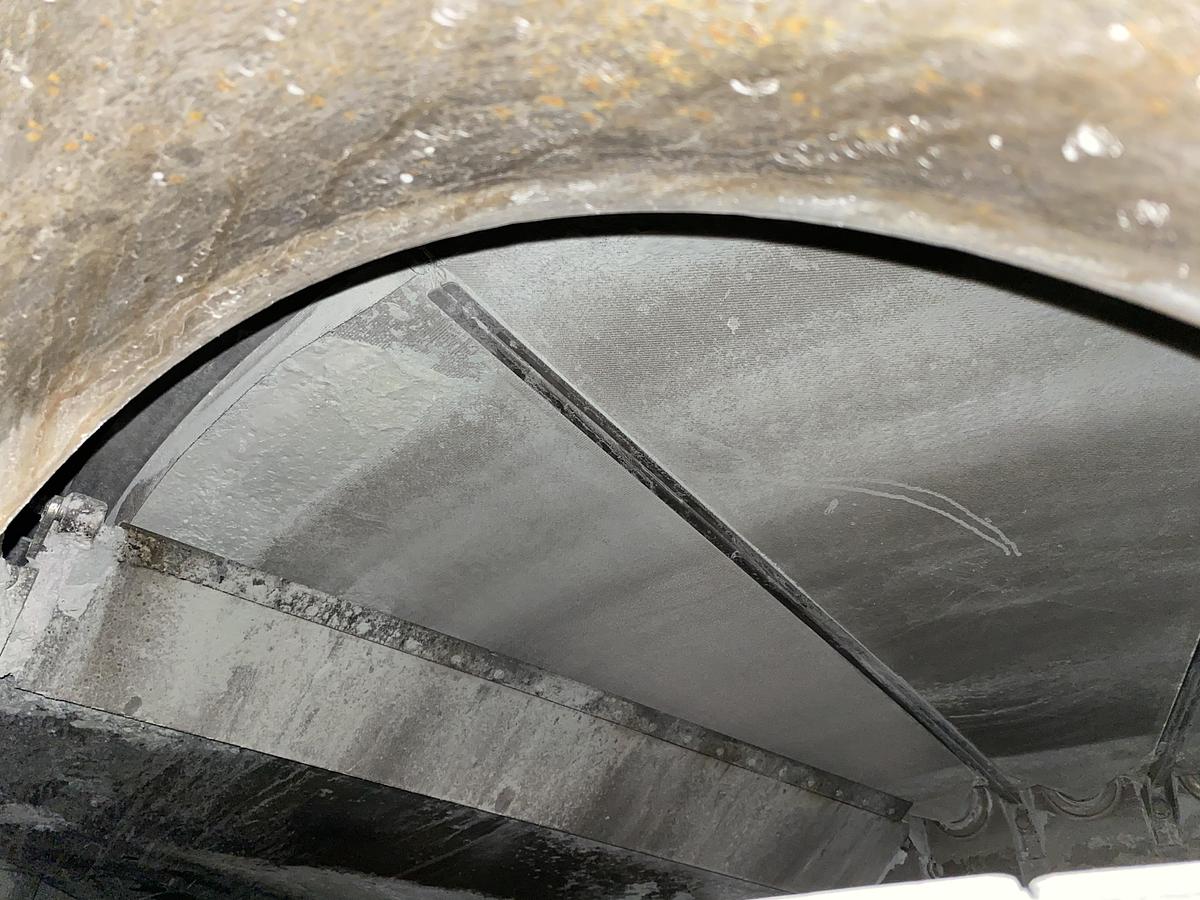

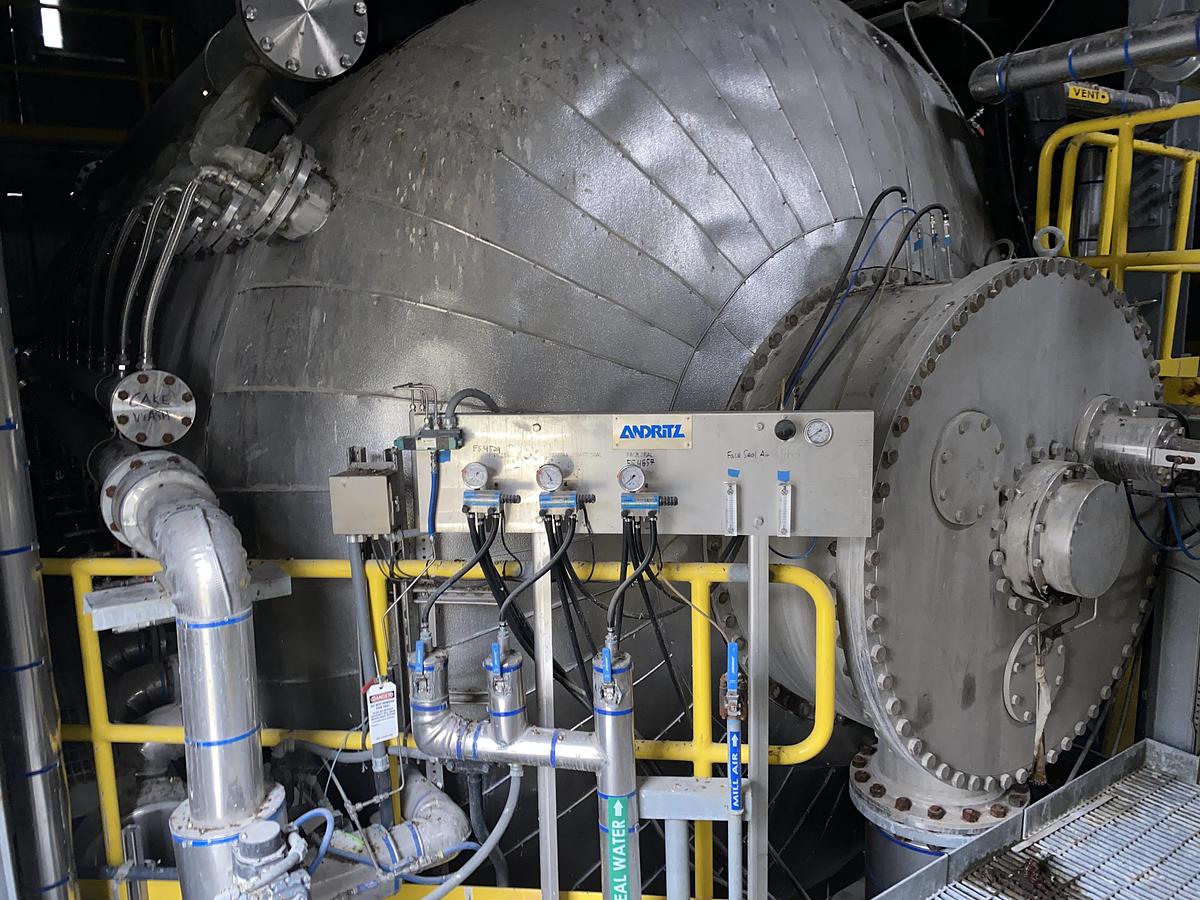

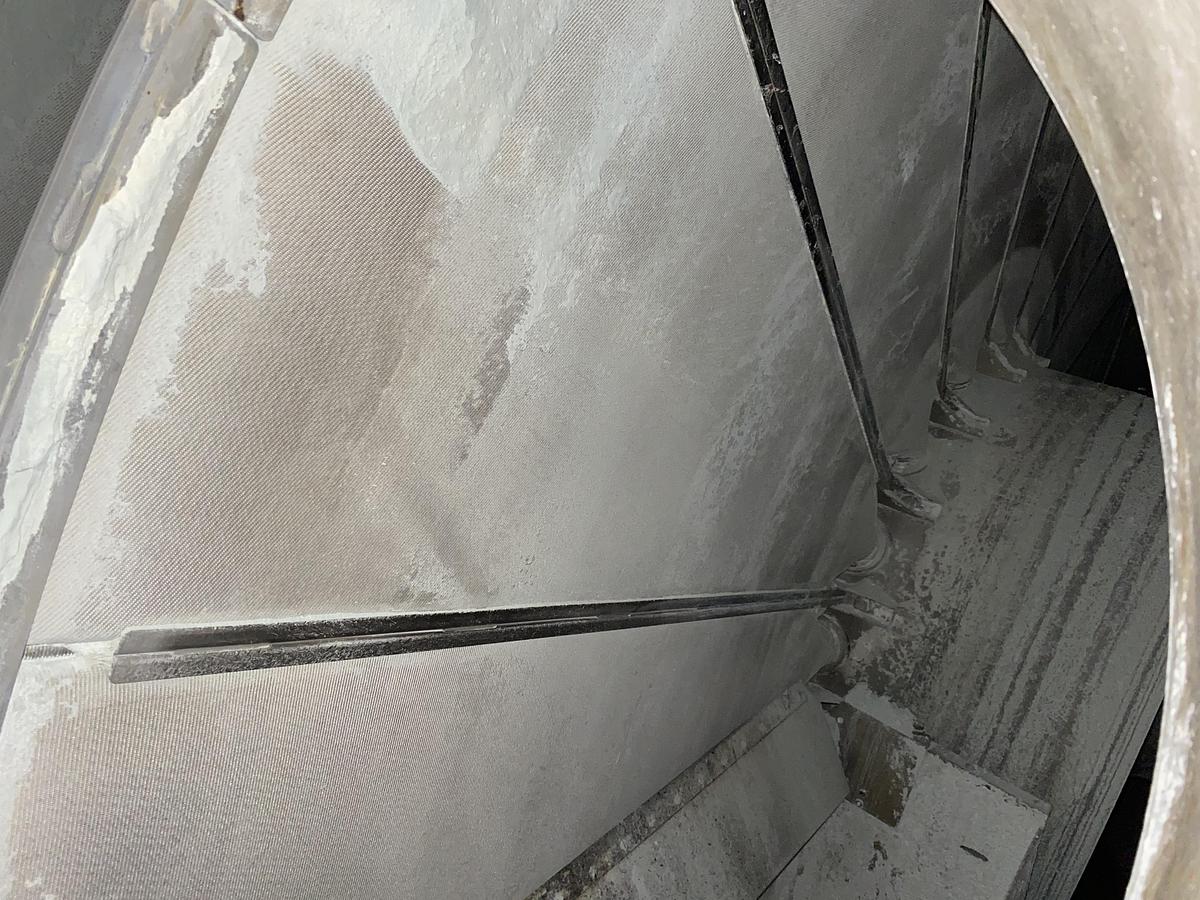

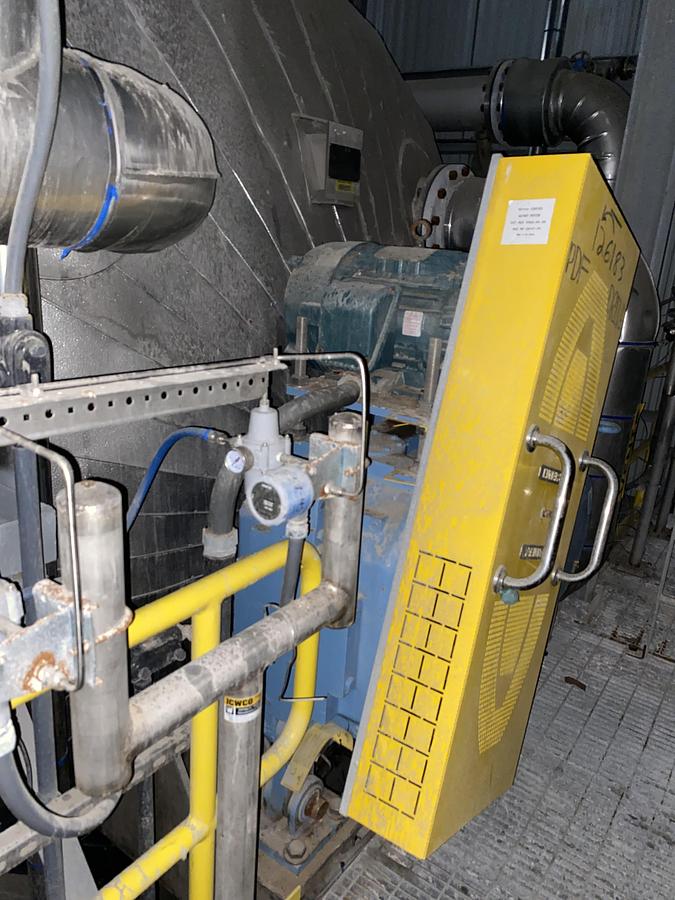

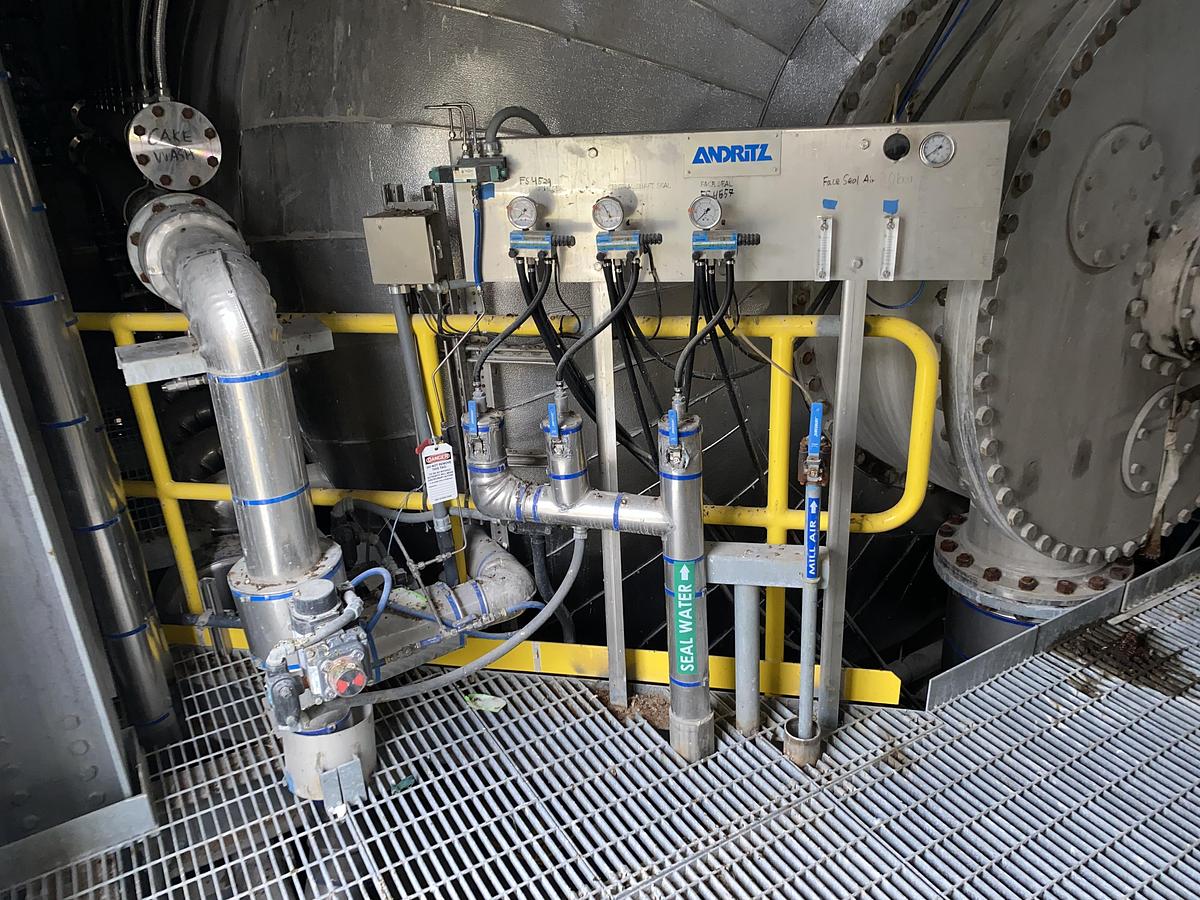

Used White Liquor Filtration System. Consisting of an Andritz LimeWhite Model WLF3709 Rotary, pressurized precoat disc. Disc diameter 3700mm, Number of discs 9, total filtration area 168.3 cu. Meter. Rotation 0.5-3.0 r/min. Equipment size 3700mm X 8076mm length. Design conditions 2.0/-1 bar at 100 C @ 1.2 specific gravity. Driven through gear drive and v-belt powered by 20 HP motor. Filter comprises pressure vessel with integrated lime mud slurry vat and mixing agitator, manholes and sight glasses, center shaft, antifriction center shaft bearing, mechanical seal, disc sectors, automatic advancing scraper, filtrate outlet valve and pneumatic blow-off device, air lift pumps, filter cloths, cake and cloth wash pipes, drive and motor base, seal water units for seals and filtrate valve. All wetted parts are either 304L/316L or Duplex 2205. NB# 96, S/N 2809. Built 2020. Sulzer Model XL500 filtration compressor rated 1153.0 l/s. with 350HP Motor, Andritz Model 11-K (1100mm diameter X 2300mm straight side) 1.68 cu. meter 304 L filtration separator rated 2.0/-1 bar @ 100 C, Sulzer model XL80 booster compressor rated 200.0 l/s with 75 HP motor. Andritz Model 6-K (500mm diameter X 1350 mm straight side) 0.18 cu. meter 304L booster separator. rated 2.0/-1 bar @ 110 C. Model DWT2525 (2500mm X 2500mm straight side) 10.8 cu. meter 304L dilution water tank rated 300/-50 mm water @ 110 C. Andritz Model FV2230 (2200mm diameter X 3000mm high straight side) 304L white liquor filtrate vessel rated 2.0/-1 bar @ 110 C. Model ST1220 (1200mm diameter X 2000mm high straight side)2.2 cu. meter 304L shrink tank rated 300/-50 mm water @ 110 C. Model AT2322 (2385mm diameter X 2250mm high straight side) 9.1 cu. meter 316L Acid tank rated 300/-50mm water equipped with Sulzer (2) blade adjustable pitch, axial flow 304L agitator with gearbox, motor scoop, high speed coupling and coupling guard. FOB: Canton, NC
