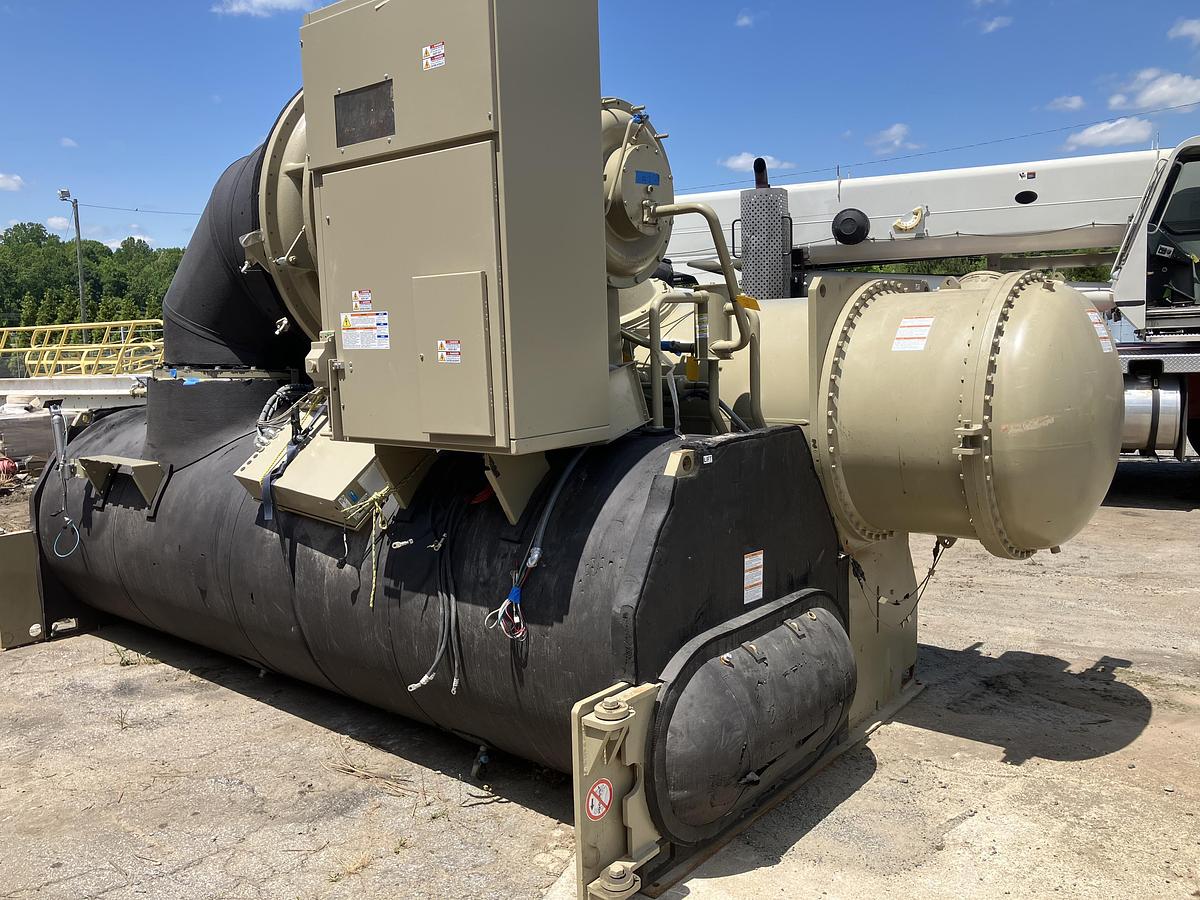

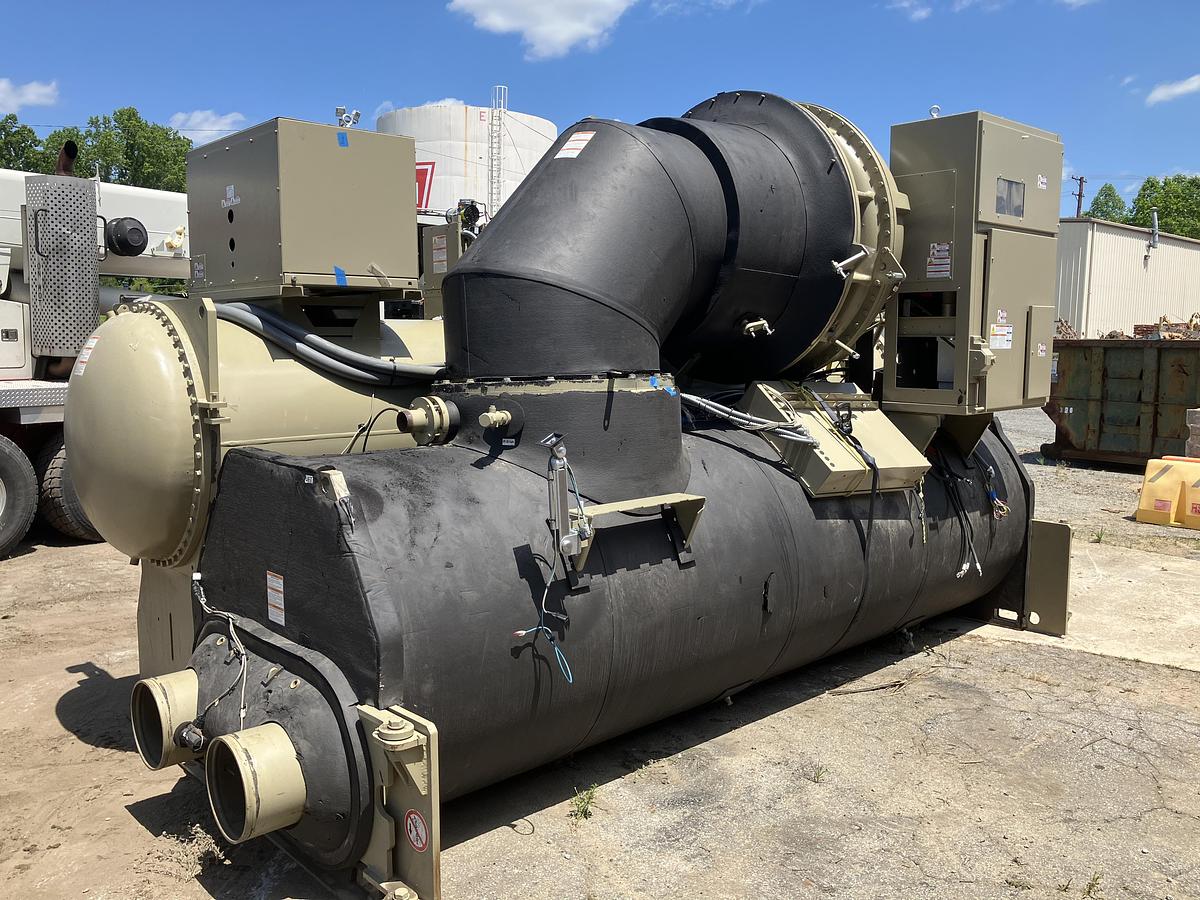

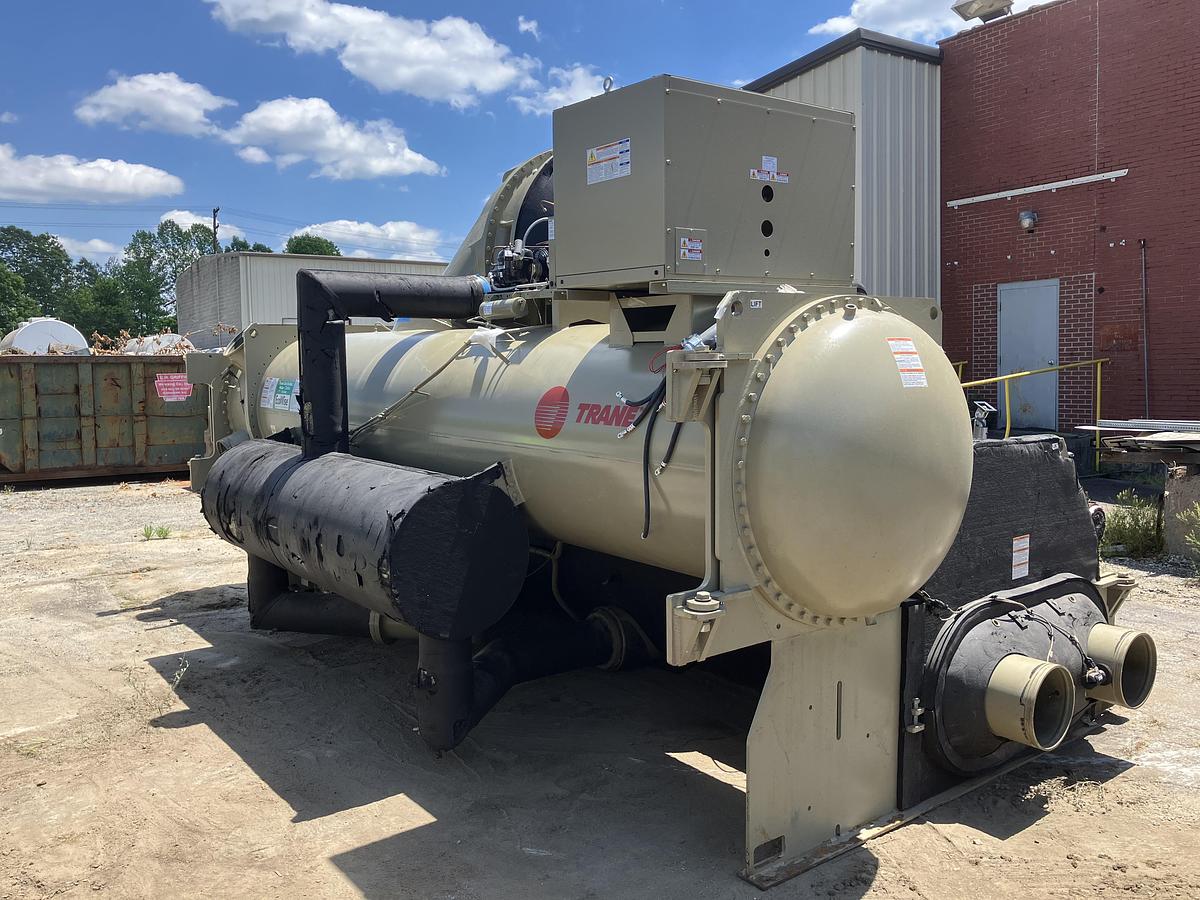

Unused Trane CVHF1300 1200 Ton Capacity Centrifugal liquid chiller

Location:Little Rock, AR

Description

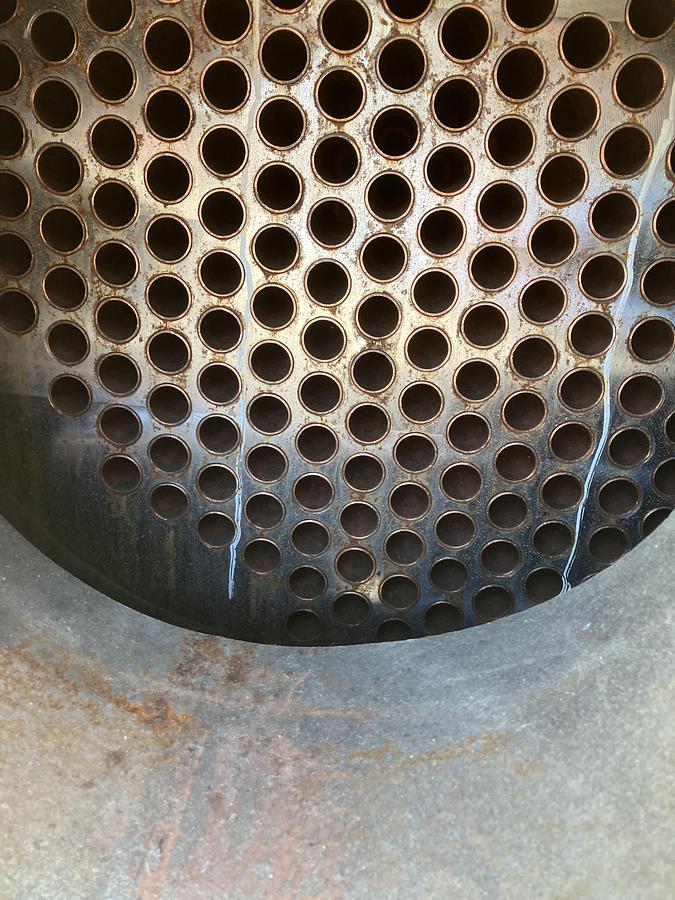

Unused Trane CVHF1300 1200 Ton Capacity Centrifugal liquid chiller. Model CVHF130N15N0JECE1A0000000TC0G070L00000HA100BA, S/N L21H02350, Shop Order No. Q6C727C. Has 2 Stage compressor, with adaptivew controls. Incoming line hertz:60, Economizer: Single Stage standard, Standard cooling. Evaporator shell size: 142 long, Evaporator bundle size: 1600 nominal tons. Evaporator tubes: 1:00 inch micro intl enhanced cu low pressure tbg. Evaporator fluid type: Water. Standard waterbox construction with 2-pass. 150 PSIG, with victaulic connections. Condenser shell size: 142 long, Condenser bundle size: 1420 nominal tons, Condenser tubes: 1:00 inch internally enhanced copper. Condenser fluid type: Water. Marine waterbox construction with 2-pass. 150 PSIG, with victaulic connections. Currently unit is not charged, but will require R514 refrigerant. Unit built in 1-1-2021. Was installed in 1-26-2023 when is sustained damage to the front right mounting foot. A replacement unit ordered and installed thus why the unit was never run. Weight: 36,000#. FOB: Little Rock, AR.

Specifications

ManufacturerTrane
ModelCVHF130N15N0JECE1A0000000TC0G070L00000HA100BA
Year2021
ConditionNew
Stock NumberALEX0125-0001
