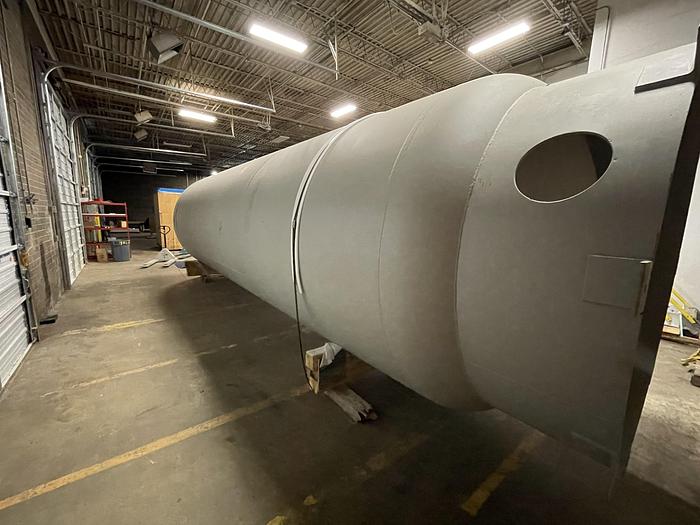

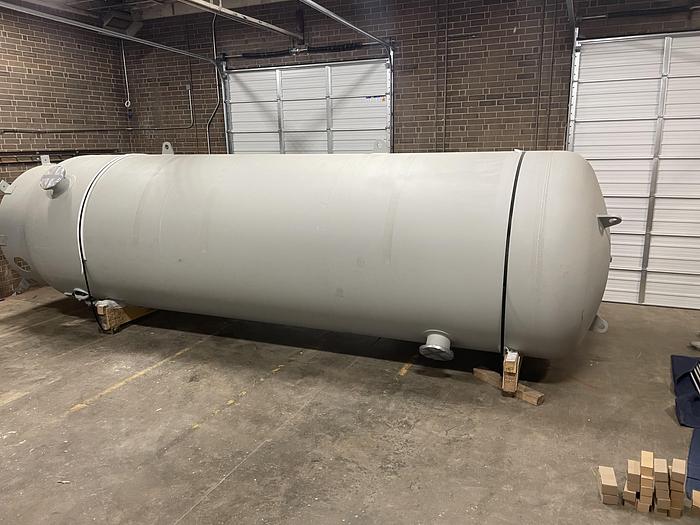

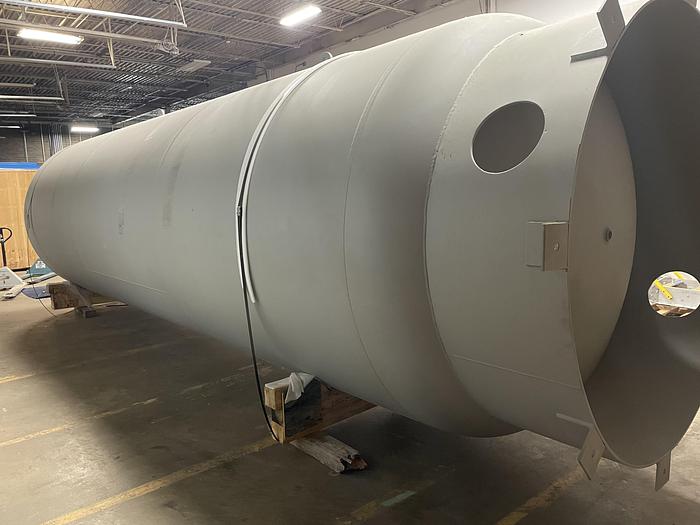

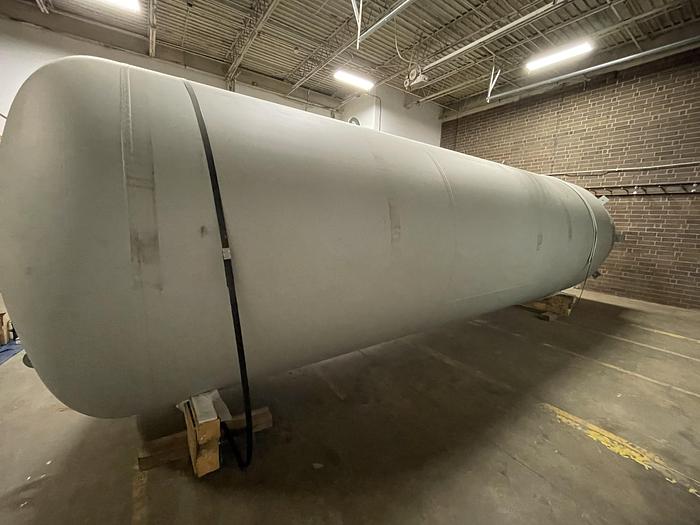

Unused Samuel Pressure Group 10,000 gallon vertical carbon steel pressure air receiver
Unused Samuel Pressure Group 10,000 gallon vertical carbon steel pressure air receiver
Location:North Carolina
orCall 252-378-4154
Description

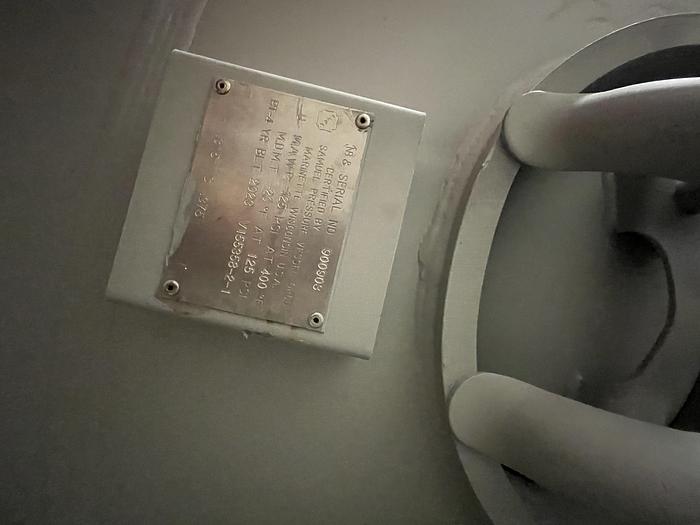

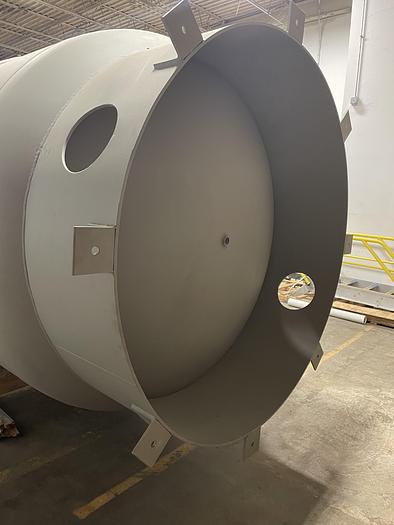

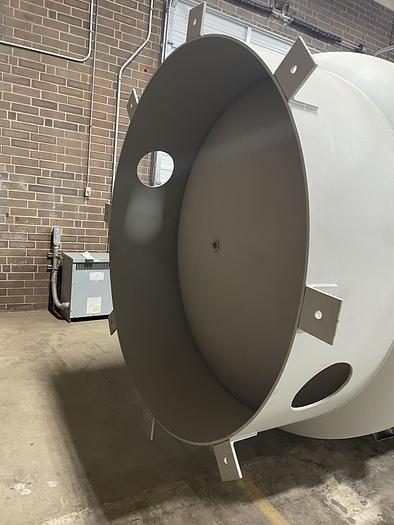

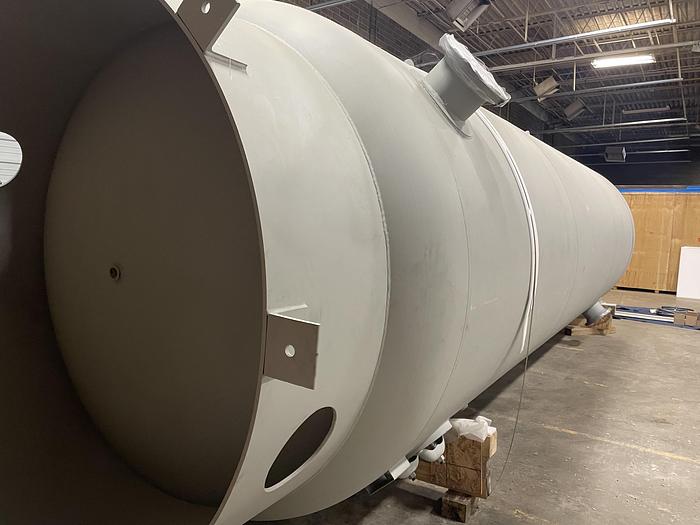

Unused Samuel Pressure Group 10,000 gallon vertical carbon steel pressure air receiver. 8' diameter X 23'-5" high straight side. Internal rated 125 PSI @ -20 to 400 F. Dished heads and mounted on a skirt. Top fittings: (1) 2" NPT. (1) 10" flanged top side inlet, (1) 10" flanged side bottom outlet. Side bottom has (1) 1", (1) 1.5" and (2) 2" NPT openings. Has (1) 12" X 16" side bottom manway. Shell: 0.375" thickness, Heads: 0.313" thickness. Outside finish is primed and inside finish is uncoated. Weight 13,180#. NB & S/N 900903 Overall shipping dimensions are 29' long X 8' wide X 9' tall. Tank was never installed. FOB: NC.
Specifications
Manufacturer | Samuel Pressure Group |
Model | V155358-1-1 |
Year | 2023 |
Condition | New |
Stock Number | SWIL0125-0003 |
