Used E-Pak 6 Head automatic pressure gravity filler
Used E-Pak 6 Head automatic pressure gravity filler
Location:Leland, NC
Description

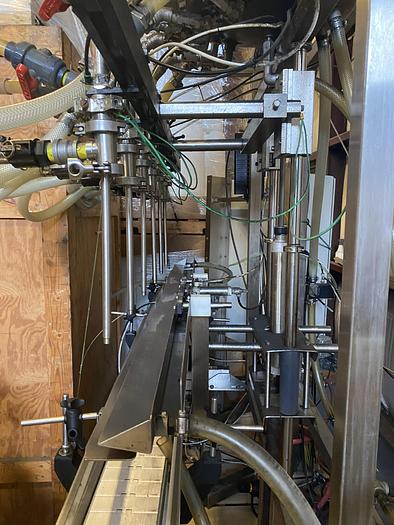

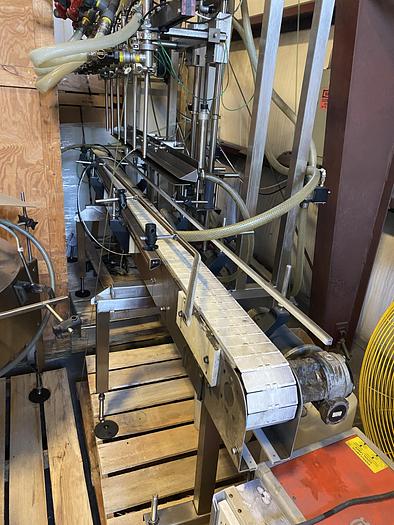

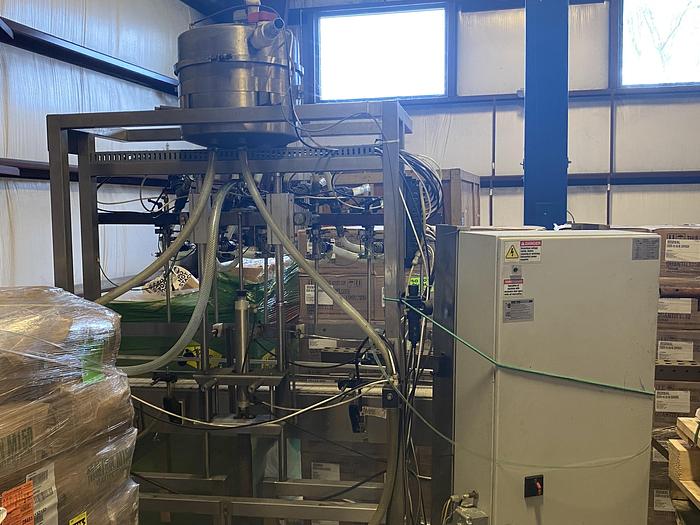

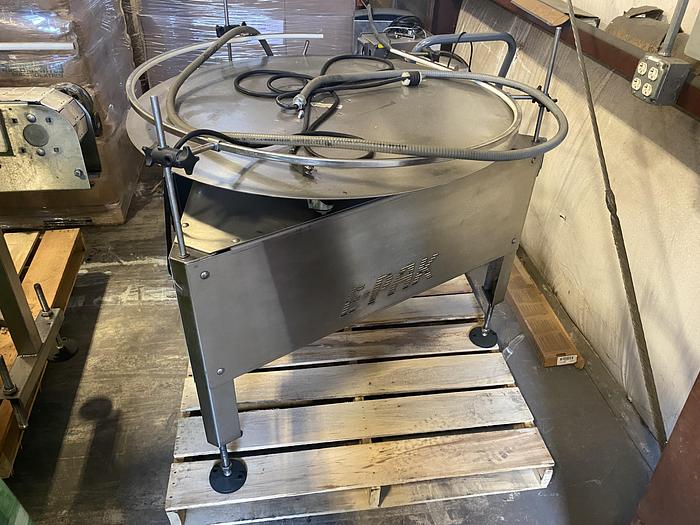

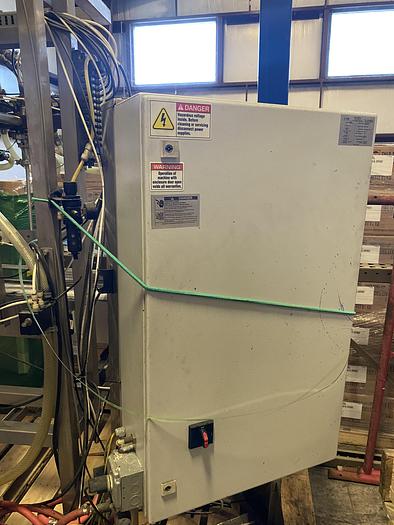

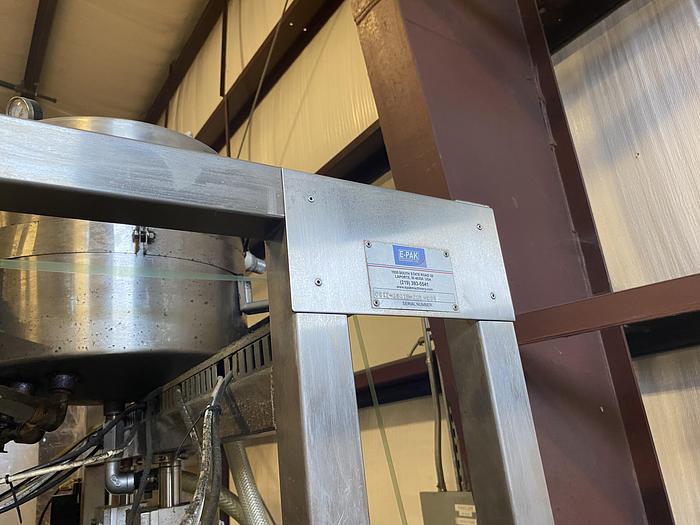

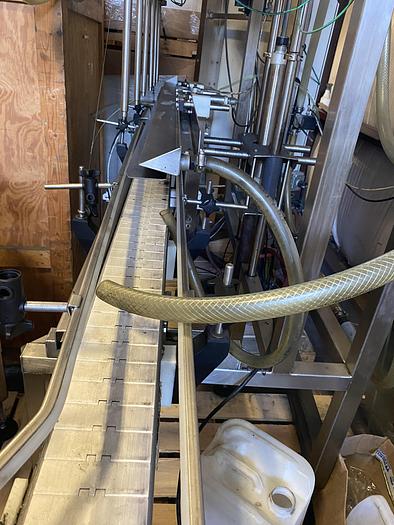

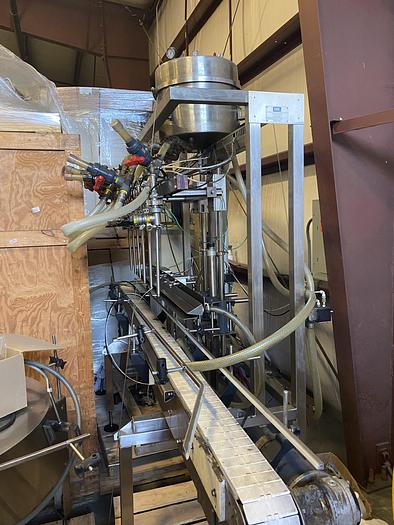

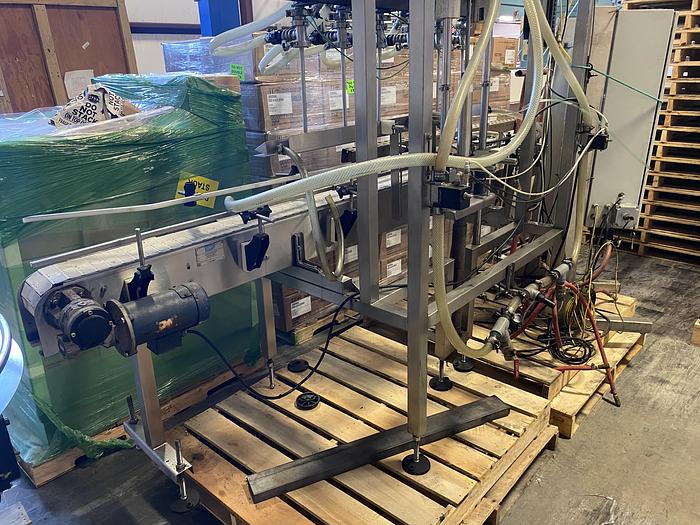

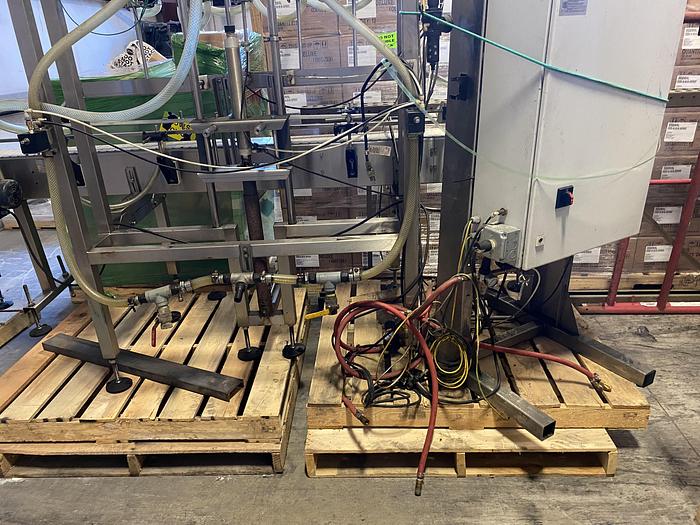

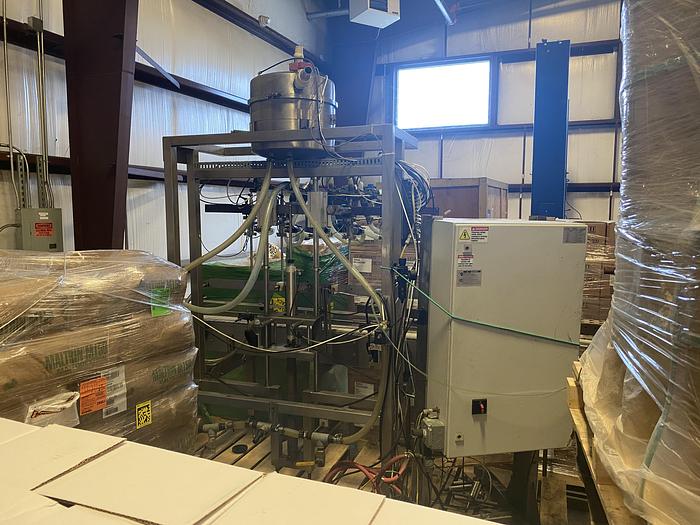

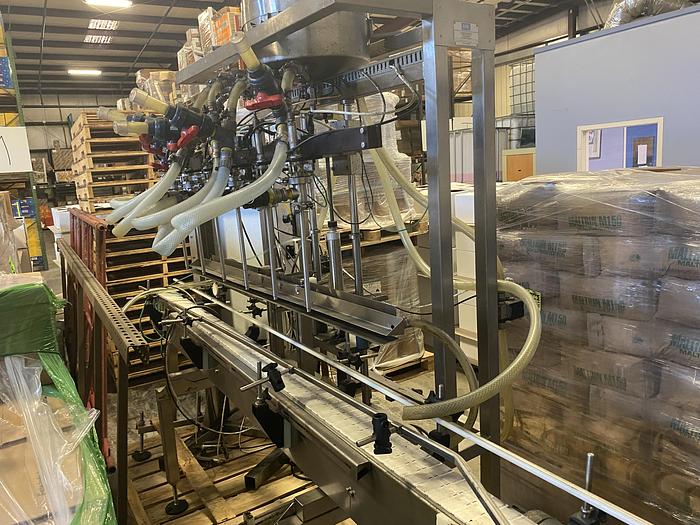

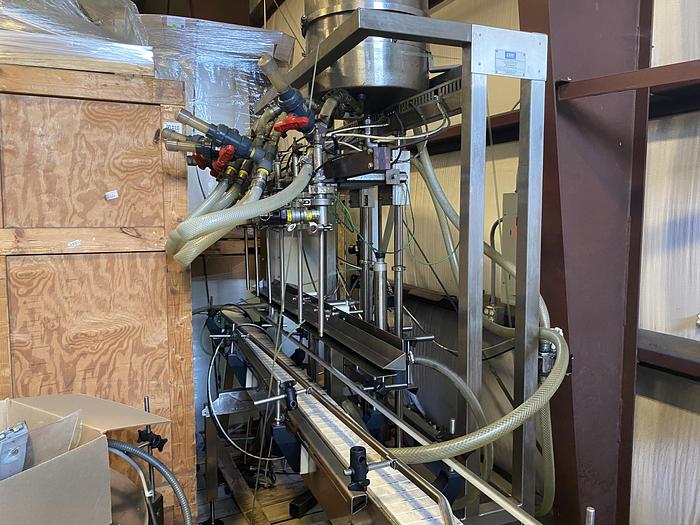

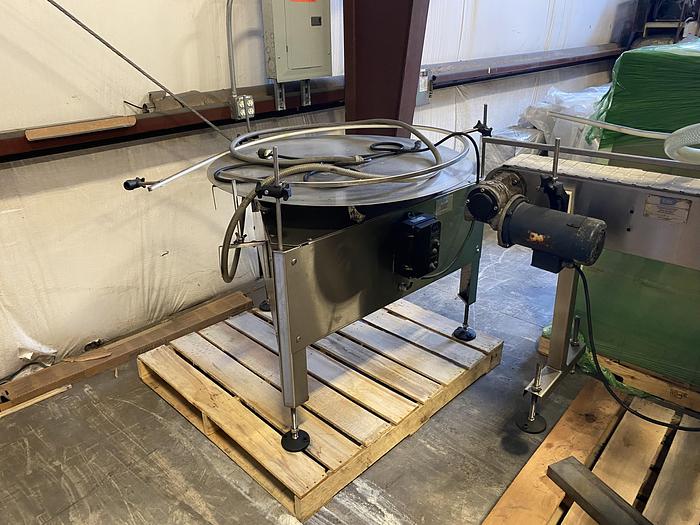

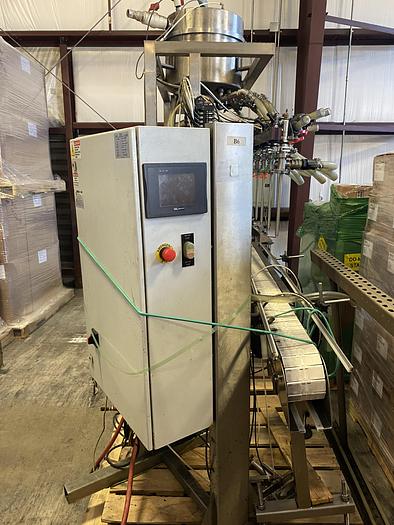

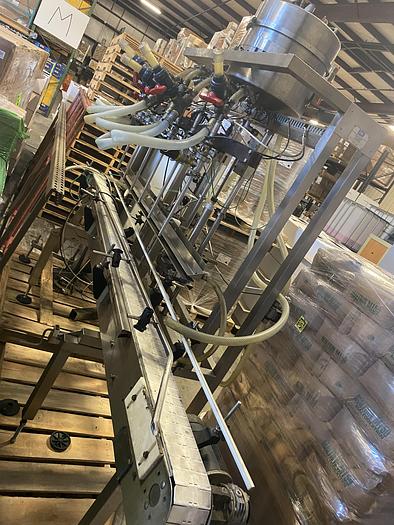

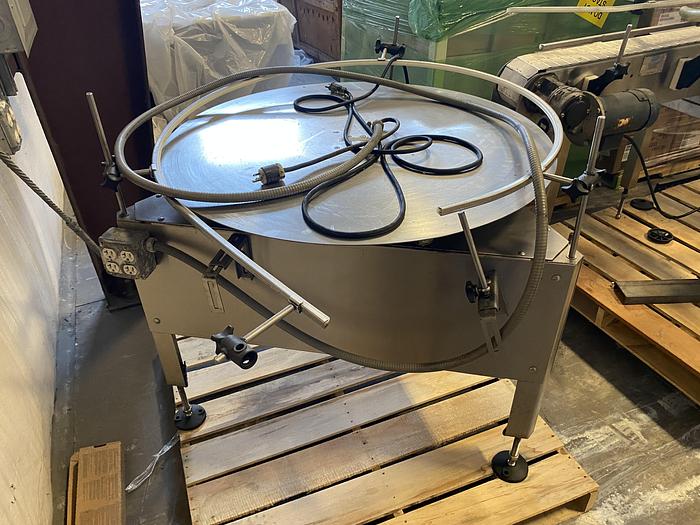

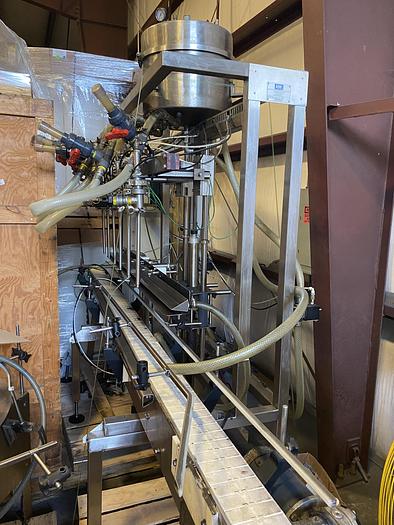

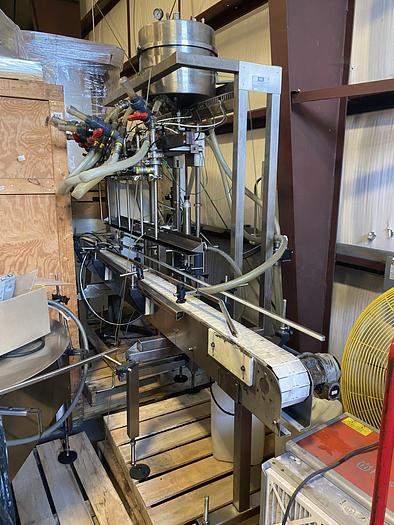

Used E-Pak 6 Head automatic pressure gravity filler. 304 stainless steel heavy duty frame construction. 316 stainless steel bottom-close nozzles. Has diving heads for sub-surface filling. Braided PVC tubing and fittings. Stainless steel product reservoir. (2) 3/4" stainless steel product supply control valves with level sensing float system and safety back-up. In tank float recovery system. AB/Micrologix 1200 controls with color touch screen and automatic set-up capabilities. Automatic drip tray protects bottles from potential drips. Automatic pin-style indexing to bring bottles in and out of fill station. Photo sensor/counter system to ensure containers are in place prior to filling. Includes one set of nozzles. Requires 1/60/115Volt service and 80 to 100 PSI compressed clean dry air. (Motor starter and supply pump not included). Has 10' filler conveyor, 304 SS construction, 4.4" wide Delrin chain belt, standard height range of 32-38". Singles stainless steel rail system with HDPE wear strip. Tool-less adjustable rail brackets, standard 90 volt DC 1/2 HP motor. variable speed control box. 1/60/115-230 volt. Includes 40" accumulation turntable. 304 stainless steel. standard line height of 32-38". CW and CCW rotation. Single rail system with HDPE bottle contact surface. Tool-less adjustable rail brackets, variable speed control box mounted on the machine cabinet. 1/60/115-230 volt. Previously used for cleaners, can handle 48,64, and 124 oz bottles. FOB: Leland, NC
Specifications
Manufacturer | E-Pak |
Year | 2012 |
Condition | Used |
Stock Number | WALE0124-0001 |
