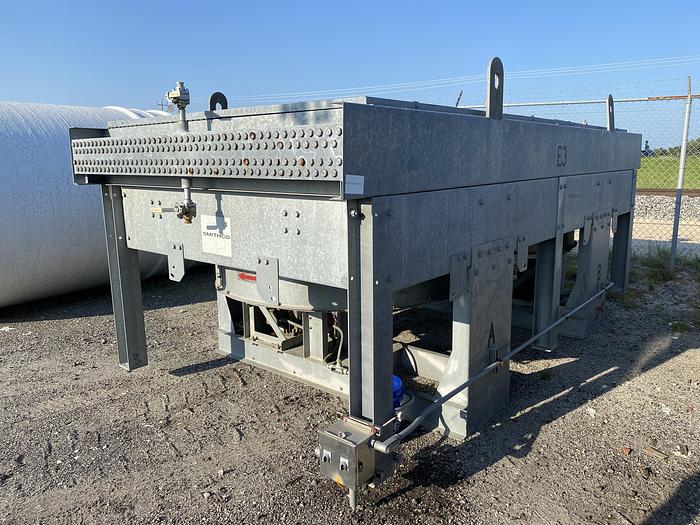

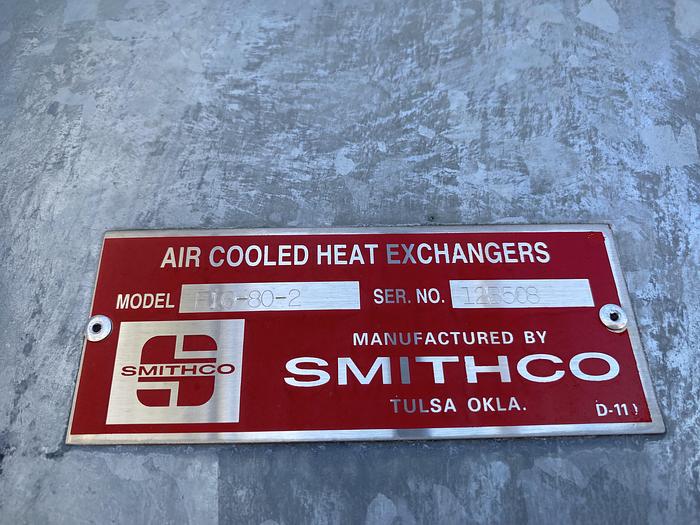

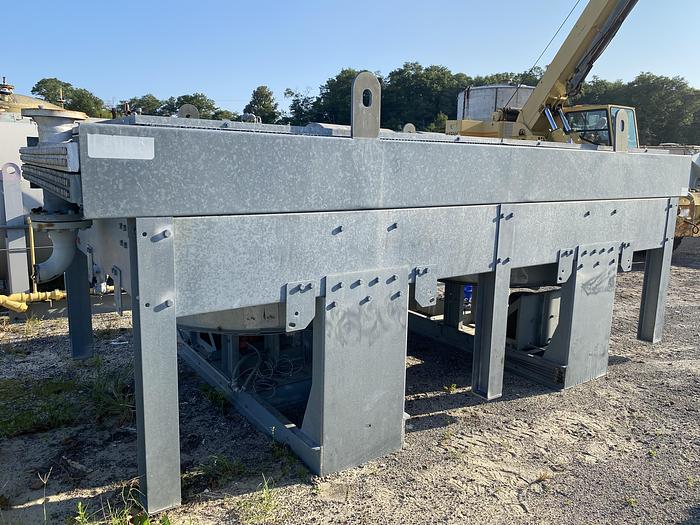

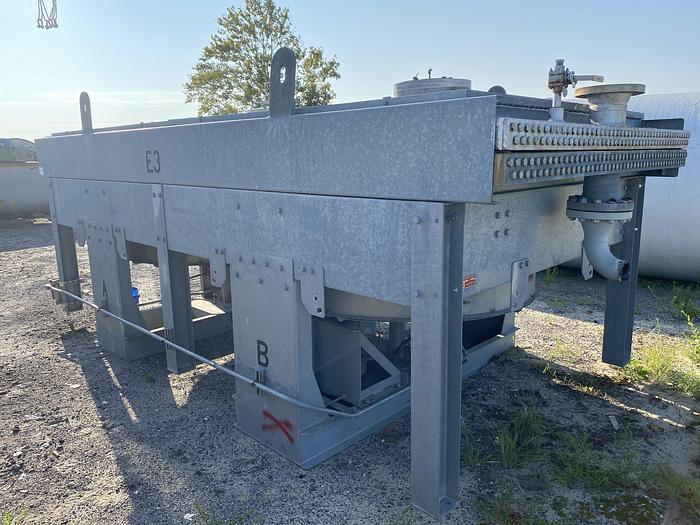

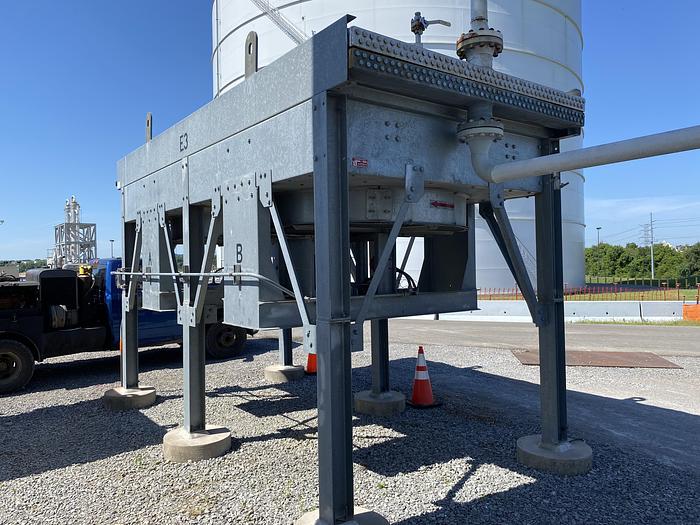

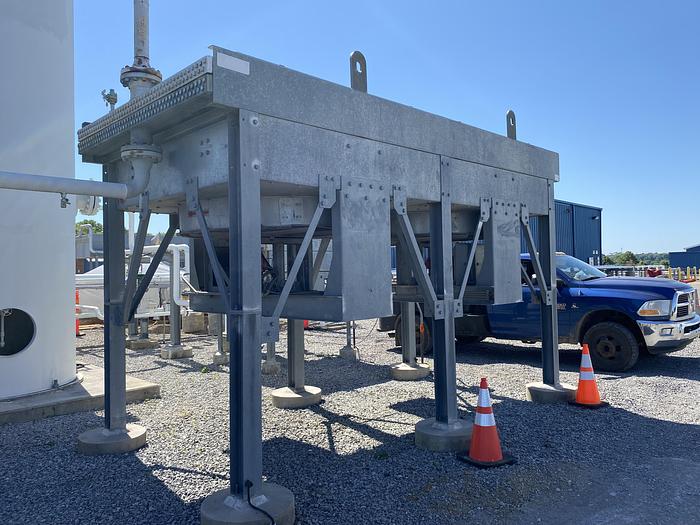

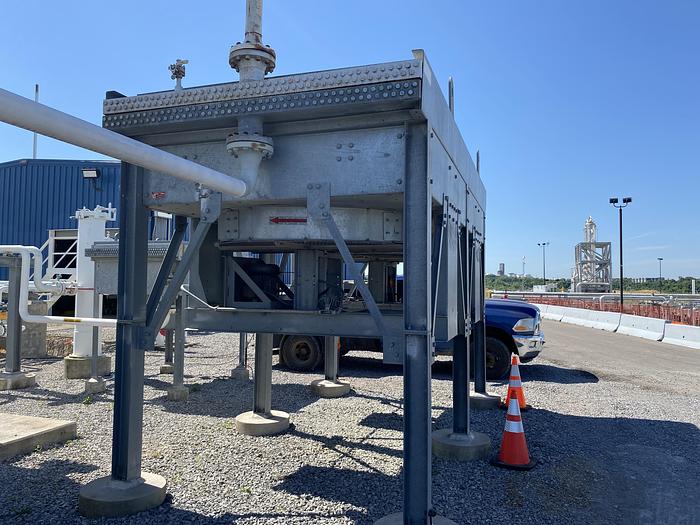

Used SmithCo. Inc Air Fin Cooler Model F16-080-2 S/N 2012B-5081-A

Used SmithCo. Inc Air Fin Cooler Model F16-080-2 S/N 2012B-5081-A .Tube bundle is 96" wide X 192" long. (182) carbon steel 3/4" X 0.083" tubes with imbedded aluminum fins, with fin height of 0.625", 4 rows, 2-passes giving bare sq. ft. of 572.2, extended sq. ft. of 13,630. Designed for 350 PSIG @ -20 to 650 degrees F. Has 6" 600# inlet and outlet and 1" vent and drain. Equipped with 15 HP 6' diameter Moore model SC 10K Series 24 VT Tips fans. 4 blades each with 13.7 pitch with 53,000 ACFM/fan. Motor is 15HP 3/60/460 volt. Overall dimensions 18' long X 98" wide X 121.5" tall. Weight 12,500#. Previously used in natural gas service. Built 2012. FOB: Wilmington, NC
