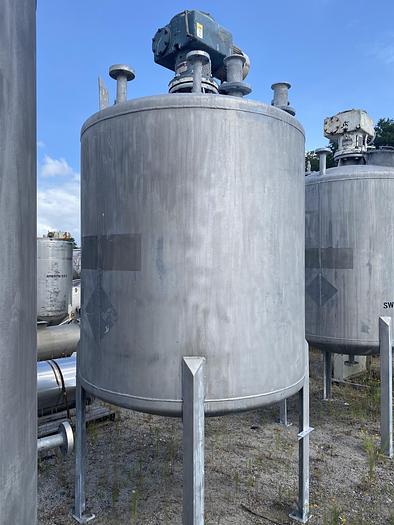

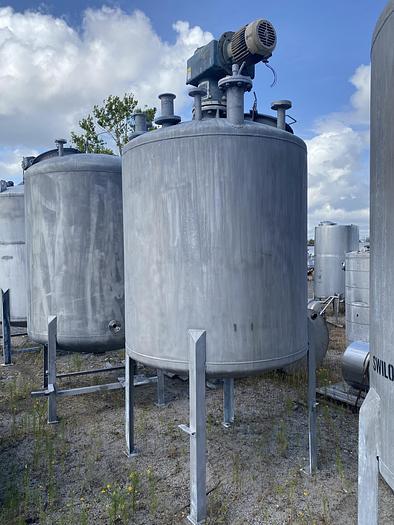

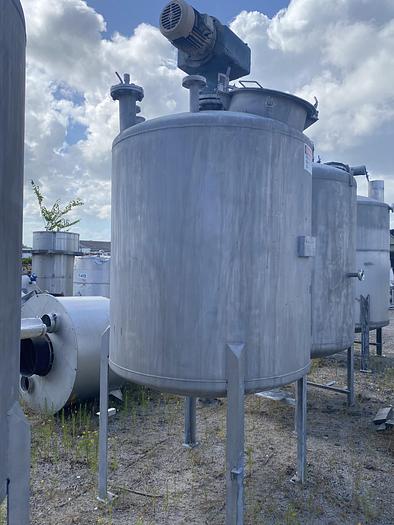

Used Circleville Metal Works Inc. approximately 750 gallon 304 stainless steel vertical mix tank

Used Circleville Metal Works Inc. approximately 750 gallon 304 stainless steel vertical mix tank

Location:Wilmington, NC

orCall 252-378-4154

Description

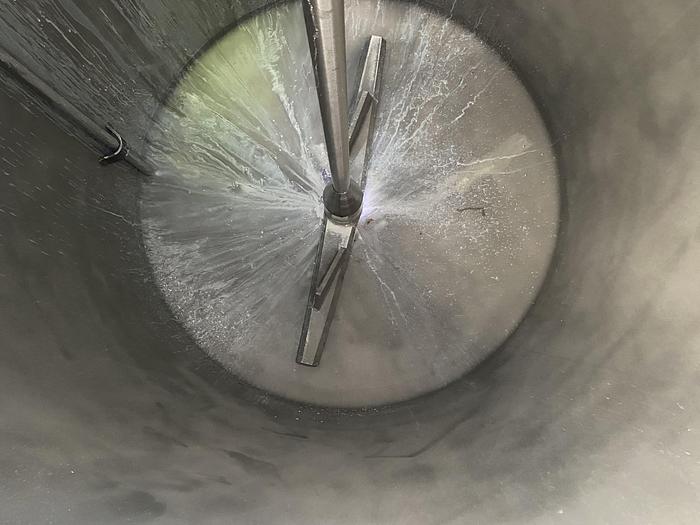

Used Circleville Metal Works Inc. approximately 750 gallon 304 stainless steel vertical mix tank. 60" diameter X 60" high straight side. Internal rated 0.25 PSI @ 212 F. S/N CMW-939 Dished top and bottom. Top fittings: 20" manway, (2) 1.5", (2) 2", (2) 3", and (1) 4". 2" center bottom drain. Equipped with anchor style agitator driven by Philadelphia right-angle drive Model MT04-PTO. S/N 508915 Ratio 20.9-1 rated 1750 RPM input, 84 RPM output. Powered by 5HP 3/60/230-460 volt motor. Mounted on (4) legs giving 27" clearance. Built 1975.

Specifications

ManufacturerCircleville Metal Works
Year1975
ConditionUsed
Stock NumberSWIL0624-0003
