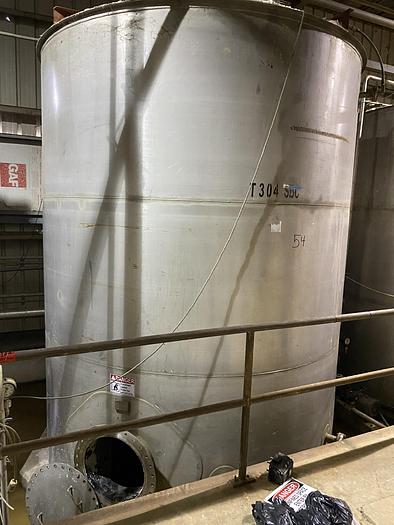

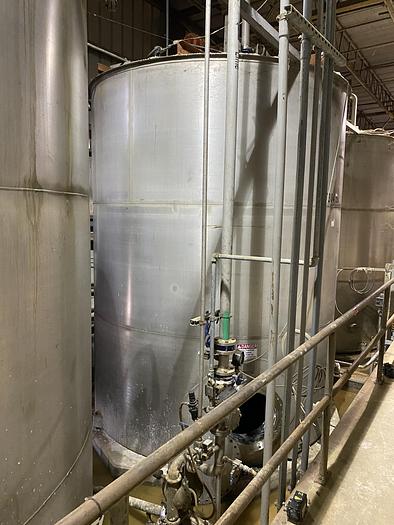

Used Wolfe Mechanical approximately 12,600 gallon 304L stainless steel vertical mix tank
![Used Used Wolfe Mechanical approximately 12,600 gallon 304L stainless steel vertical mix tank](https://i.machineryhost.com/8b313cbf30999888de32da1ec83ff503/7feb722bb51a98b611a8da36a3bdb043/large-ACHA0224-0054_001.jpg)
Used Wolfe Mechanical approximately 12,600 gallon 304L stainless steel vertical mix tank
Location:Charlotte, NC
Description

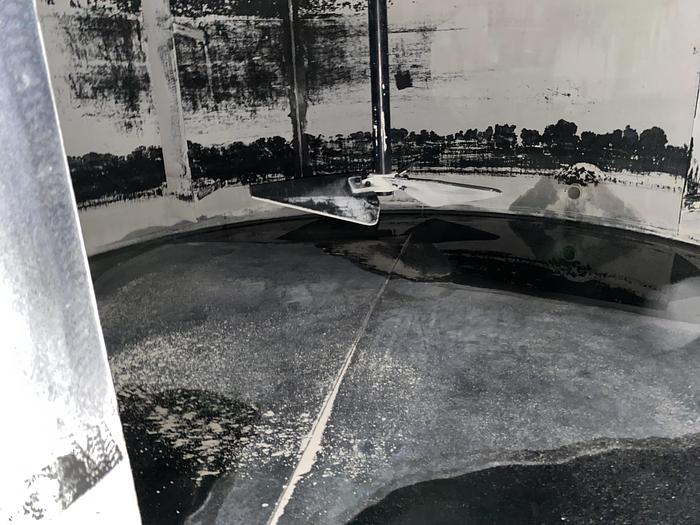

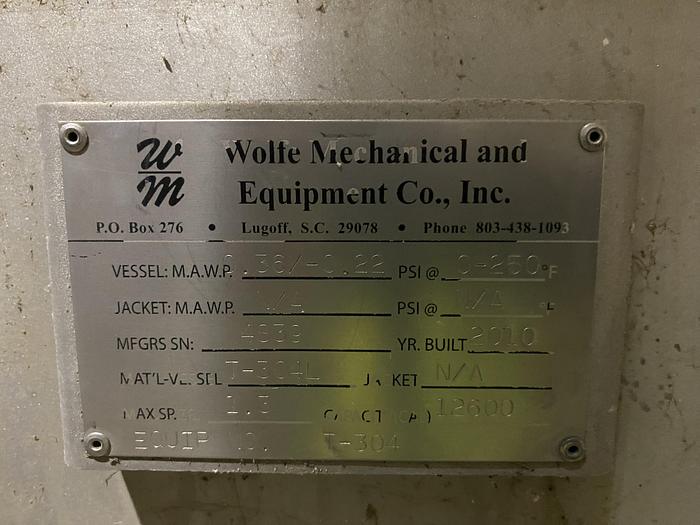

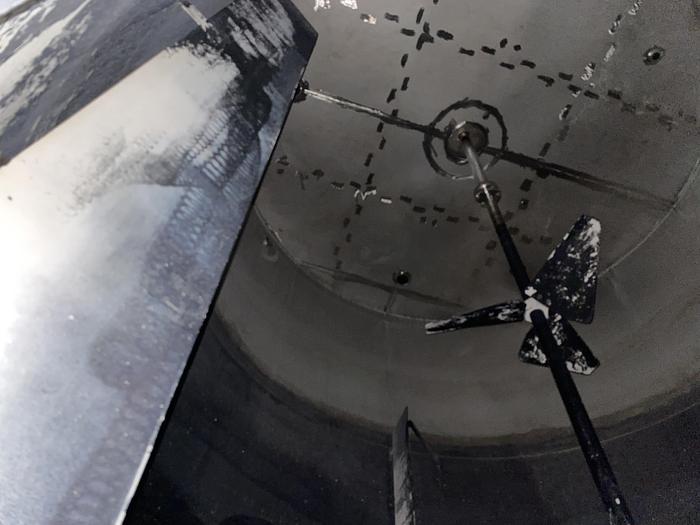

Used Wolfe Mechanical approximately 12,600 gallon 304L stainless steel vertical mix tank. 12' diameter X 15' high straight side. Internal rated 0.36/-0.22 PSI @ 250 degrees F. Max S.P. 1.3. S/N 4839.. Flat top with 6" channel supports and flat bottom. Top fittings: (1 10' center agitator nozzle, (1) 2", (1) 3", 2) 4", and (1) 6". (1) 2" and (1) 4" side top inlets. 24" side bottom manway, (3) 3" side bottom outlets. (1) 2" low point drain. Has (3) internal baffles. Equipped with ProQuip top entering agitator model 3ZEX25BP with 3 HP, 1800 RPM, 230/460/3/60 TEFC motor, Heavy duty agitator drive with dry well and oversized bearings, 3” and 2” diameter x 174” long two piece shaft 304 SS, two 39” diameter 3-blade HiFlow turbines rotating at 72 RPM with lower impeller 18” off tank bottom and upper impeller 80” above lower. Each turbine pumps 18,518 GPM providing an entrained flow of 37,040 GPM. Gear reducer service factor of 1.6 based on full motor horsepower and L-10 bearing life in excess of 100,000 hours. Shaft sealed by means of low pressure Viton vapor seal with two piece split 304 SS seal plate. Unit designed for dissolving 50% by weight powdered citric acid, 1.32 SG and 100 cps.. Weight 7900#, Built 2010. FOB: Charlotte, NC
Specifications
Manufacturer | Wolfe Mechanical |
Year | 2010 |
Condition | Used |
Stock Number | ACHA0224-0054 |
