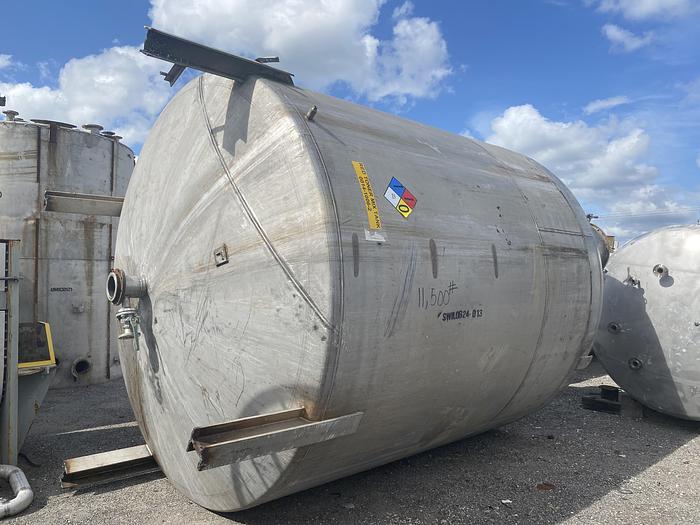

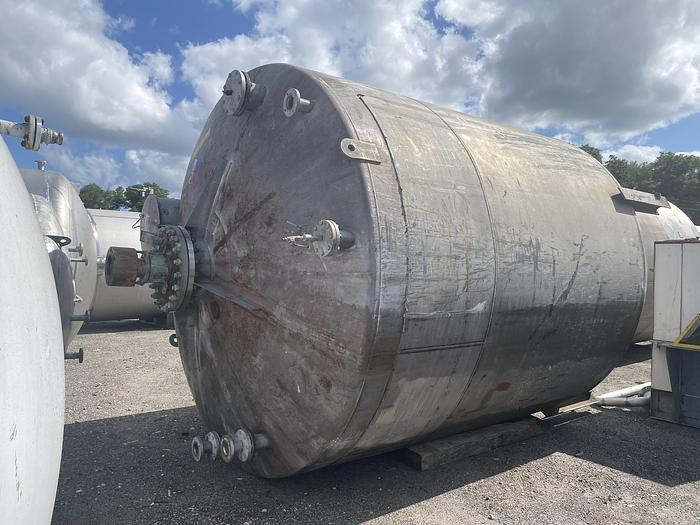

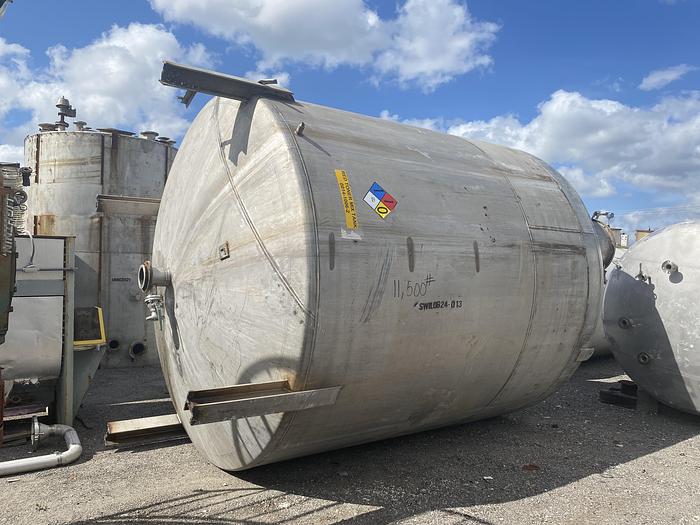

Used IPSCO approximately 9300 gallon 304 stainless steel vertical mix tank

Used IPSCO approximately 9300 gallon 304 stainless steel vertical mix tank

Location:Wilmington, NC

orCall 252-378-4154

Description

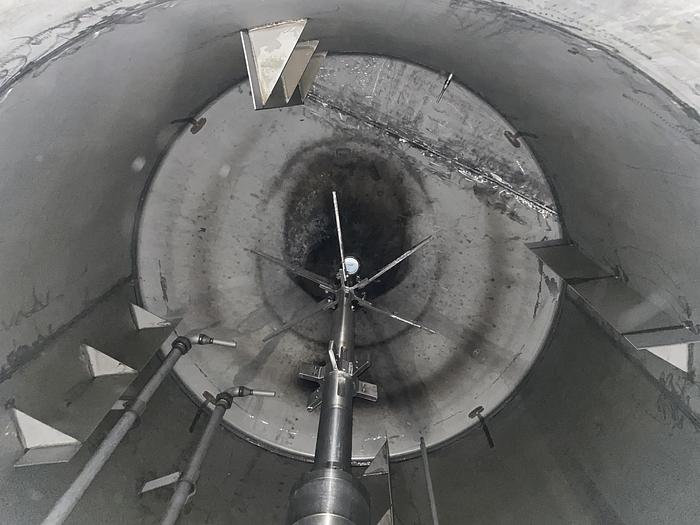

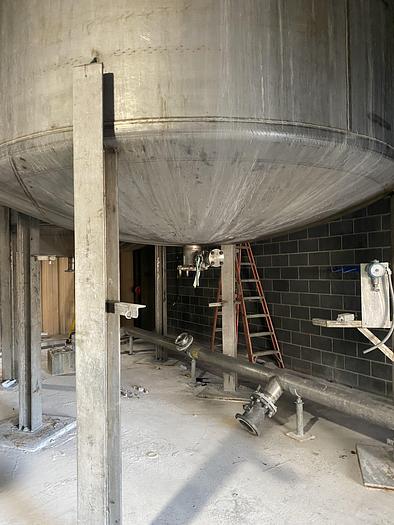

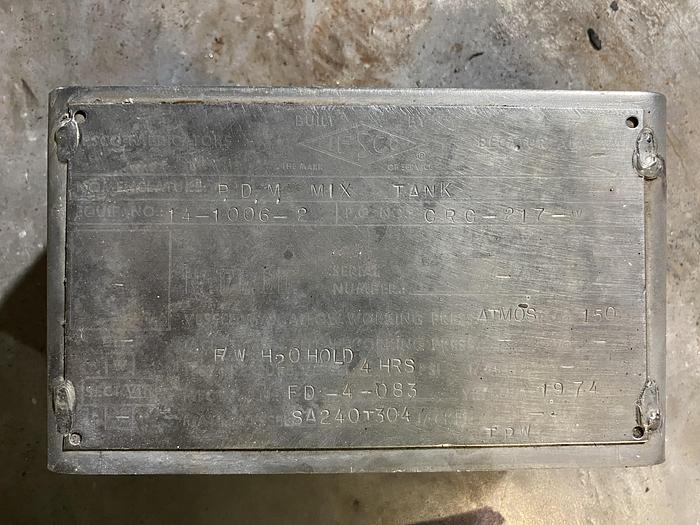

Used IPSCO approximately 9300 gallon 304 stainless steel vertical mix tank. 138" diameter X 144" high straight side. Internal rated ATMOS @ 150 F. S/N FD-4-083 Dished heads. Top fittings: 24" manway, (1) 3", (4) 4", and (1) 10". 6" center bottom drain. Equipped with (6) blade agitator driven by Chemineer Model 9HTA150 drive S/N 1-27306-2. Rated 1750 RPM input, 120 RPM output. Powered by 150HP 3/60/460 volt motor. Mounted on (4) stainless steel legs that give 64" clearance. NOTE: LEGS WILL WERE CUT FOR REMOVAL OF TANK. OAH 26'-3"

Specifications

ManufacturerIPSCO
Year1974
ConditionUsed
Stock NumberSWIL0624-0013
