Used approx 1400 gallon 304 SS mix tank.

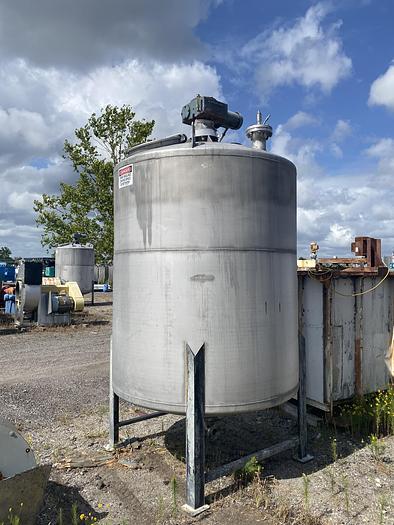

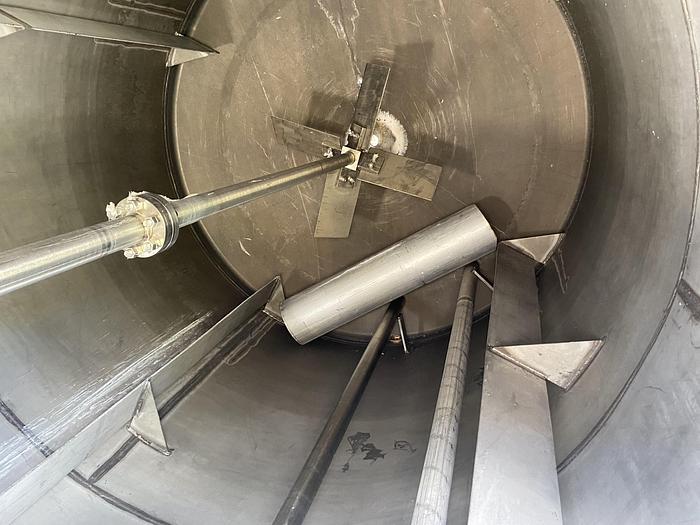

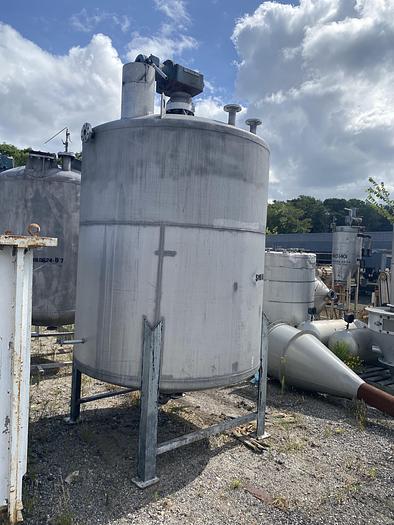

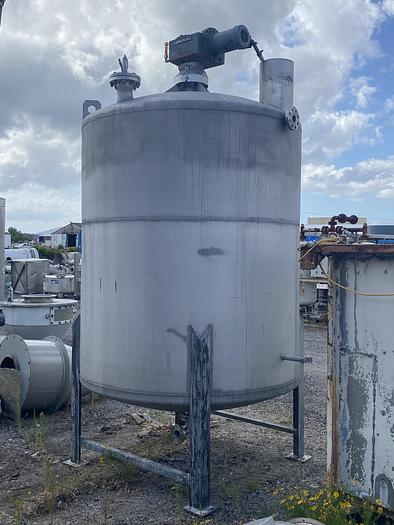

Used approximately 1400 gallon 304 stainless steel vertical mix tank. 72" diameter X 80" high straight side. Dished top and bottom. Top fittings: 20" manway, (2) 2", (1) 4", and (1) 10". 2" side top inlet, 2" center bottom drain. Has (4) internal baffles. Equipped with 4-blade agitator driven by Philadelphia right-angle MT04 drive Model MT04, rated 1750 RPM input, 84 RPM output. Powered by 2HP 3/60/230-460 volt motor. Mounted on (4) legs giving 16" clearance.
