Used Owens Corning 5600 gallon fiberglass vertical storage tank

No longer available

Used Owens Corning 5600 gallon fiberglass vertical storage tank

Location:Wilmington, NC

Description

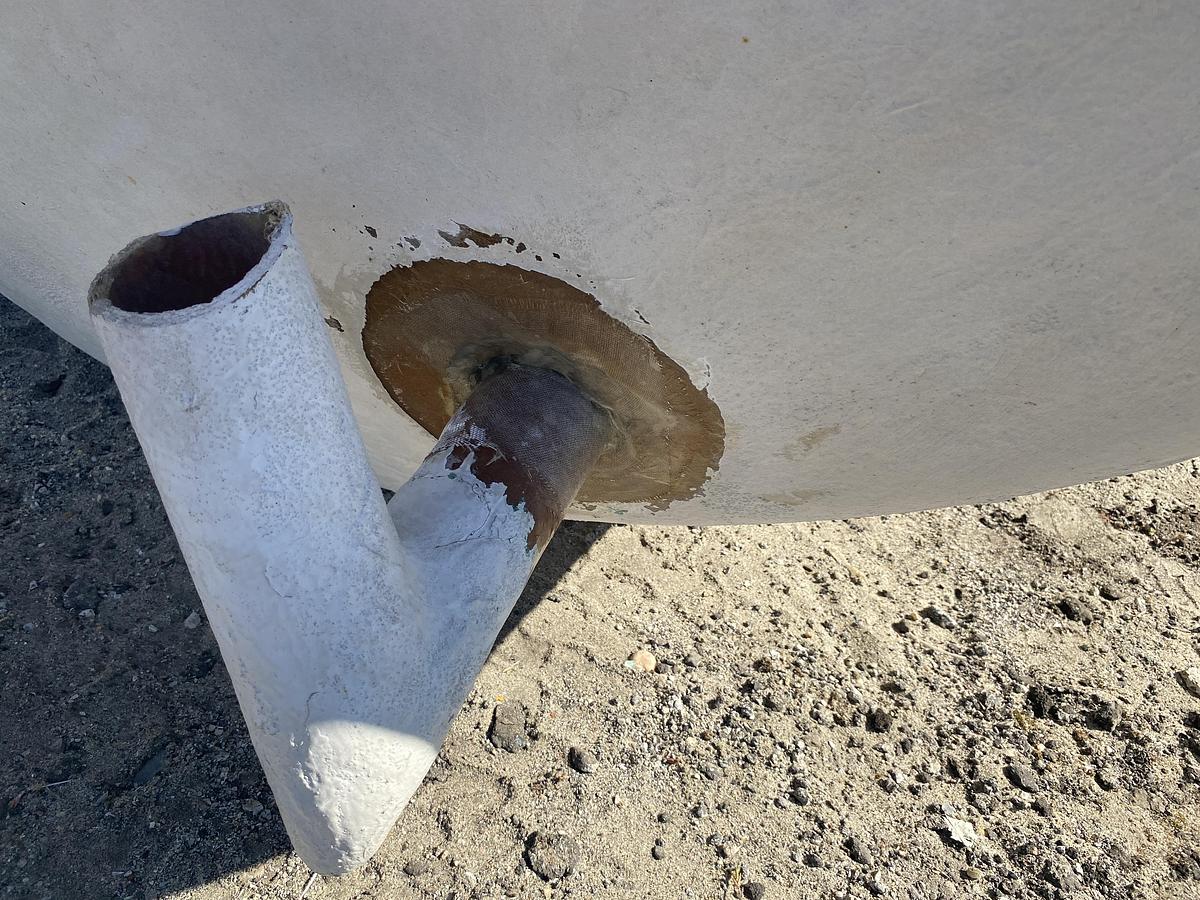

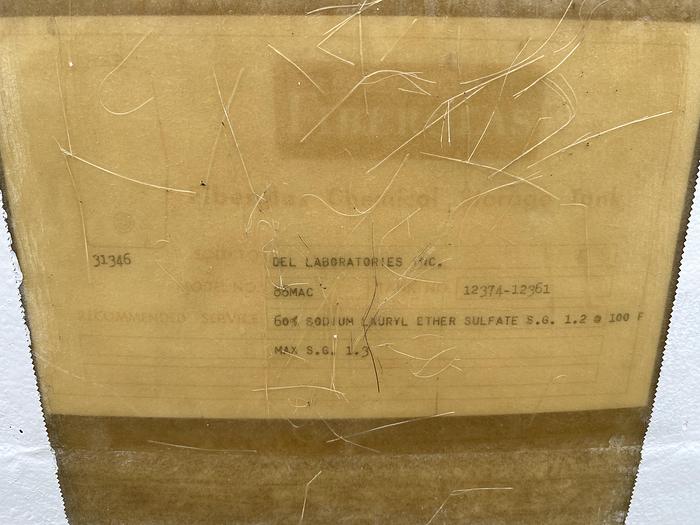

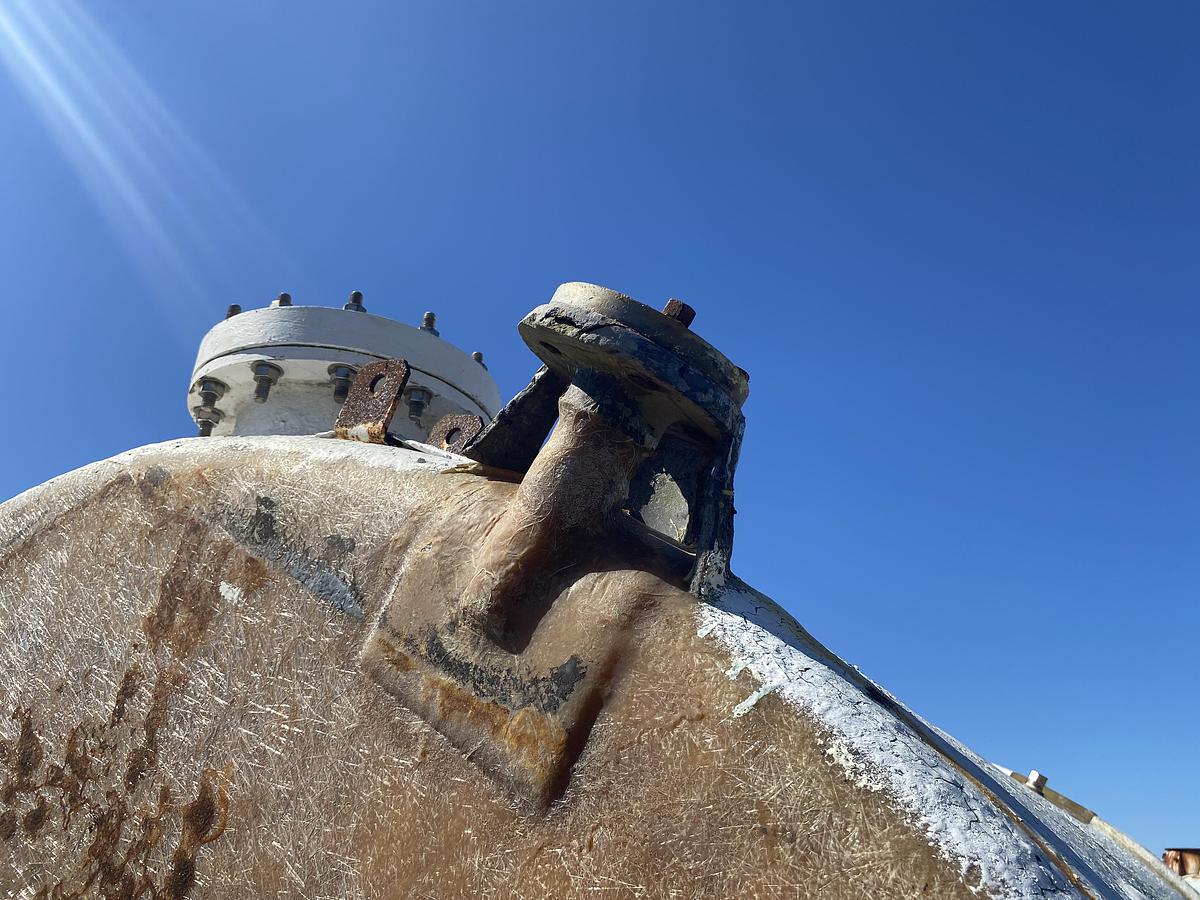

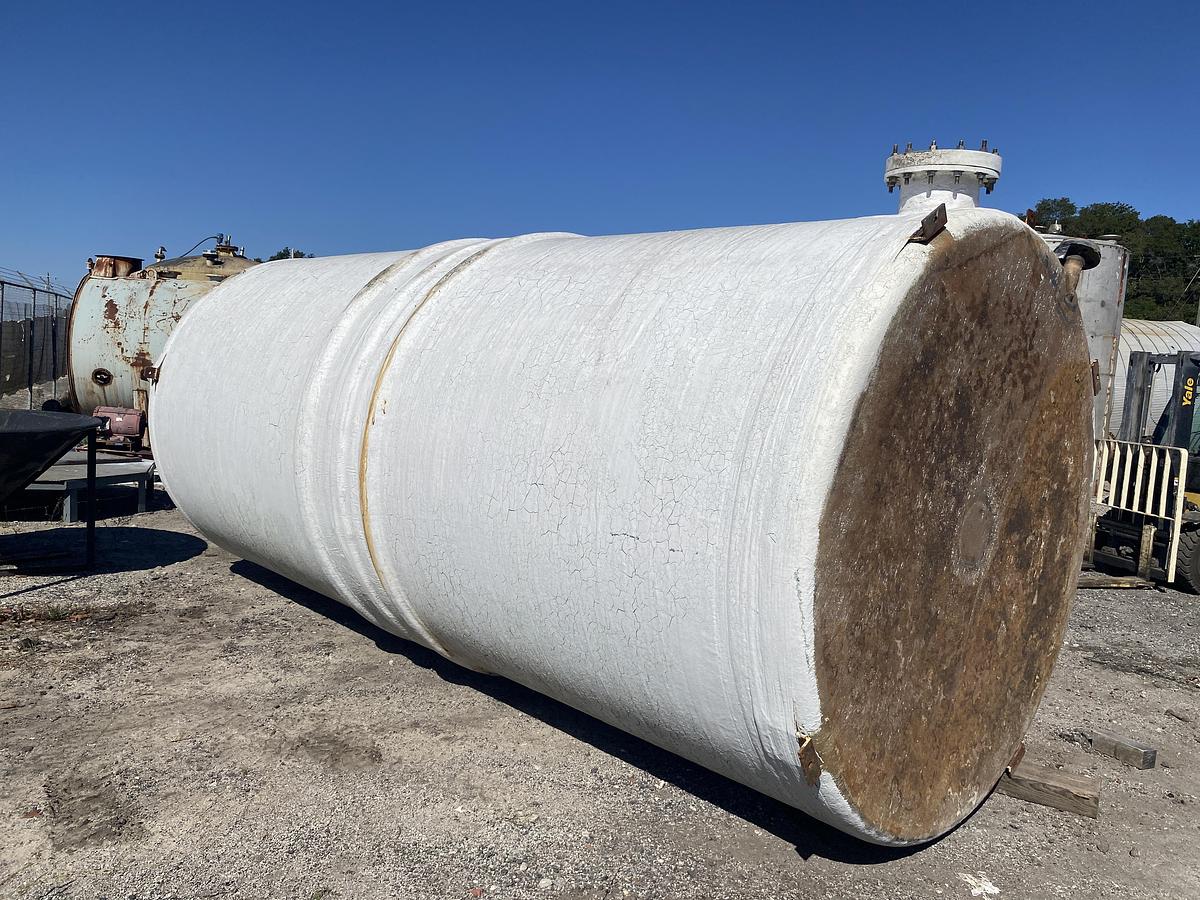

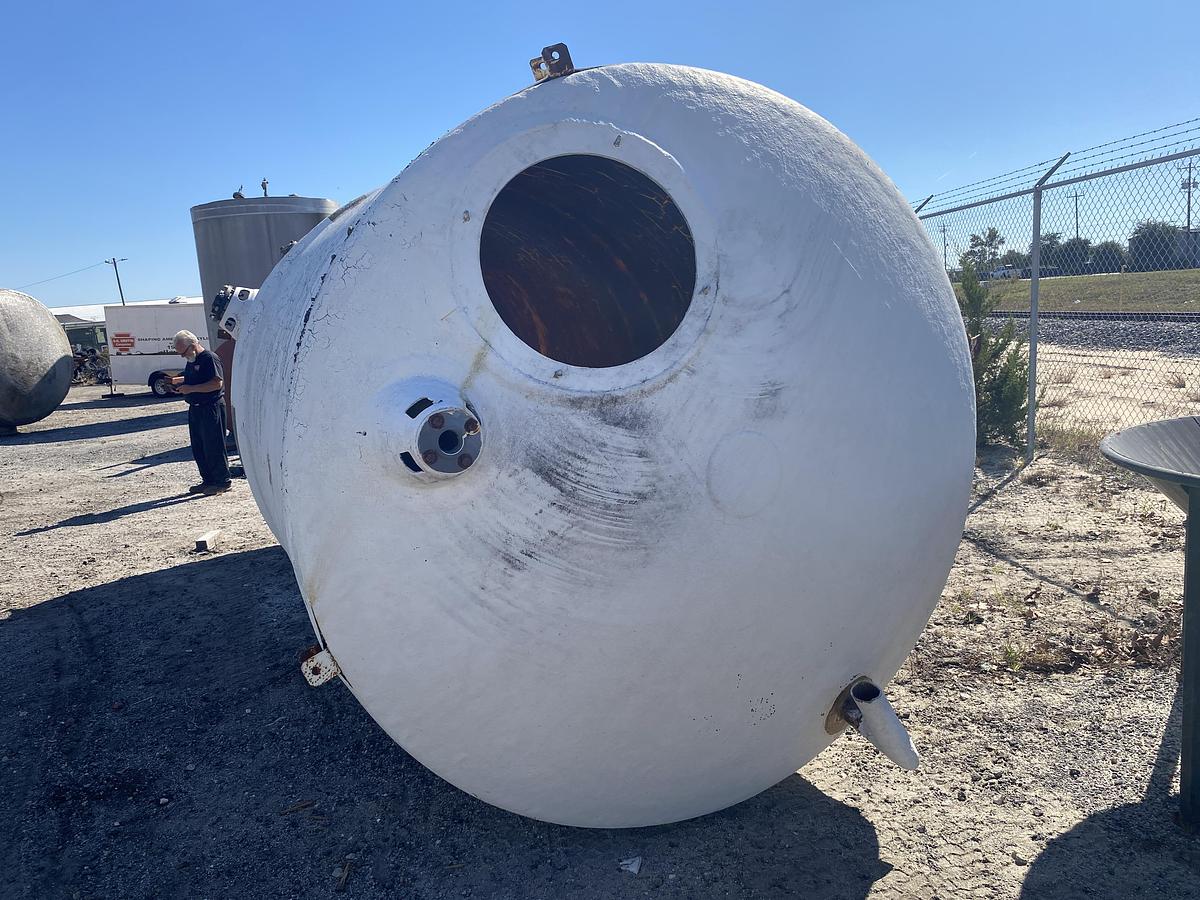

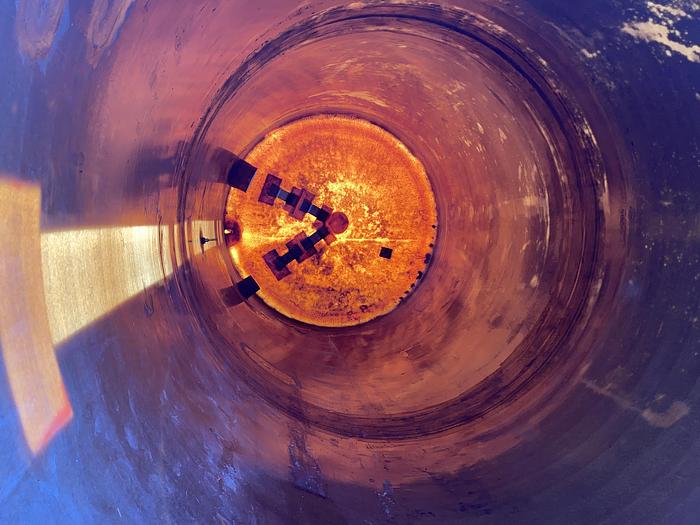

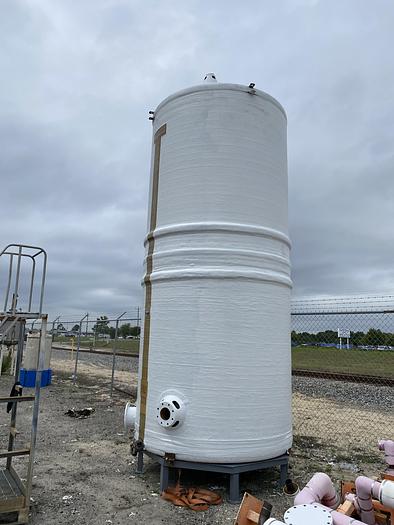

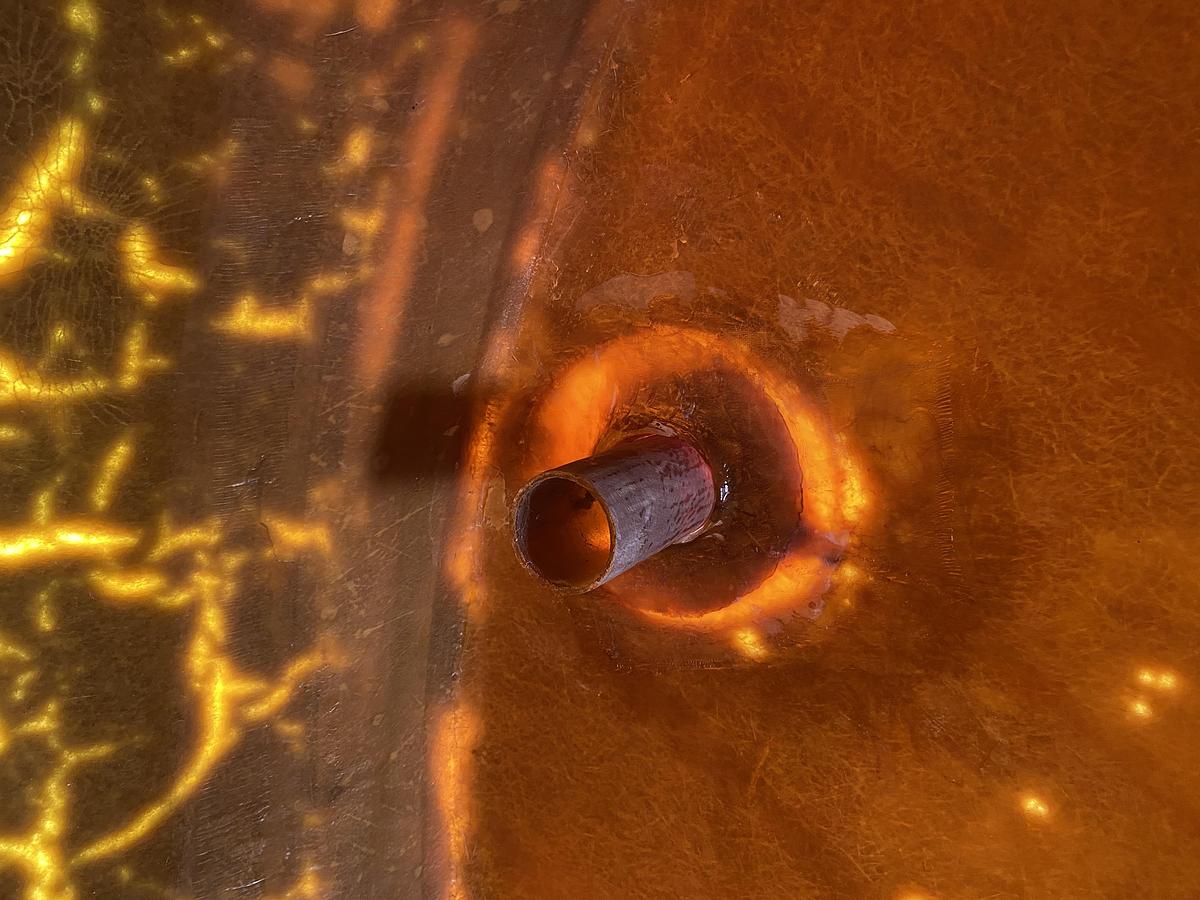

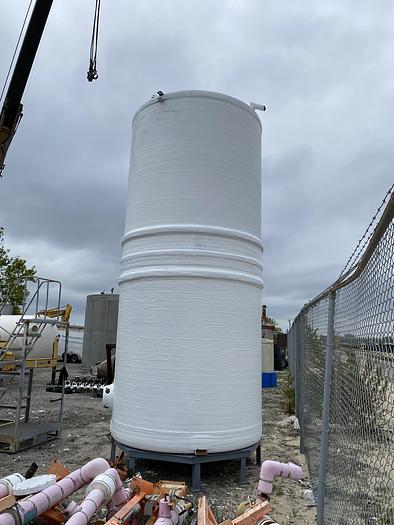

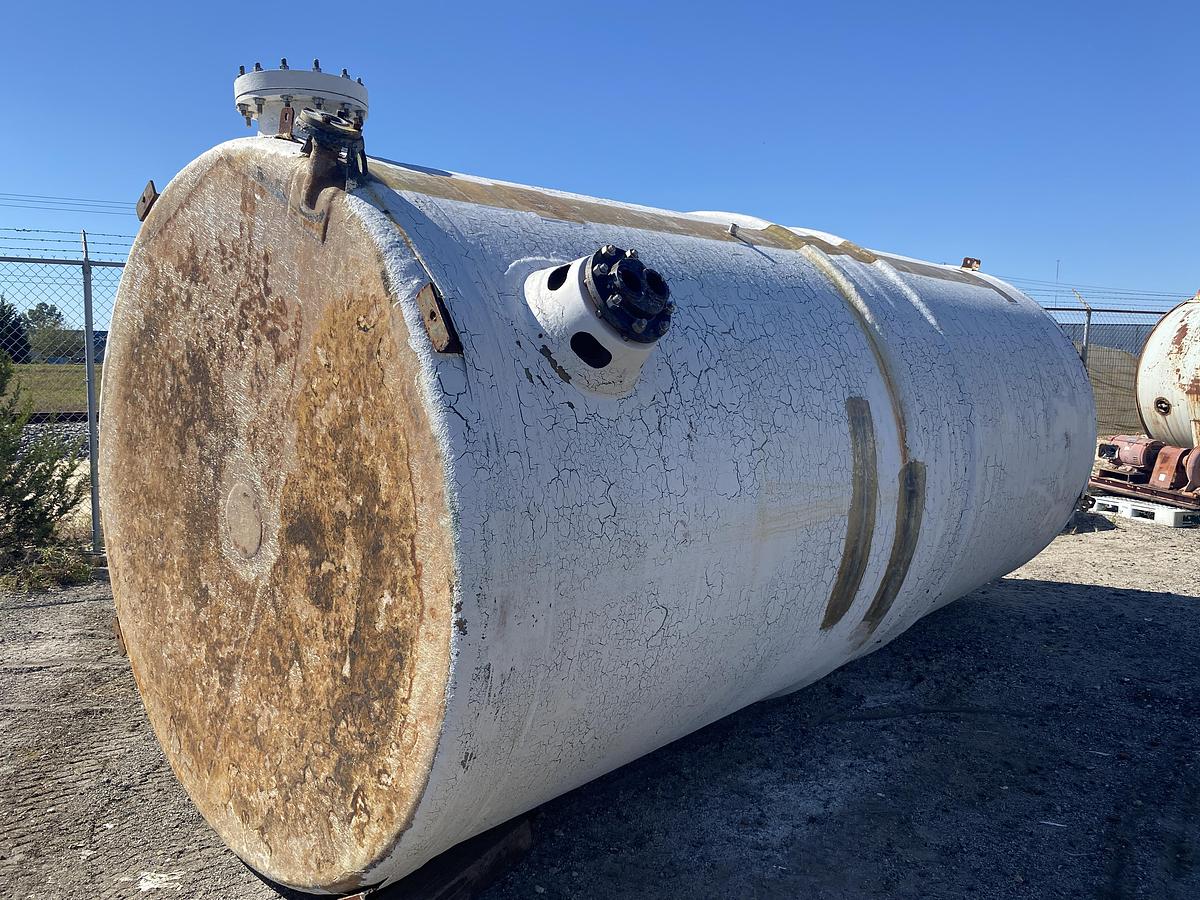

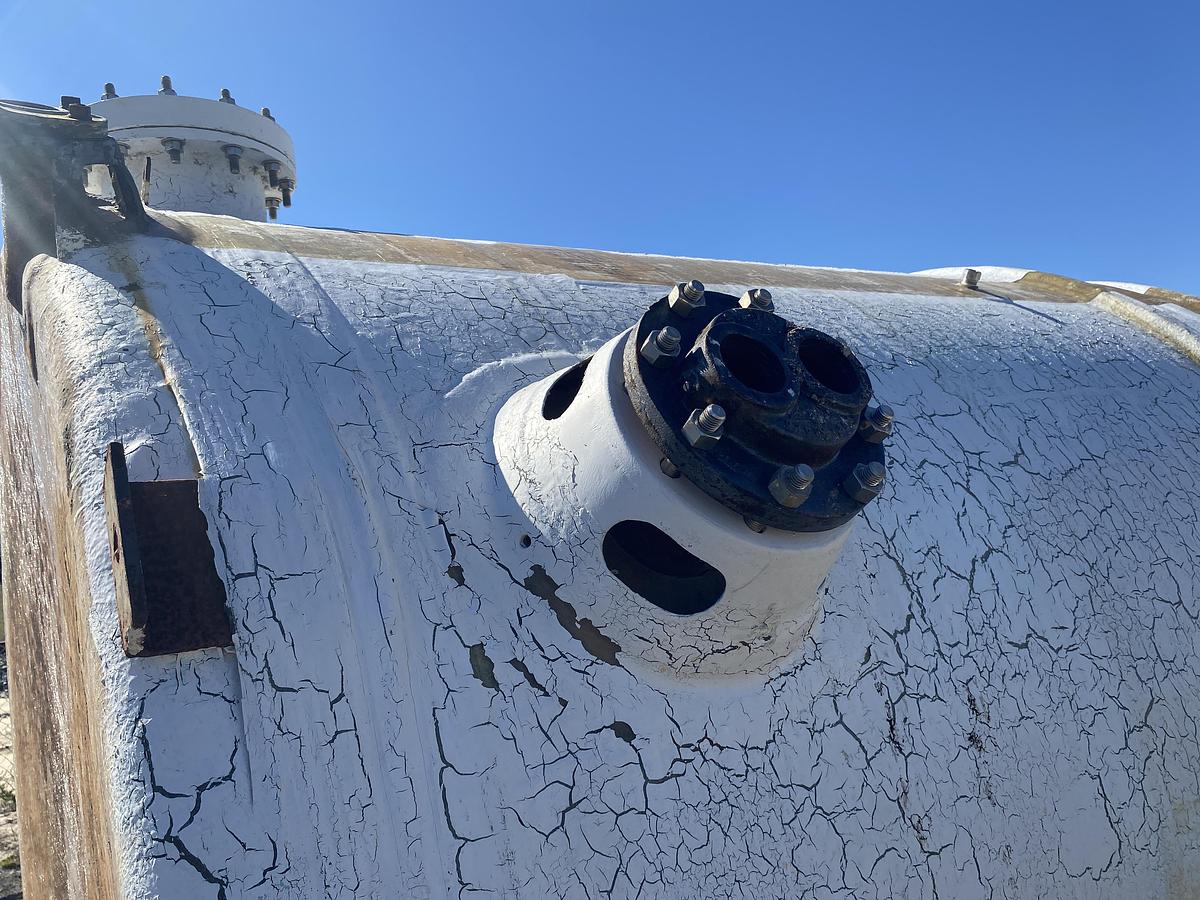

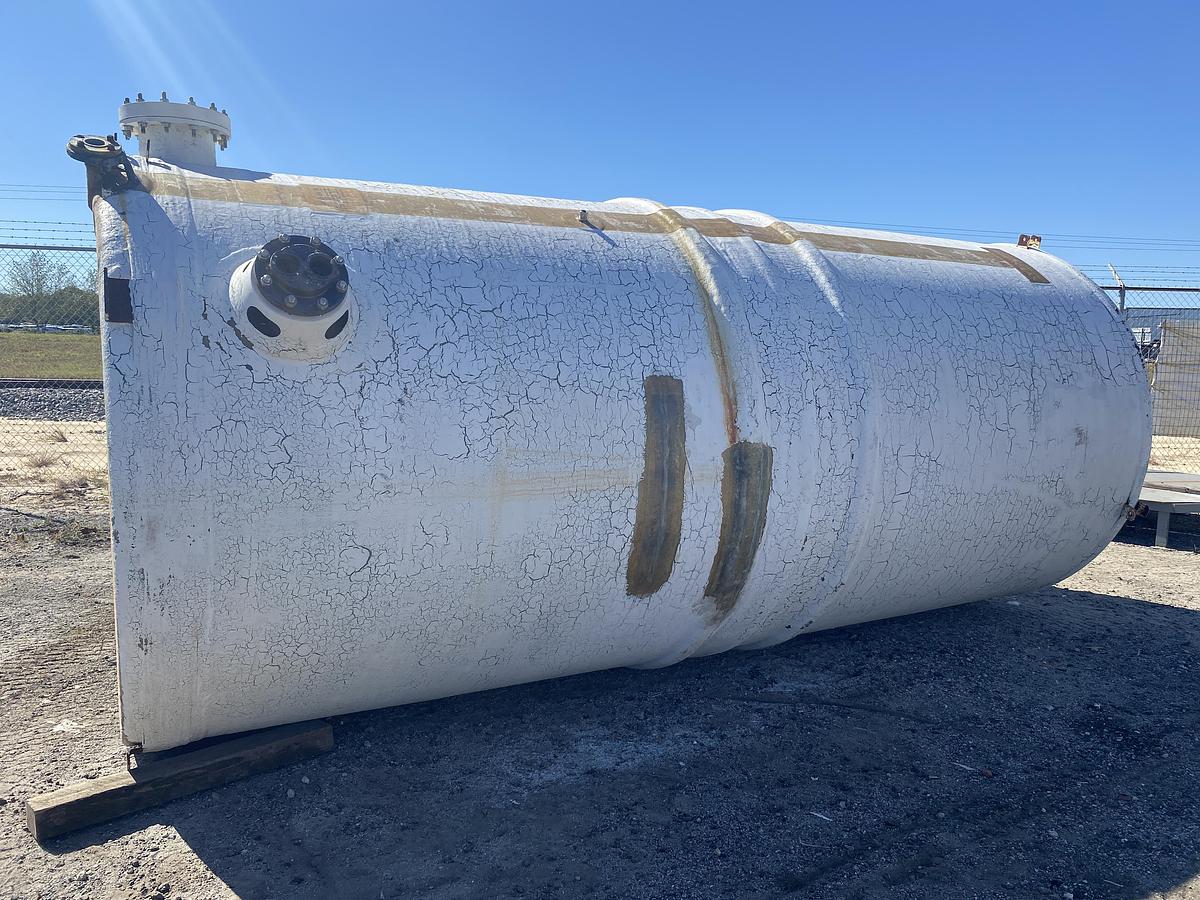

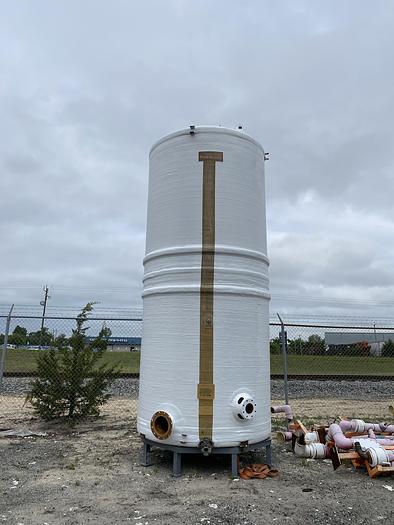

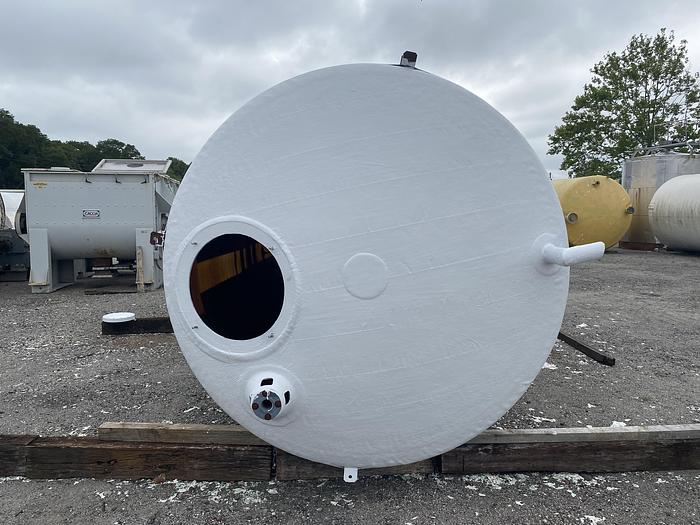

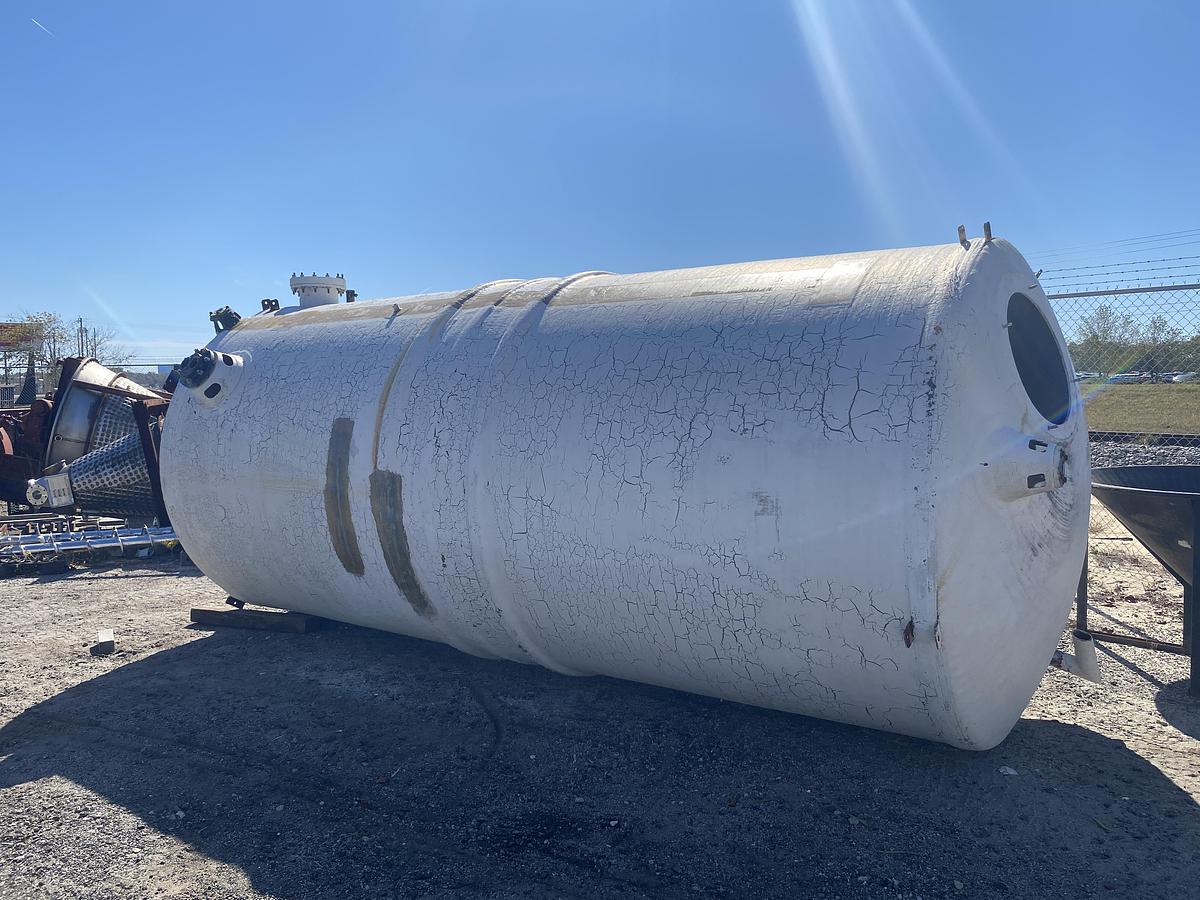

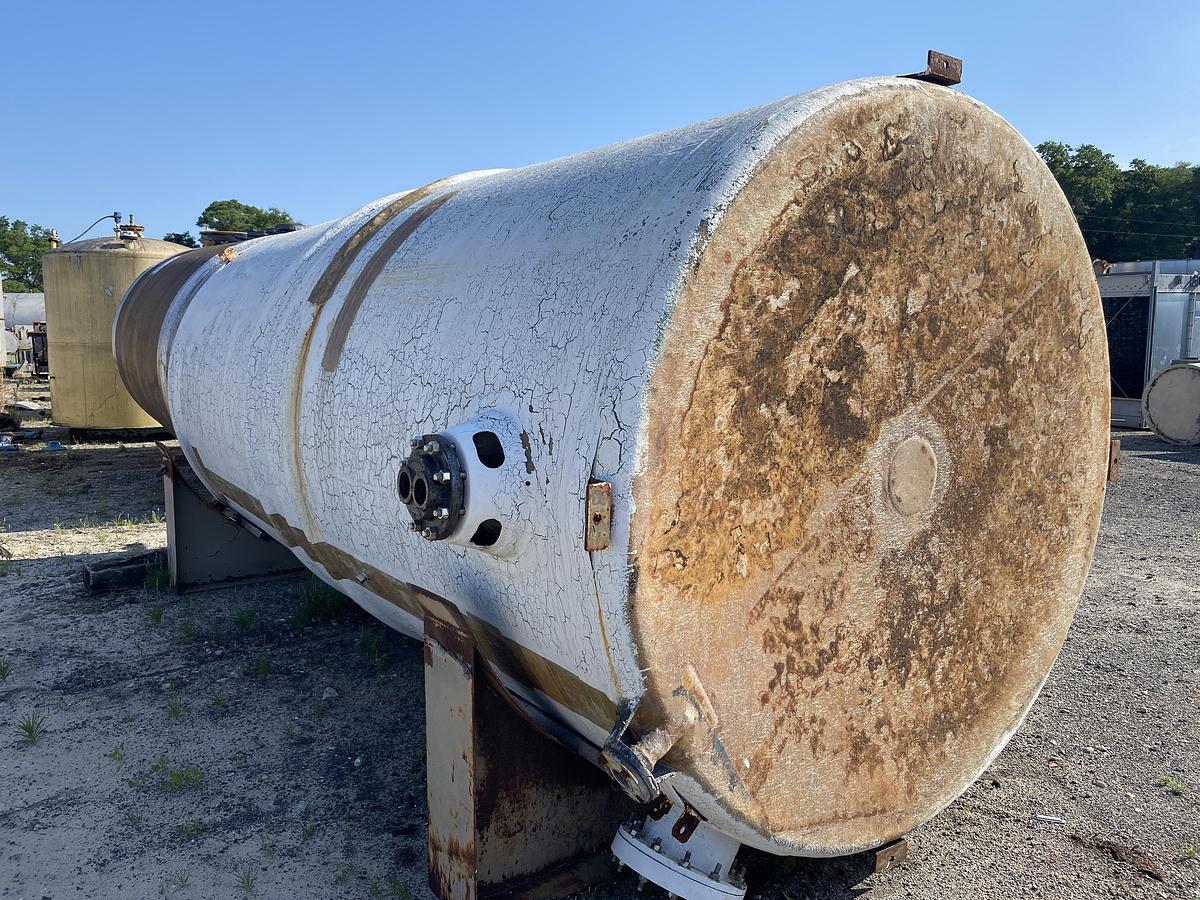

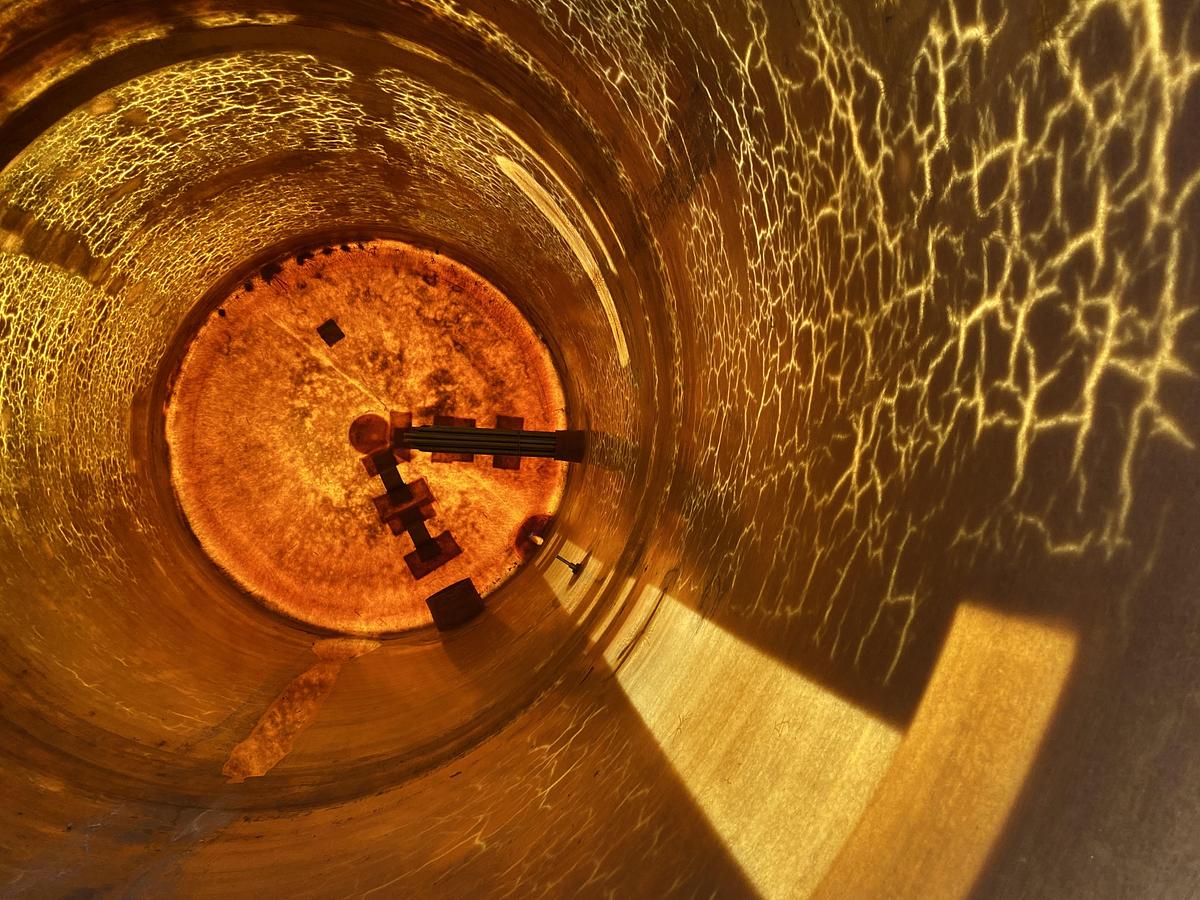

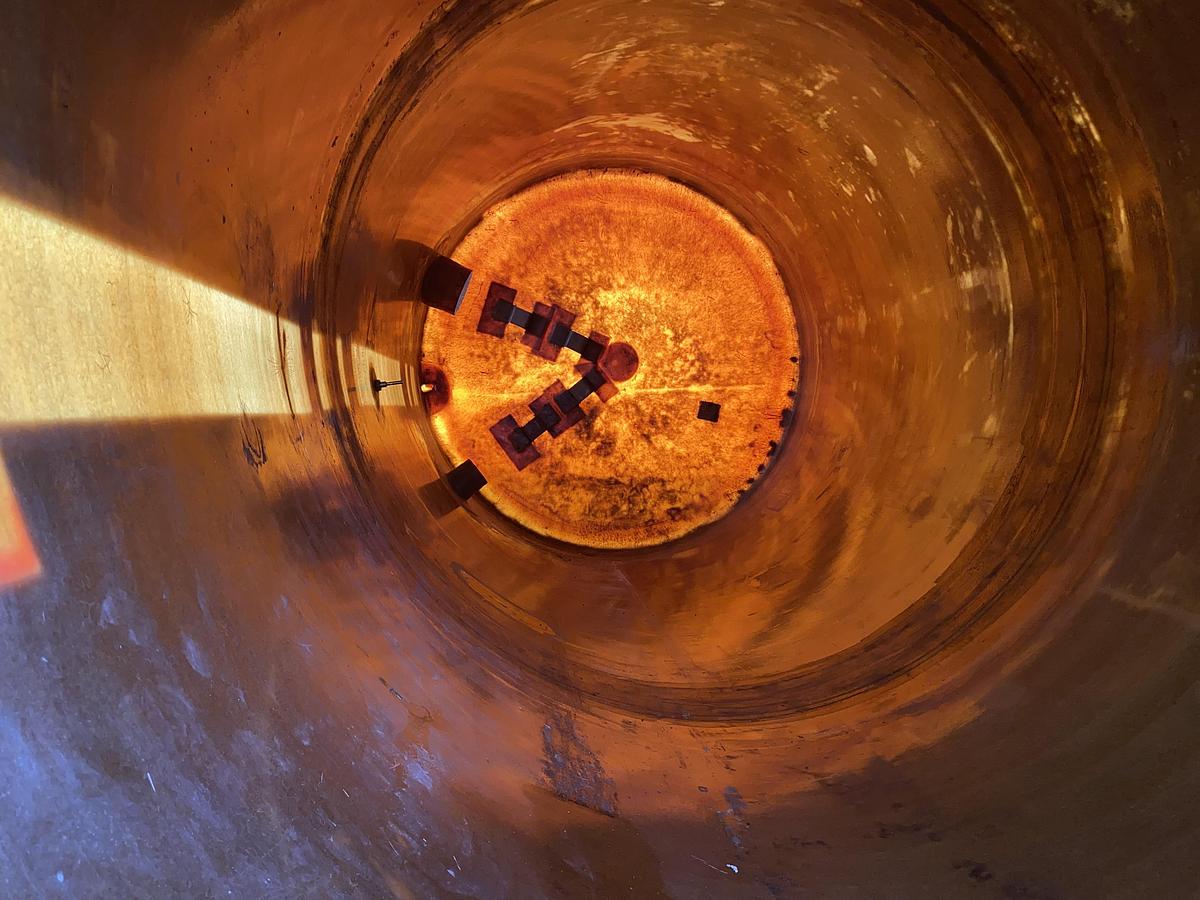

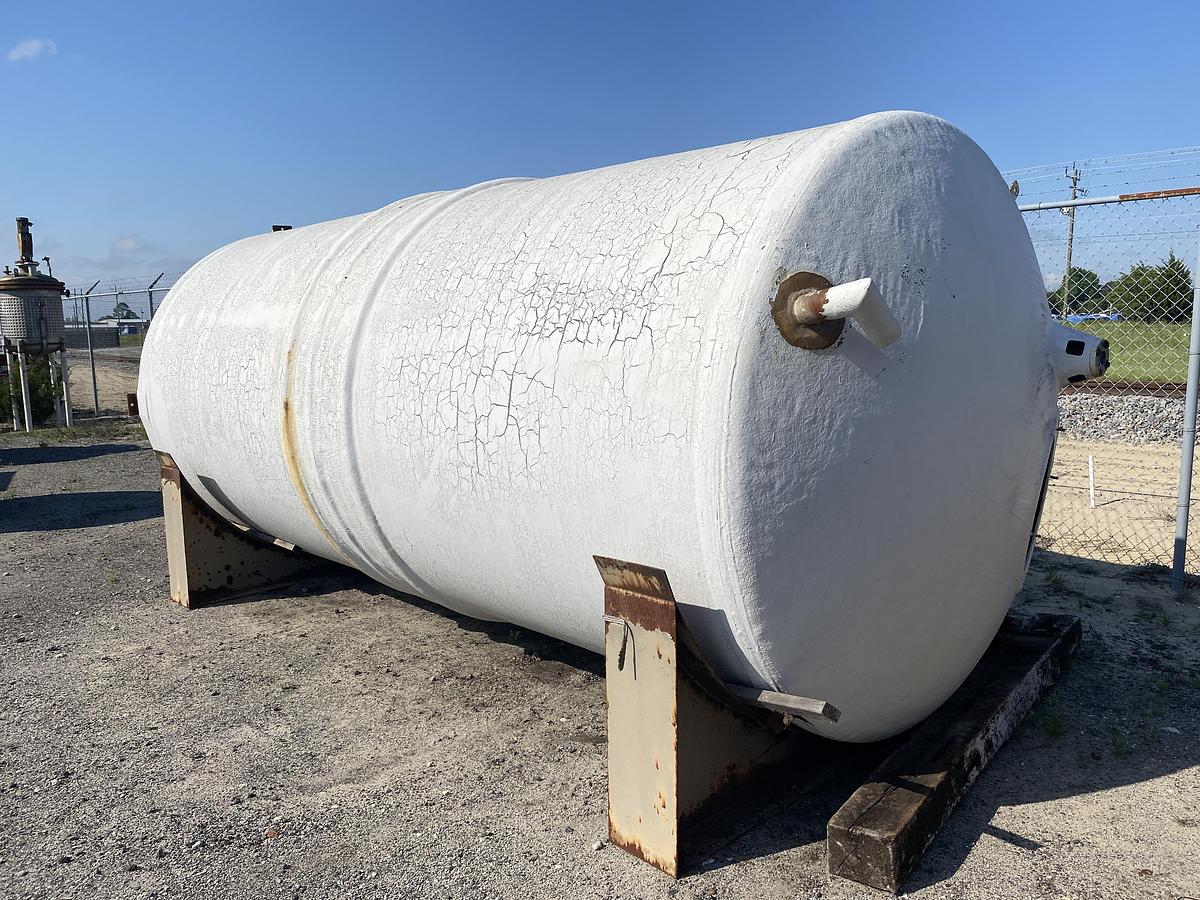

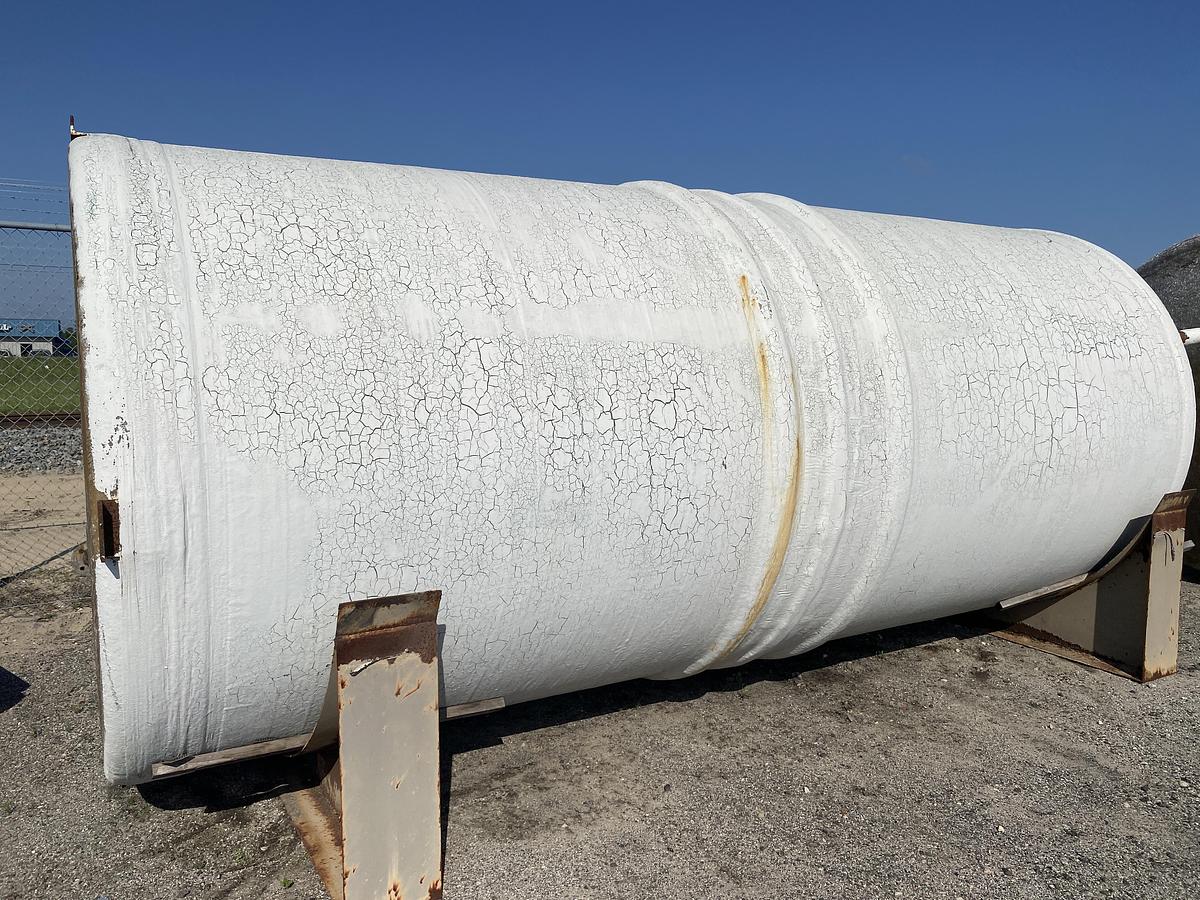

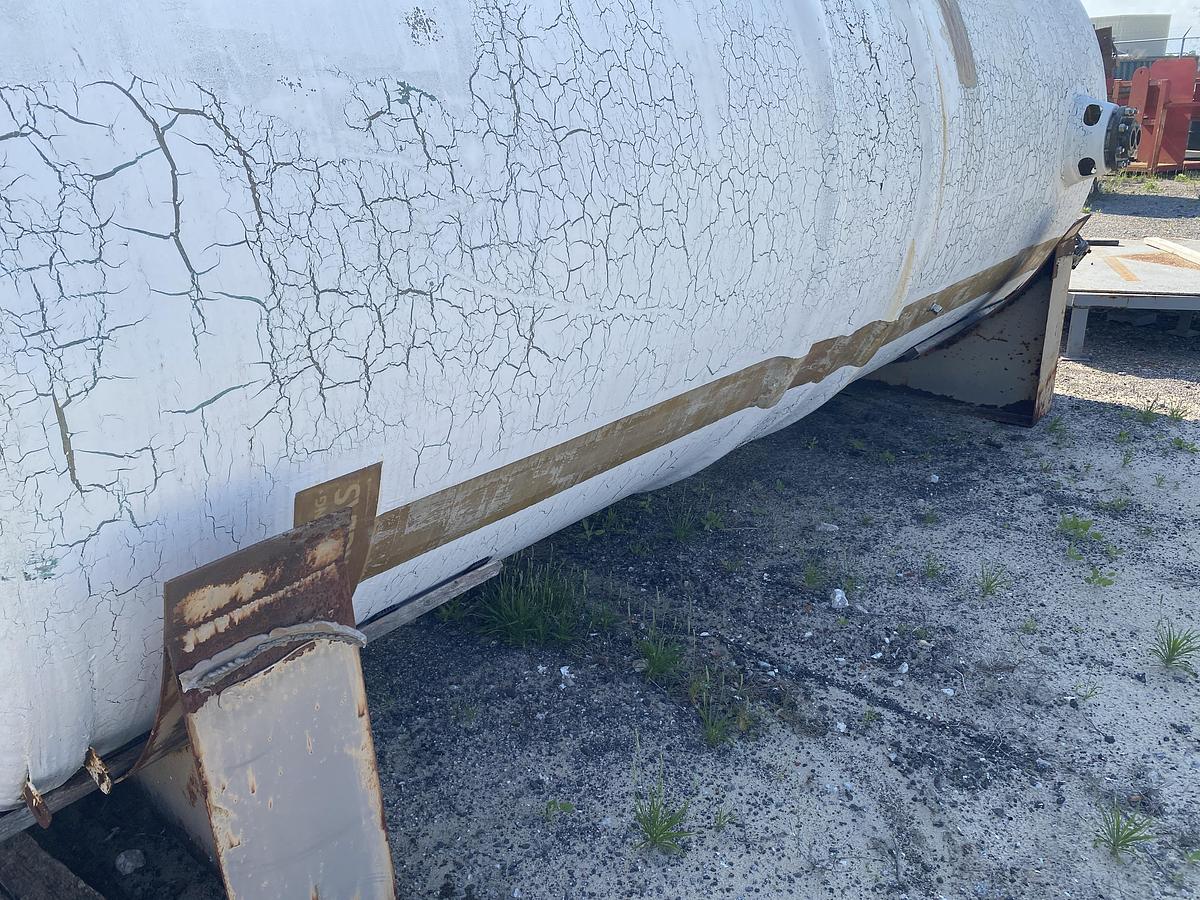

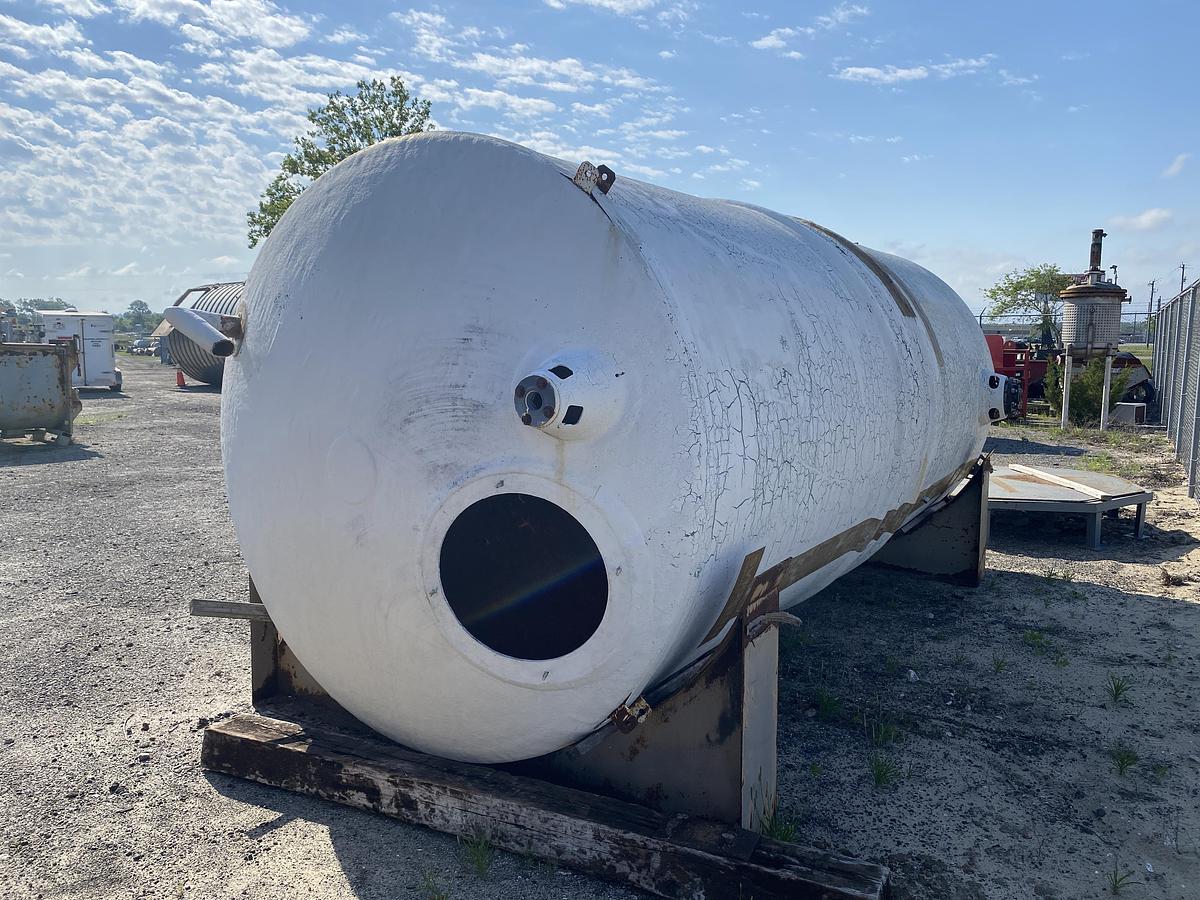

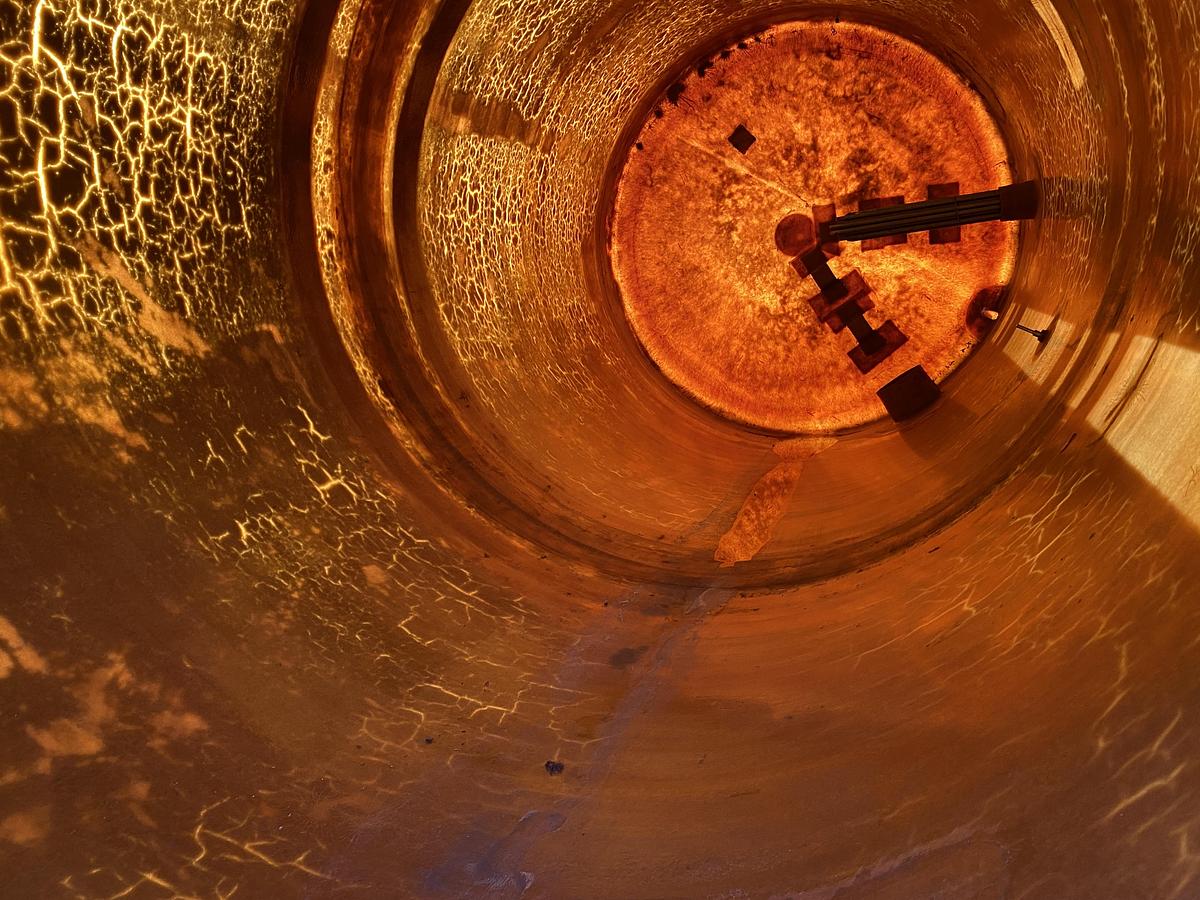

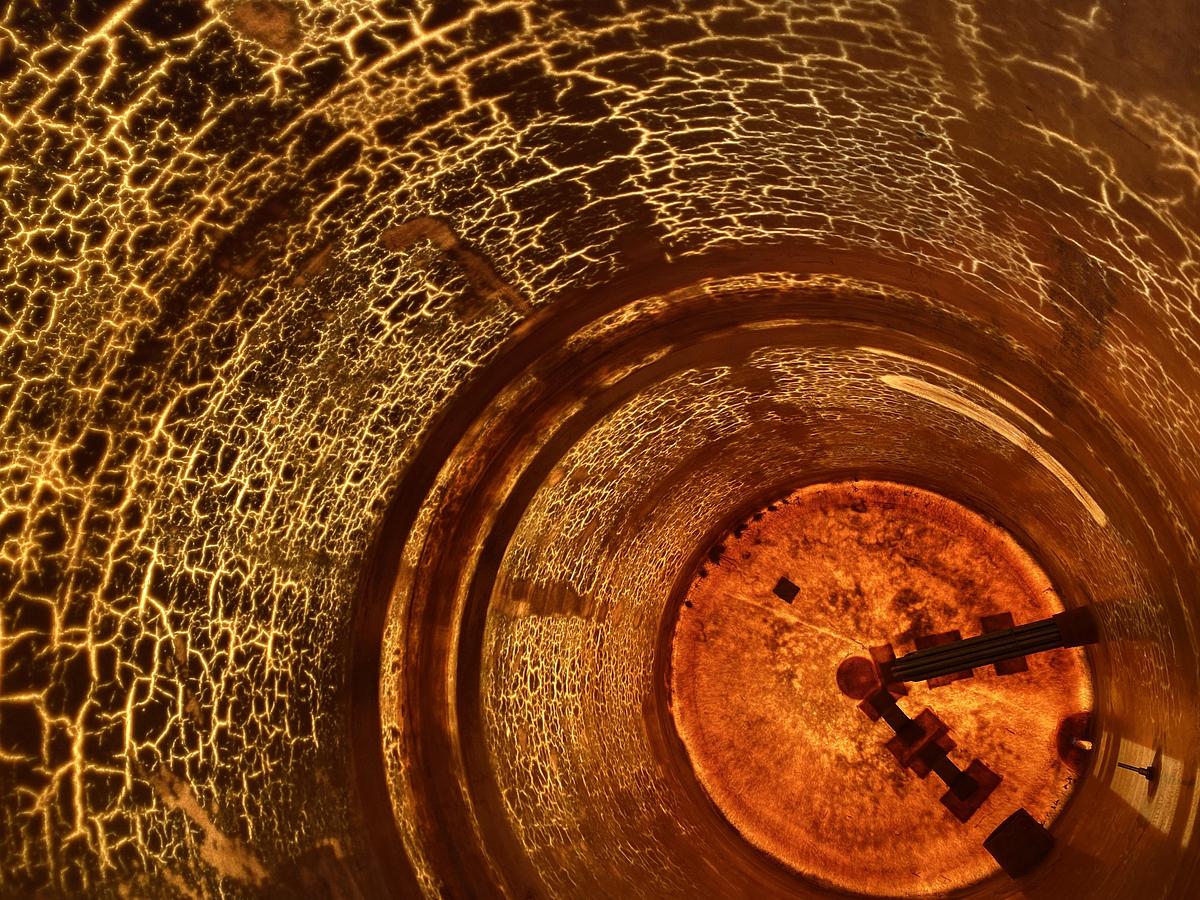

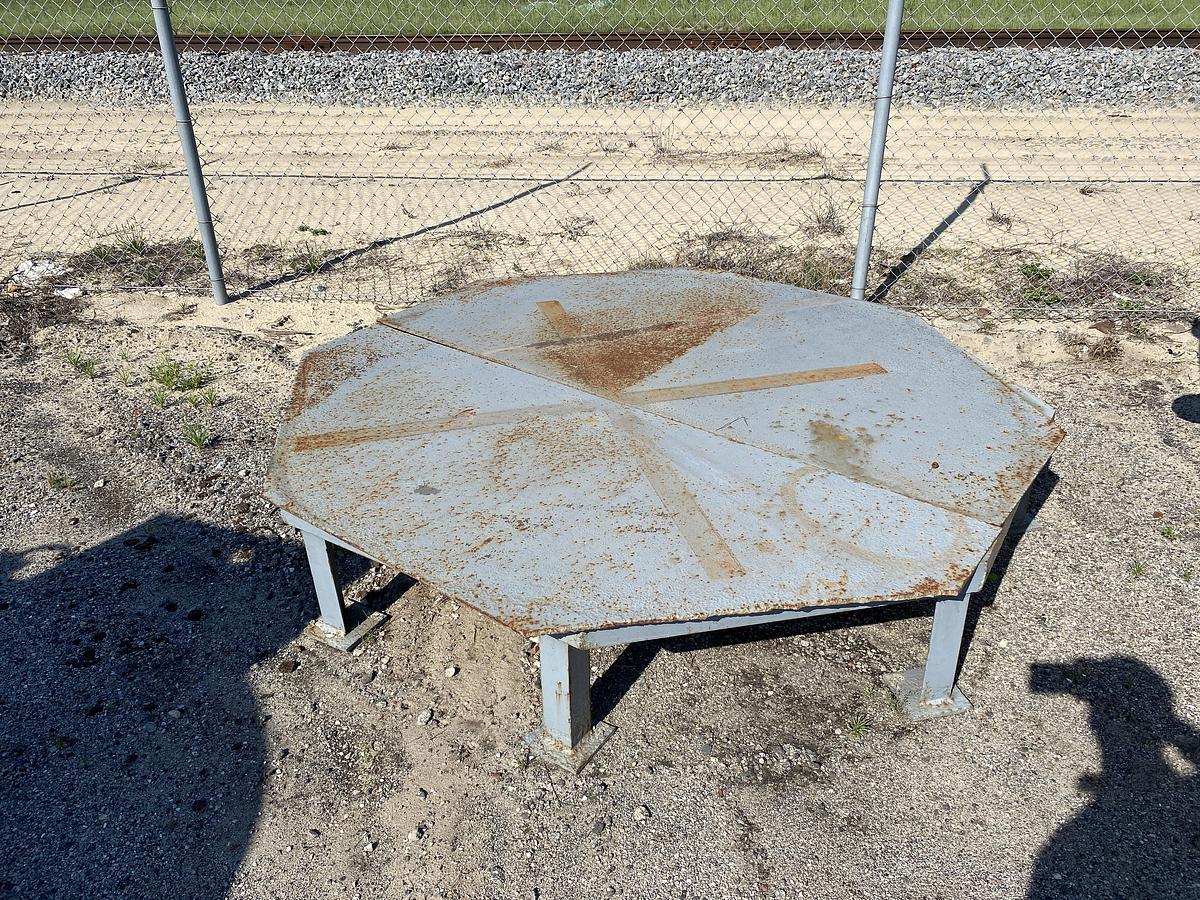

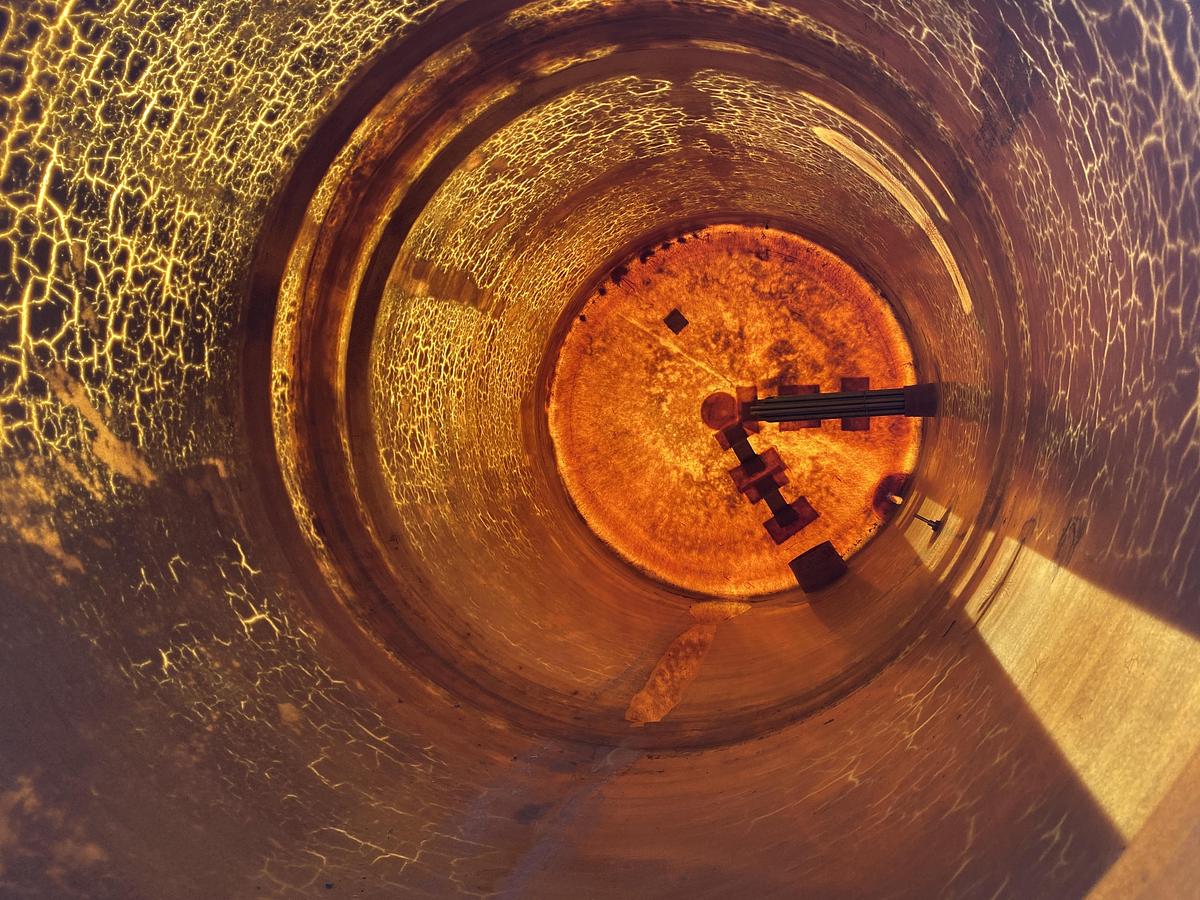

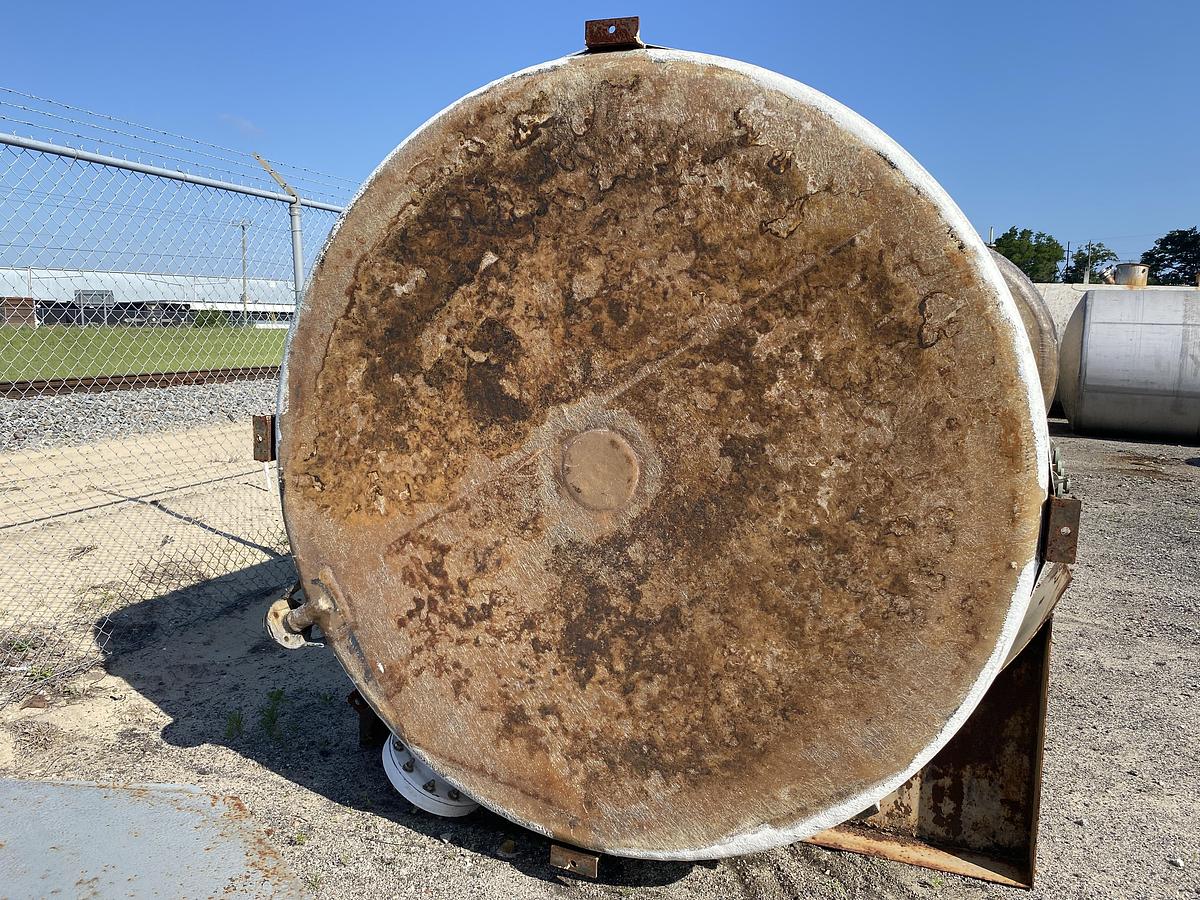

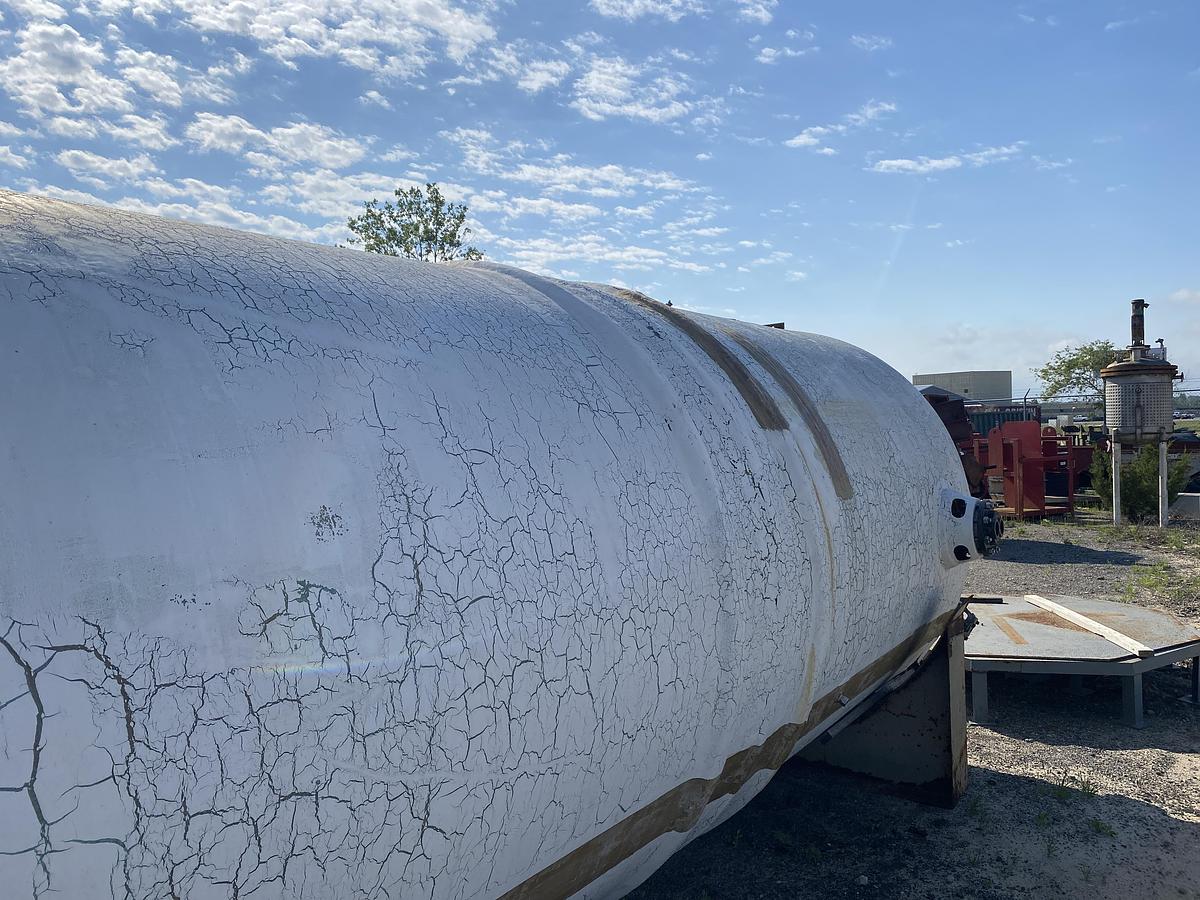

Used Owens Corning 5600 gallon fiberglass vertical storage tank. Model 86MAC. Tank #12374-12361. 90" diameter X 17' high straight side, with 16" high steel pedestal. Dished top, flat bottom with 2" side bottom discharge with NPT connection, located below the bottom line of tank. Top fittings: 22" manway,(1) 2" , and (1) 3" top vent, Has 10" side bottom flanged opening with a cover, side stainless steel thermowell for a temperature probe, and (1) 6" port with an approximately 15 sq ft stainless steel side entering tube bundle., has (26) 3/4" stainless steel tubes with carbon steel flange face with 2" NPT service ports. Previously held 60% Sodium Lauryl Ether Sulfate S.G. 1.2 @ 100 degree F. Max S.G 1.3. FOB: Wilmington, NC

Specifications

ManufacturerOwens Corning
Model96MAC
ConditionUsed
Stock NumberSWIL0523-0001
