Location:Wilmington, NC

orCall 252-378-4154

Description

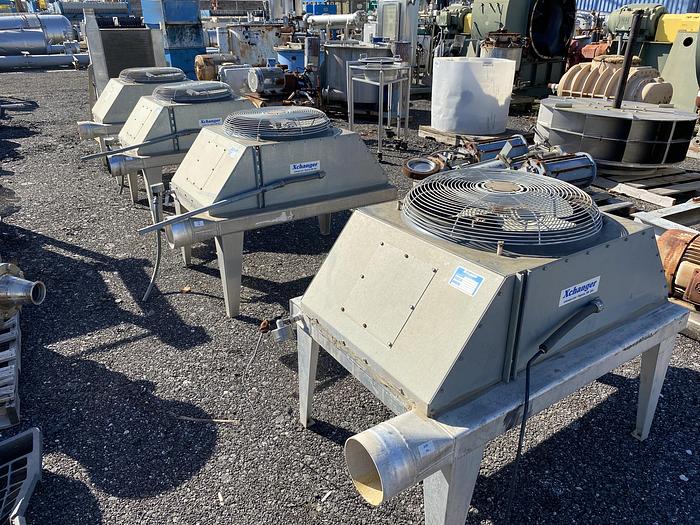

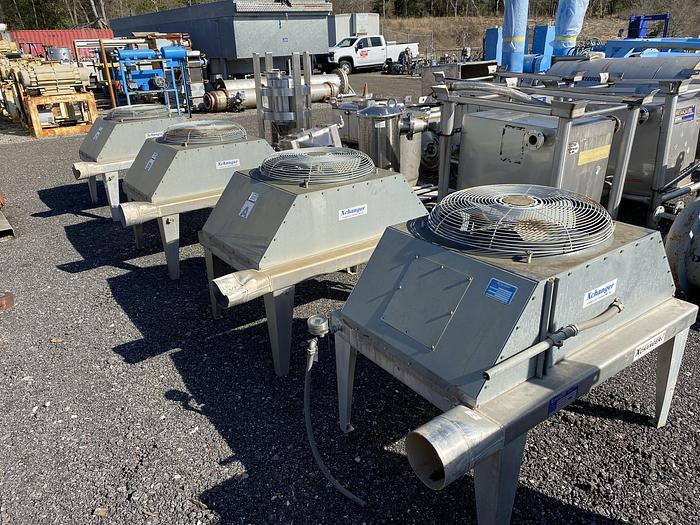

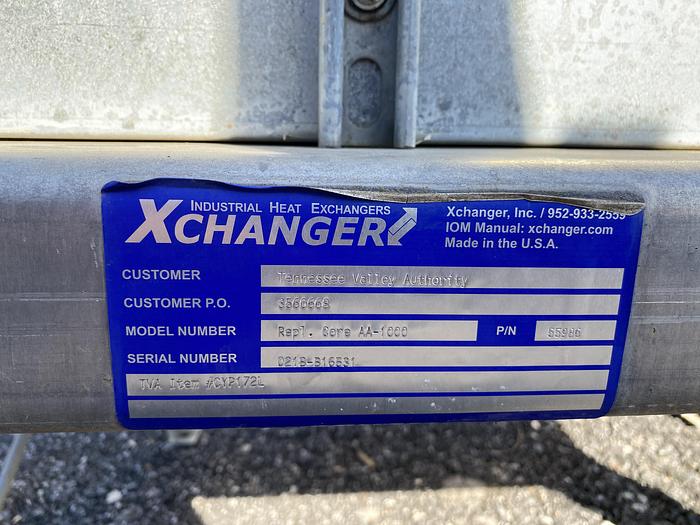

Used Xchanger Model AA-1000 (left Hand) air exchanger. 66" long X 36 5/8" Wide X 42 1/4" tall. Ratings: Process Air 1,135 cu.ft./min, 5,108 #/hr, Temp. In 249 F, Temp out 123 F, Inlet pressure 25.5 #/sq in, Velocity 3,091 ft/min, Pressure loss .25 #/sq in. Ambient Air 5,178 cu. ft./min, 23,303 #/hr, Temp. in 105 F, Temp. out 133 F, Inlet pressure 14.5 #/sq in, Velocity 1,223 ft/min, Pressure loss 0.7 in. water. Total Heat Exchanged 154,445 BTU/hr. Plate-Fin core Aluminum, Exhasut Hood Galvanized Steel, Fan Guard Coated Carbon Steel, Venturi Frame Coated Carbon Steel. Equipped with 24" fan powered by 2HP 3/60/208-230/460 Volt motor rated 1725 RPM. 6" process inlet and outlet. Flow direction Process Air left hand horizontal, Ambient Air vertical up. Weight 250# (4 Available). FOB Wilmington, NC

Specifications

ManufacturerXchanger
ModelAA-1000
Year2010
ConditionUsed
Stock NumberPARA0122-0010
