Used Melter approximately 738 sq ft vertical 316L stainless steel shell and tube heat exchanger

Used Melter approximately 738 sq ft vertical 316L stainless steel shell and tube heat exchanger

Location:Cleveland, TX

orCall 252-378-4154

Description

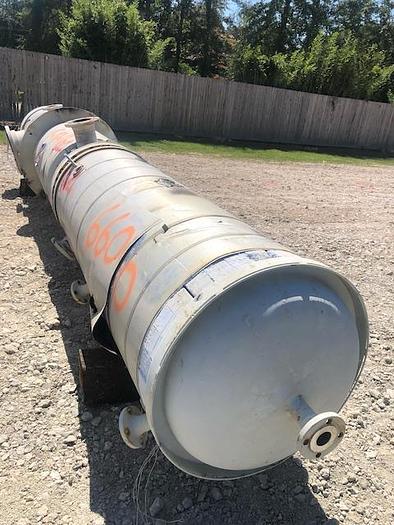

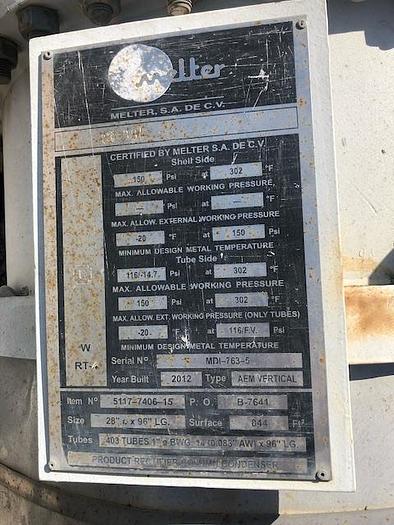

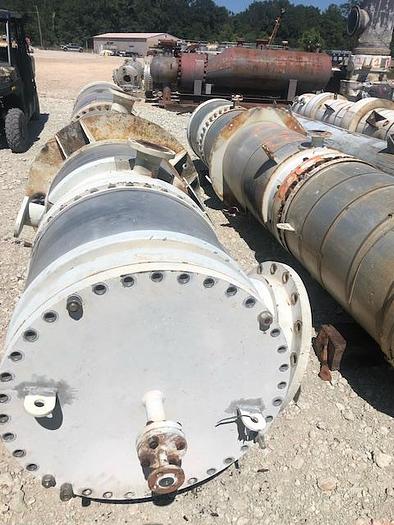

Used Melter approximately 738 sq ft vertical 316L stainless steel shell and tube heat exchanger. 28" diameter X 8' face to face length. Carbon Steel shell rated 150 PSI @ 302 degrees F, (403) 1" 316L stainless steel tubes rated 116/FV@ 302 degrees F. NB# 394, S/N MDI-763-5. (1) 4" and (1) 6" service nozzles. (1) 4" and (1) 18" inlet and outlet on the process side. (4) 2" inlets and outlets for level and (2) 1.5" nozzles for temperature. Built 2012.

Specifications

ManufacturerMelter
Year2012
ConditionUsed
Stock NumberMITI0122-0040
