Used Southern Heat Exchanger approximately 300 sq ft 304L vertical shell and tube heat exchanger

Used Southern Heat Exchanger approximately 300 sq ft 304L vertical shell and tube heat exchanger

Location:Cleveland, TX

orCall 252-378-4154

Description

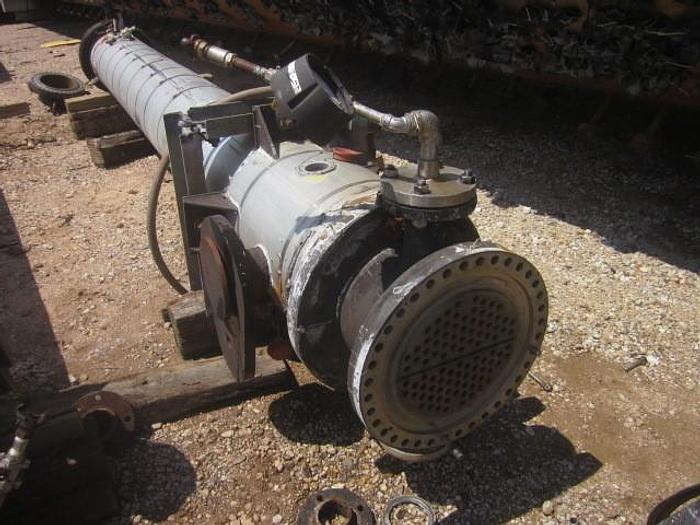

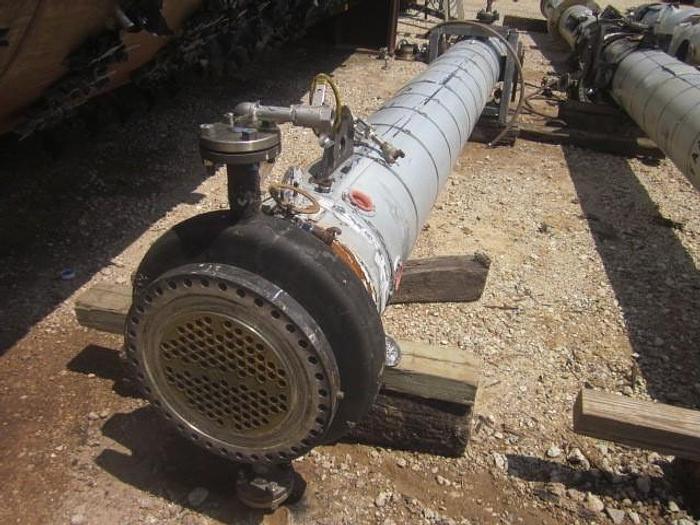

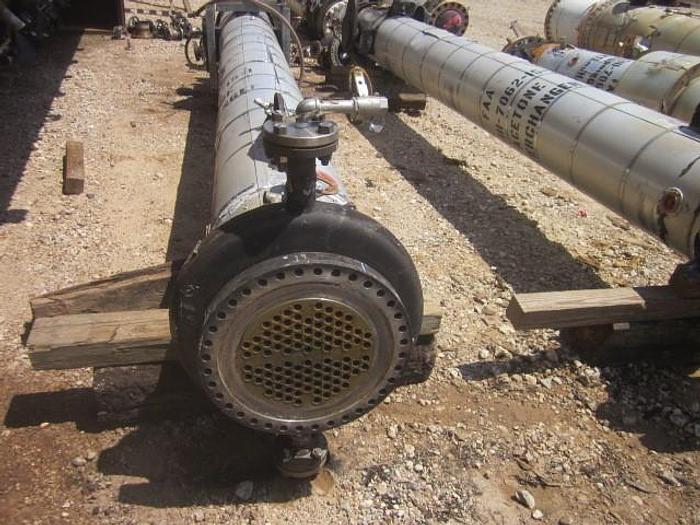

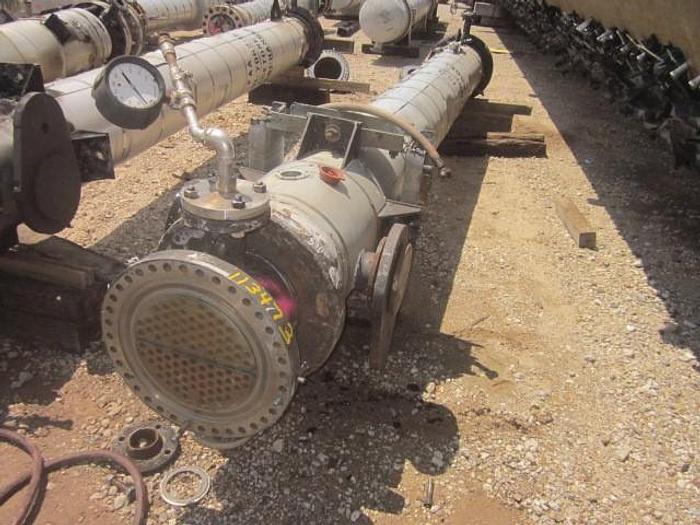

Used Southern Heat Exchanger Corp.approximately 300 sq ft 304L vertical shell and tube heat exchanger. 12' diameter X 16' face to face length. 304L stainless steel shell rated 150 PSI @ -13 to 302 F. (96) 3/4" 304L stainless steel tubes rated 150 @ -13 to 302 F. NB# 5740 S/N 89-28-A. Has expansion joint. 3" process nozzles with 1" vents and drains. 3" service nozzles with 2" vent and drain. Built 1990. Weight 9600#

Specifications

ManufacturerSouthern Heat Exchanger Corp
Year1990
ConditionUsed
Stock NumberMITI0122-0003
