Used Walker Stainless Steel 6500 gallon 304 stainless steel horizontal jacketed dairy tank
Used Walker Stainless Steel 6500 gallon 304 stainless steel horizontal jacketed dairy tank
Location:Wilmington, NC
Description

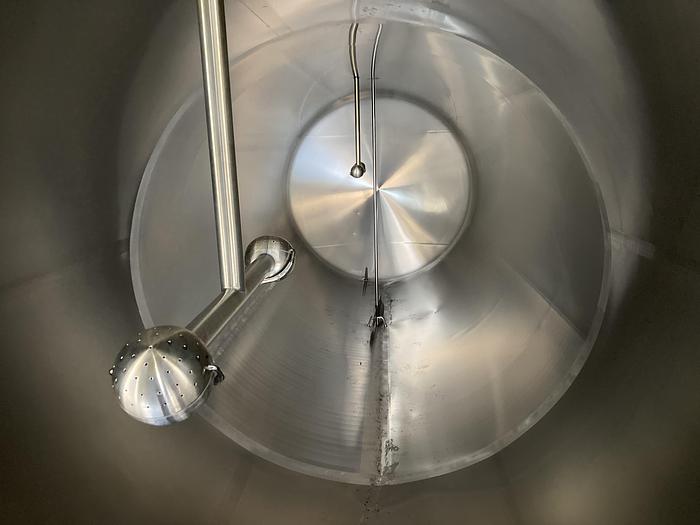

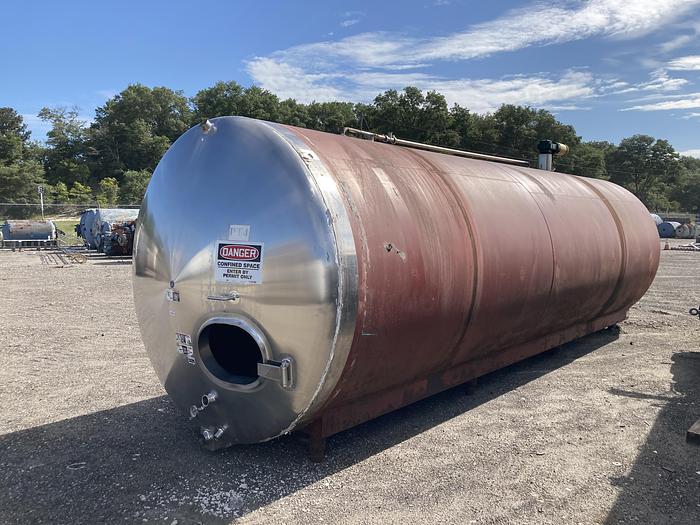

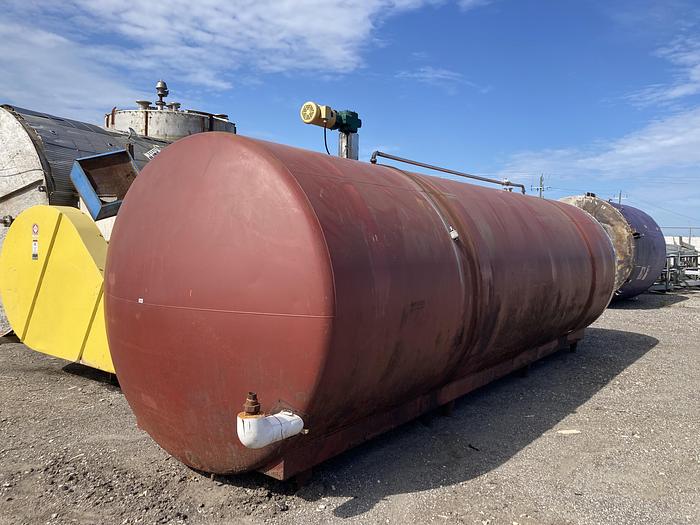

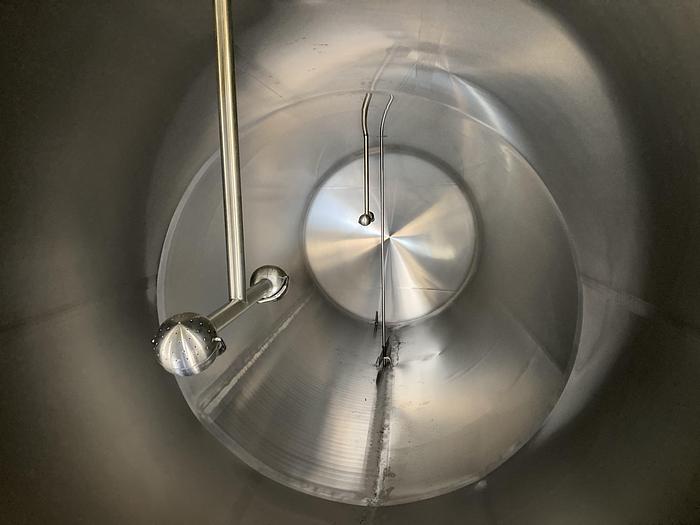

Used Walker Stainless Steel 6500 gallon 304 stainless steel horizontal jacketed dairy tank. 7' diameter ID x 23' long straight side. Model 11549. Has a 48 sq ft volume jacket rated for 150 PSI. Refrigerant R-717. S/N HHT-5865-R. Dished heads. One end has a 20" X 16" "Shadowless" manway, (1) 2.75" sanitary end bottom drain, (1) 2.5" sanitary end inlet, (1) 1.5" end bottom threaded drain, (2) end bottom thermowells and (1) 2.5" end top opening for the vent. Opposite end has a end bottom thermowell. Top has (2) sets of spray balls and a top entering (2) blade 2HP 3/60/230-460 volt agitator drive through a Master-PT gear reducer with 1750 input RPM, 49 output RPM. Covered with 3" thick Styrofoam insulation with carbon steel sheathing. Overall dimensions are 92" diameter X 26' long. Mounted on (8) short legs. FOB: Wilmington, NC
Specifications
Manufacturer | Walker Stainless Steel |
Model | 11549 |
Year | 1994 |
Condition | Used |
Stock Number | SWIL0322-0001 |
