Used Nash Model L2BE45202BY4C006 Liquid Ring vacuum pump system

Sold

Used Nash Model L2BE45202BY4C006 Liquid Ring vacuum pump system

Location:Kentucky

Description

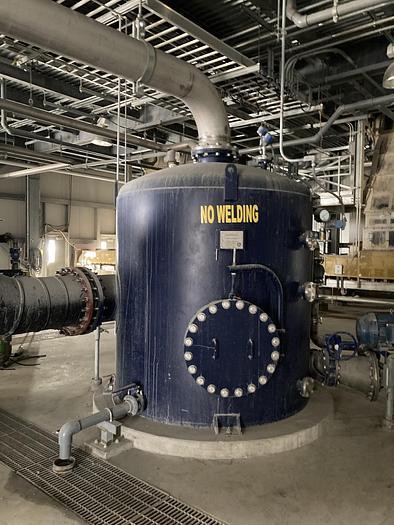

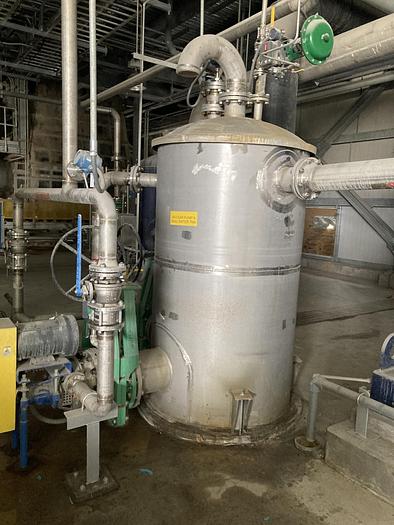

Used Nash Model L2BE45202BY4C006 Liquid Ring vacuum pump system.  Test No. 060024001001.  Pump has a polyisoprene lined body with flexible inlet and discharge connections.  12" flanged inlet and outlet.  Rated 5000 - 9375 CFM, 8750-16,000 cubic meters/hour.  Driven thru Siemens Model NFJ/46150369-00110 drive.  Input 1800 RPM, Output 363.86 RPM.  Powered by WEG W50 400 HP 3/60/4160 volt motor.  Equipped with EnerFab 658 gallon 316.316L stainless steel vertical seal water tank.  4' diameter X 7' high straight side.  Rated ATMOS @ -20 to 200F.  Dished top, flat bottom.  Top fittings: (1) 2", (1) 4", (1) 6", (1) 6" side top, (1) 2" side bottom.  Has (2) 12" side bottom outlets to (2) Carver type 855-OH 1.5 X 9 CD4 pumps powered by 7.5HP 3/60/208-230/460 volt motors.  Also has (1) 2000 gallon Carbon Steel/lined vertical filtrate tank.  7' diameter X 7' high straight side.  Rated 15 PSI @ 140F.  NB# 287.  Dished top, flat bottom.  Top fittings: (1) 18", (1) 2".  24" side bottom manway, (2) 3" side bottom outlets and (2) 10" side bottom outlets to (2) carver Type 855-OH 3 X 9 CD4 pumps powered by WEG W22 30HP 3/60/460 volt motors.  Built 2014.  FOB: Paradise, KY

Specifications

ManufacturerNash
ModelL2BE45202BY4C006
Year2014
ConditionUsed
Stock NumberPARA0121-0008
