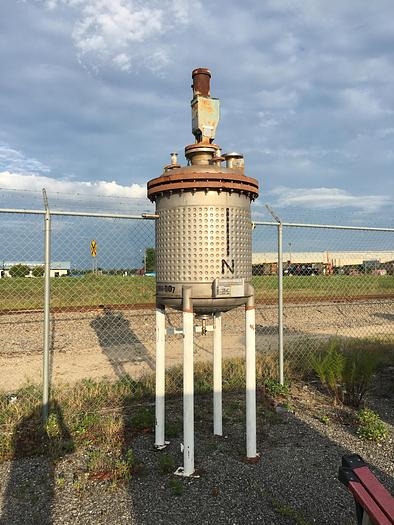

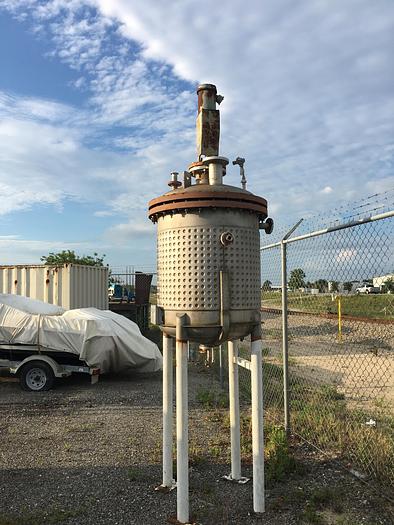

Mueller 200 gallon vertical jacketed stainless steel tank

Mueller 200 gallon vertical jacketed stainless steel tank

Location:Wilmington, NC

orCall 252-378-4154

Description

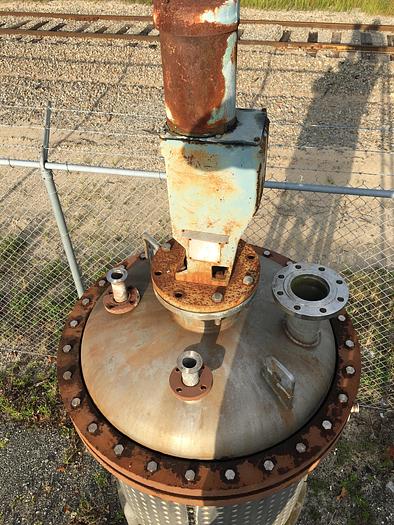

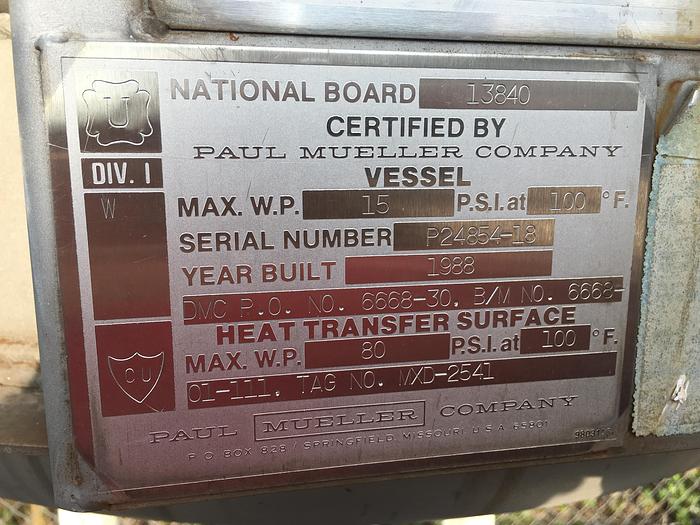

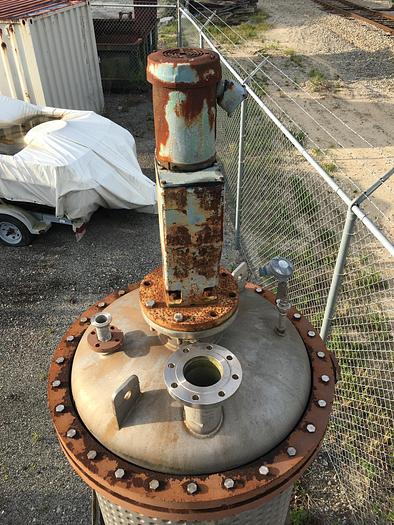

Used Mueller 200 gallon vertical jacketed stainless steel tank.  38"diameter X 48" high straight side.  Internal rated 15 PSI @ 100 degrees F.  Jacket rated 80 PSI @ 100 degrees F.  NB# 13840.  S/N P-24854-18.  Built 1988. Top Fittings: (2) 1 1/2", (1) 4", and (1) 3/4".  3" center bottom drain.  Equipped with Philadelphia Model PMV-01-PTS drive.  Input RPM 1800, output RPM 68, ratio 25.6:1.  Powered by a .5HP motor.  Insulated and covered by aluminum sheathing.  Mounted on Legs.  FOB: Wilmington, NC

Specifications

ManufacturerMueller
Year1988
ConditionUsed
Serial NumberP-24854-18
Stock NumberSWIL2050-0007
