Pfaudler 1000 gallon #5015 glass lined reactor
Pfaudler 1000 gallon #5015 glass lined reactor
Location:Wilmington, NC
orCall 252-378-4154
Description

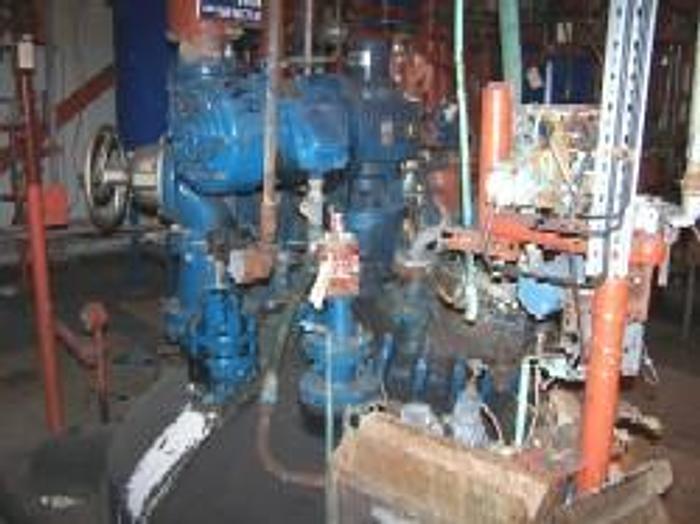

Used Pfaudler 1000 gallon #5015 glass lined reactor model RA-60-1000 HPJCWVA. 60" diameter x 73" straight side. Welded dished heads. Internal rated 100/FV @ -20 to 450 degrees F. 1/2 pipe coil jacket rated 150/150 @ -20 to 450 degrees F. NB# 45921. Equipped with 7.5/3.75 HP 33" span cryo-lock agitator driven through 4 DTW drive. Includes baffle. Fittings top: (1) 30" cover with 12" x 16" manway (2) 2" (4) 4" flanges and (1) 8". Center bottom 3" drain. Lug mounted. Built 1990. FOB: Wilmington, NC
Specifications
Manufacturer | Pfaudler |
Model | RA-60-1000 HPJCWVA |
Year | 1990 |
Condition | Used |
Stock Number | DSM02002-0299 |
