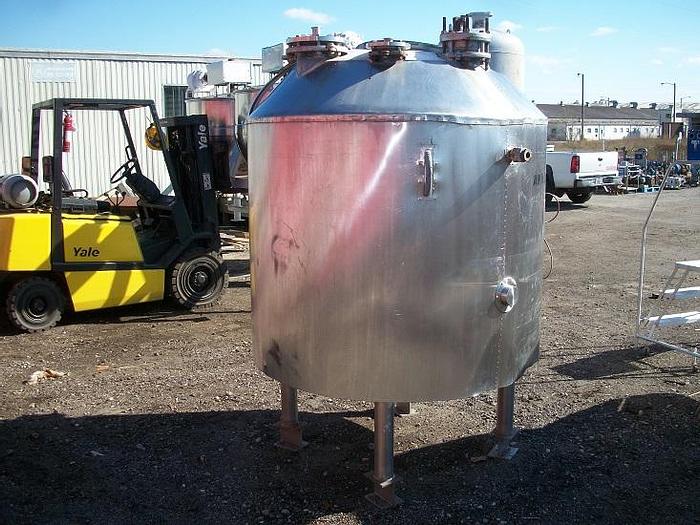

Used Pfaudler 300 gallon glass-lined reactor body

Used Pfaudler 300 gallon glass-lined reactor body

Location:Wilmington, NC

orCall 252-378-4154

Description

Used Pfaudler 300 gallon glass-lined reactor body.  48" diameter X 39" high straight side.  Welded dished heads.  Internal rated 100/FV @ 450 degrees F.  Jacket rated 100 PSI @ 450 degrees F.  Unit built in 1984  MFG# R184-0022, Unit repaired in 1990 MFG# R691-8021.  National Board # 42596.  Glass # 5015.  Top fittings directly on vessel: (2) 3", (2) 4" , and (1) 6".  Top fittings on 24" cover: (1) 12" X 16" manway, (2) 2", and (1) 4" agitator nozzle.  3" center bottom drain.  Unit is insulated and wrapped with stainless steel sheathing.  Unit comes with manway and protection ring (Ring has outer edge glass damage), Metal RTD tipped h-baffle (has glass damage), and drive pedestal.  (Customer will need to provide a agitator, drive and motor) FOB: Wilmington, NC

Specifications

ManufacturerPfaudler
ConditionUsed
Stock NumberAWIL2094-0070
