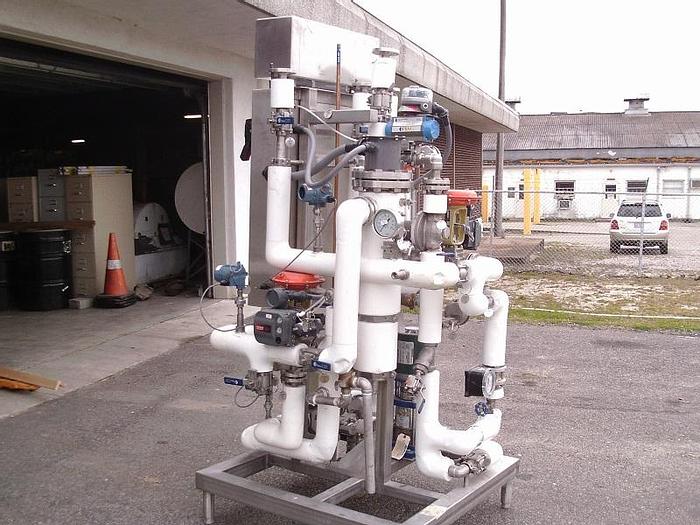

A & B Process Systems High Temperature Circulation System

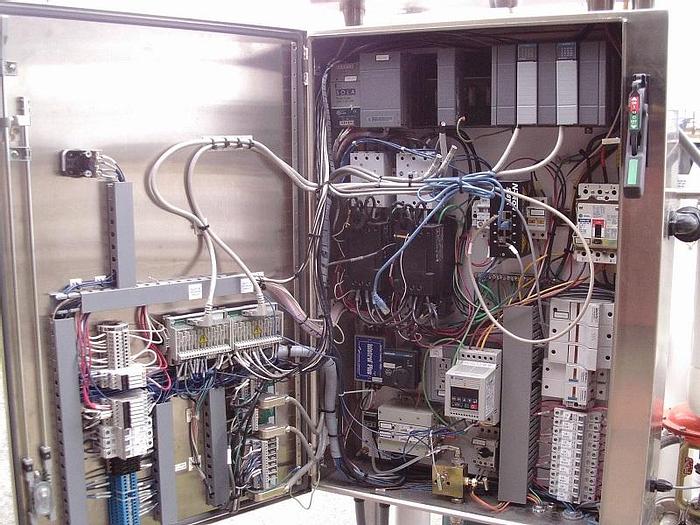

Used A & B Process Systems High Temperature Circulation System.  Skid contains (1) Chromalox catalog # 155-500286-576 40 kW, 3-phase, 480 volt flanged heater, (2) Fisher controls model 32, 1" 316 SS actuated valves with Fieldvues, (1) PBM model PAVBL4535-0075 actuated S/S ball valve, (3) Rosemount model 644HANAXAJ6M5F6Q4C2 temperature indicators, (1) RCM Model 1-83-VDL-15- B2CT flow indicator, and (1) Endress + Hauser Promass E model 40E15-AAASAEAAB4AA mass flow meter.  Fluid is recirculated by a Goulds G&L model 1SVBK3 vertical multi stage 304 S/S pump rated 15 GPM @ 1100' head @ 3450 RPM @ 360 PSI, Temperature 250 F.  Powered by Reliance 3/4 HP 3/60/230-460 volt, 3450 RPM motor.  All product contact surfaces are 304/316 SS.  Unit is skid mounted on SS frame and is equipped with controls and Allen Bradley VFD.

Overall dimensions are 40" X 40" X 84" tall.  FOB: Wilmington, NC
